User Guide
TN-SFP-xxx
Transceiver Modules
Hot-Pluggable SFP LC Optical Transceivers
Digital Diagnostic Function
Class 1 Laser International Safety Standard IEC-60825 Compliant
Compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)
Contents
Introduction . .............................................................................................................................................................. 1
Description ................................................................................................................................................................ 1
Specifications and Standards . .................................................................................................................................... 2
Optical Specifications ................................................................................................................................................ 2
Application: Fiber Connections with SFPs ................................................................................................................. 2
SFP Unpacking ........................................................................................................................................................... 3
SFP Installation .......................................................................................................................................................... 3
Cautions ................................................................................................................................................................ 3
Installing an SFP Module ....................................................................................................................................... 4
Fiber Cable Physical Characteristics . ..................................................................................................................... 5
Connecting Fiber Cables . ....................................................................................................................................... 5
Removing an SFP Module ..................................................................................................................................... 5
Diagnostic Monitoring Interface (DMI) ..................................................................................................................... 6
DDMI (Digital Diagnostics Monitoring Interface) ...................................................................................................... 7
Contact Us ................................................................................................................................................................. 8
For More Information . ............................................................................................................................................... 8
Compliance Information . ........................................................................................................................................... 8
UL Recognized . .................................................................................................................................................... 10
Record of Revisions ................................................................................................................................................. 10
Introduction

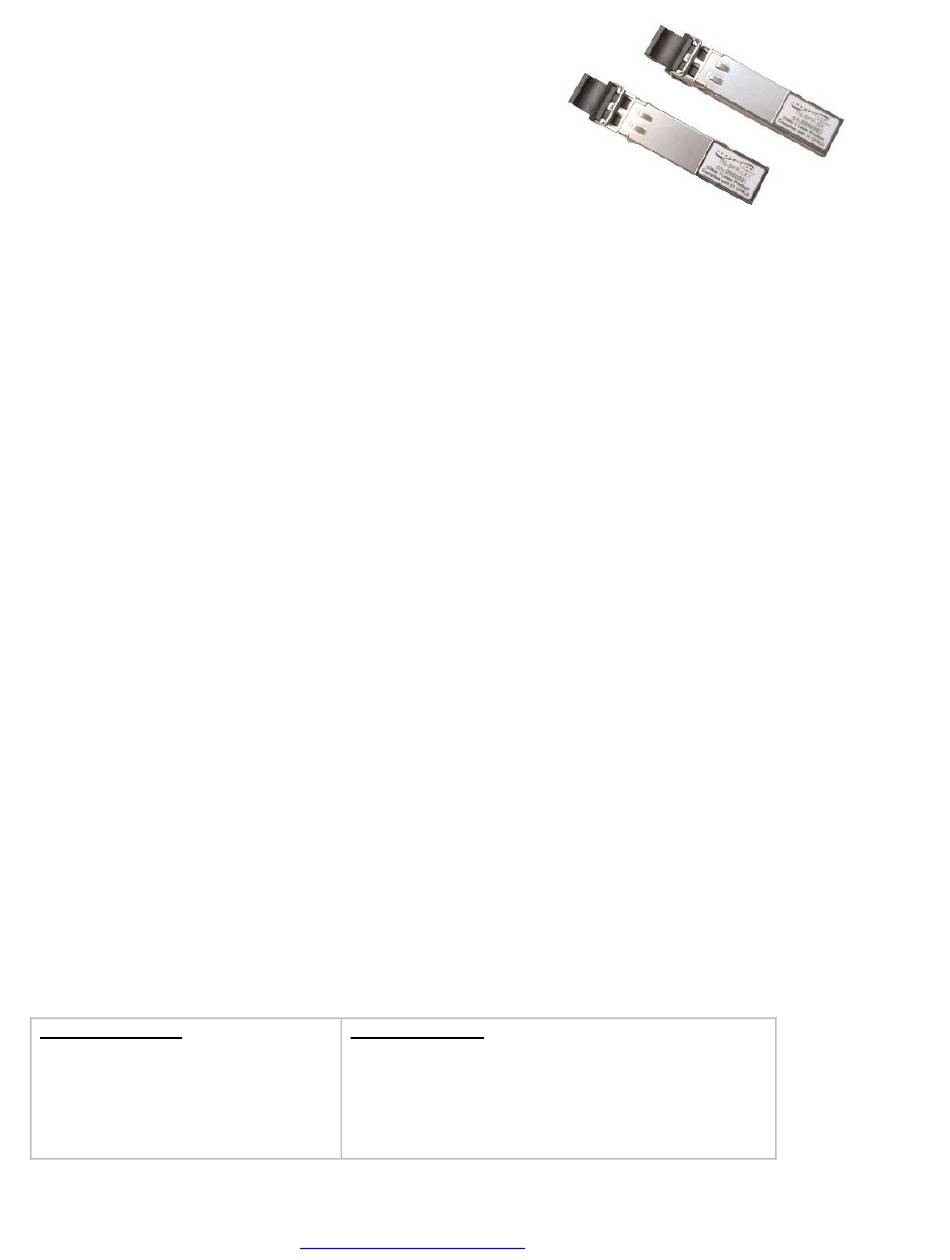

The Transition Networks TN-SFP-xxx series small form factor pluggable (SFP) transceiver modules are designed
to install in any SFP slot, and connect multimode 1000Base-SX or single mode 1000Base-LX fiber-optic cable to
the network through the SFP connector. The TN-SFPxxx transceivers are designed for bi-directional, serial-optical
data communications such as Gigabit Ethernet and fiber channel at speeds up to 4.25 Gbps.
Description
All of Transition's SFPs and XFPs are compliant with the Multi-Sourcing Agreement (MSA) ensuring
interoperability with all other MSA compliant networking devices.
Simplex LC SFPs
100BASE-FX/OC-3
OC-12/STM-4
1000BASE-BX
1000BASE-SX
1000BASE-LX
100/1000Base-LX dual speed
33477 Rev. F
Duplex LC SFPs
100BASE-FX/OC-3
OC-12/STM-4
1000BASE-SX
1000BASE-LX
OC-48/STM-16/ Fibre Channel 1x/2x/4x/1000BASE-X
Fibre Channel 1x/2x/4x/1000BASE-X Copper SFP
https://www.transition.com/
Page 1 of 10
Advertisement
Table of Contents
Related Manuals for Transition TN-SFP Series
Summary of Contents for Transition TN-SFP Series
-
Page 1: Table Of Contents
Cautions ................................ 3 Installing an SFP Module ............................ 4 Fiber Cable Physical Characteristics ........................ 5 Connecting Fiber Cables ............................ 5 Removing an SFP Module ............................. 5 Diagnostic Monitoring Interface (DMI) ........................ 6 DDMI (Digital Diagnostics Monitoring Interface) ...................... 7 Contact Us ................................. 8 For More Information .............................. 8 Compliance Information ............................ 8 UL Recognized .............................. 10 Record of Revisions .............................. 10 Introduction The Transition Networks TN‐SFP‐xxx series small form factor pluggable (SFP) transceiver modules are designed to install in any SFP slot, and connect multimode 1000Base‐SX or single mode 1000Base‐LX fiber‐optic cable to the network through the SFP connector. The TN‐SFPxxx transceivers are designed for bi‐directional, serial‐optical data communications such as Gigabit Ethernet and fiber channel at speeds up to 4.25 Gbps. Description All of Transition’s SFPs and XFPs are compliant with the Multi‐Sourcing Agreement (MSA) ensuring interoperability with all other MSA compliant networking devices. Simplex LC SFPs Duplex LC SFPs 100BASE-FX/OC-3 100BASE-FX/OC-3 OC-12/STM-4 OC-12/STM-4... -
Page 2: Specifications And Standards
Transition Networks TN‐SFP‐xxx User Guide Specifications and Standards The TN‐SFP‐xxx was designed to meet these standards and specifications: IEEE 802.3 2003; ANSI X3.297-1997 Standards IEC-60825; FDA 21; CFR 1040.10 and 1040.11 Compliance Width: 0.52" [13 mm] x Depth: 2.18" [55 mm] x Height: 0.33" [8 mm] Dimensions 3.3V... -
Page 3: Sfp Unpacking
Each port must match the wavelength specifications on the other end of the cable, and the cable must not exceed the specified cable length for reliable communications. Note that the NM2-FXS-2230-SFP-01 SFP transceiver is sold separately and also as a part of Transition Networks’ NM2-FXS-2230-SFP-01 M.2 100-Base-FX Ethernet Fiber NIC. See the NM2-FXS-2230-SFP-01 manual for more information on the SFP bundled with the M.2 NIC. -
Page 4: Installing An Sfp Module
Transition Networks TN‐SFP‐xxx User Guide Installing an SFP Module 1. Attach an ESD-preventive wrist strap to your wrist and to the ESD ground connector or a bare metal surface on your chassis. 2. Remove the SFP transceiver module from its protective packaging. Note: Do not remove the optical bore dust plugs until directed to do so in a later procedure. -
Page 5: Fiber Cable Physical Characteristics
Transition Networks TN‐SFP‐xxx User Guide Fiber Cable Physical Characteristics The fiber cable physical characteristics must meet or exceed IEEE 802.3ae specifications: Single mode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 100/140, 85/140, 50/125 μm... -
Page 6: Diagnostic Monitoring Interface (Dmi)
SFP Transceiver Modules. For further information, see the help option on the CPSMM-xxx, SNMP agent, or Transition Networks Focal Point or ION System GUI. Note: This feature is not available on all devices and may vary between products. See the related manual for specific information. -
Page 7: Ddmi (Digital Diagnostics Monitoring Interface)
The default is 0 uW. The range is 0 - 65,535 uW. The device’s port number. Port The SFP vendor’s name (e.g., Transition). Vendor The SFP vendor Part number provided by the SFP vendor (TN-10GSFP-SR). Part Number The SFP Vendor Serial number provided by the SFP vendor (e.g., 8672105). -
Page 8: Contact Us
Address Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. For More Information Technical information in this document is subject to change without notice. For more information see Transition Networks Optical Devices webpage. Compliance Information Class I Laser Compliance This product has been tested and found to comply with the limits for FDA Class I laser for IEC60825, EN60825, and 21CFR1040 specifications. - Page 9 In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
-
Page 10: Ul Recognized
Trademarks: All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions: © 2003-2019 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks. 33477 Rev. F ...
