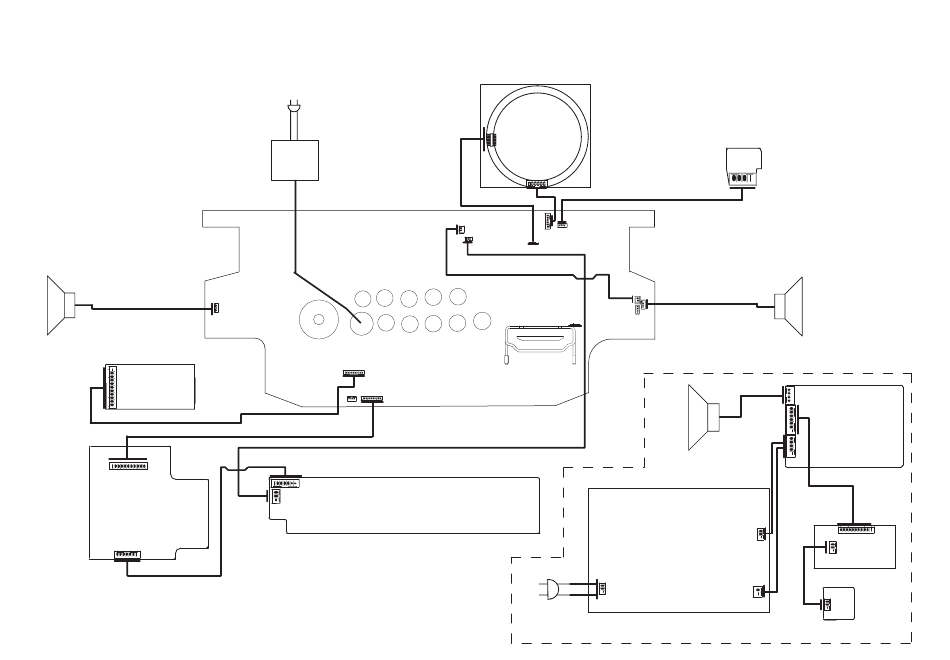

Wiring Diagram
SPEAKER-R
CN503
RADIO TRANSMIT BOARD
C024_TX_V1.3
CN302
VFD DISPLAY BOARD
CN303
4-2
AC IN
POWER
SWITCHING
ADAPTER
DC IN
DVD DECODER BOARD(MAIN BOARD)
BUTTON BOARD
DVD
MECHANISM
SUBWOOFER
POWER BOARD
AC IN
SUBWOOFER BOX
4-2
USB BOARD
GND USBP USBM +5V
SPEAKER-L
SUBWOOFER AMP BOARD
RADIO RECEIVE
BOARD
C001SWF_RX_PCB_V7.1
LED
BOARD
