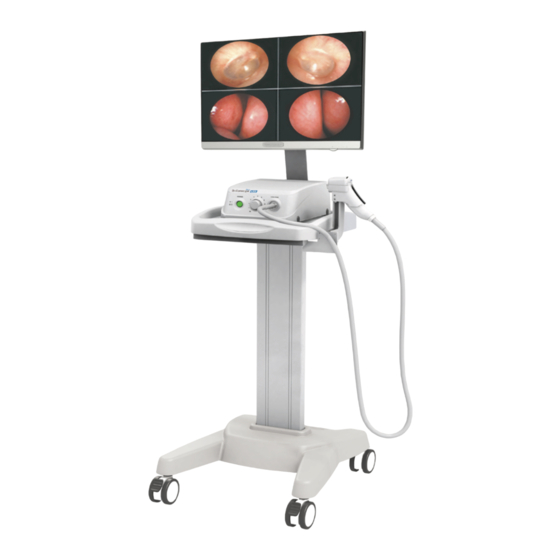

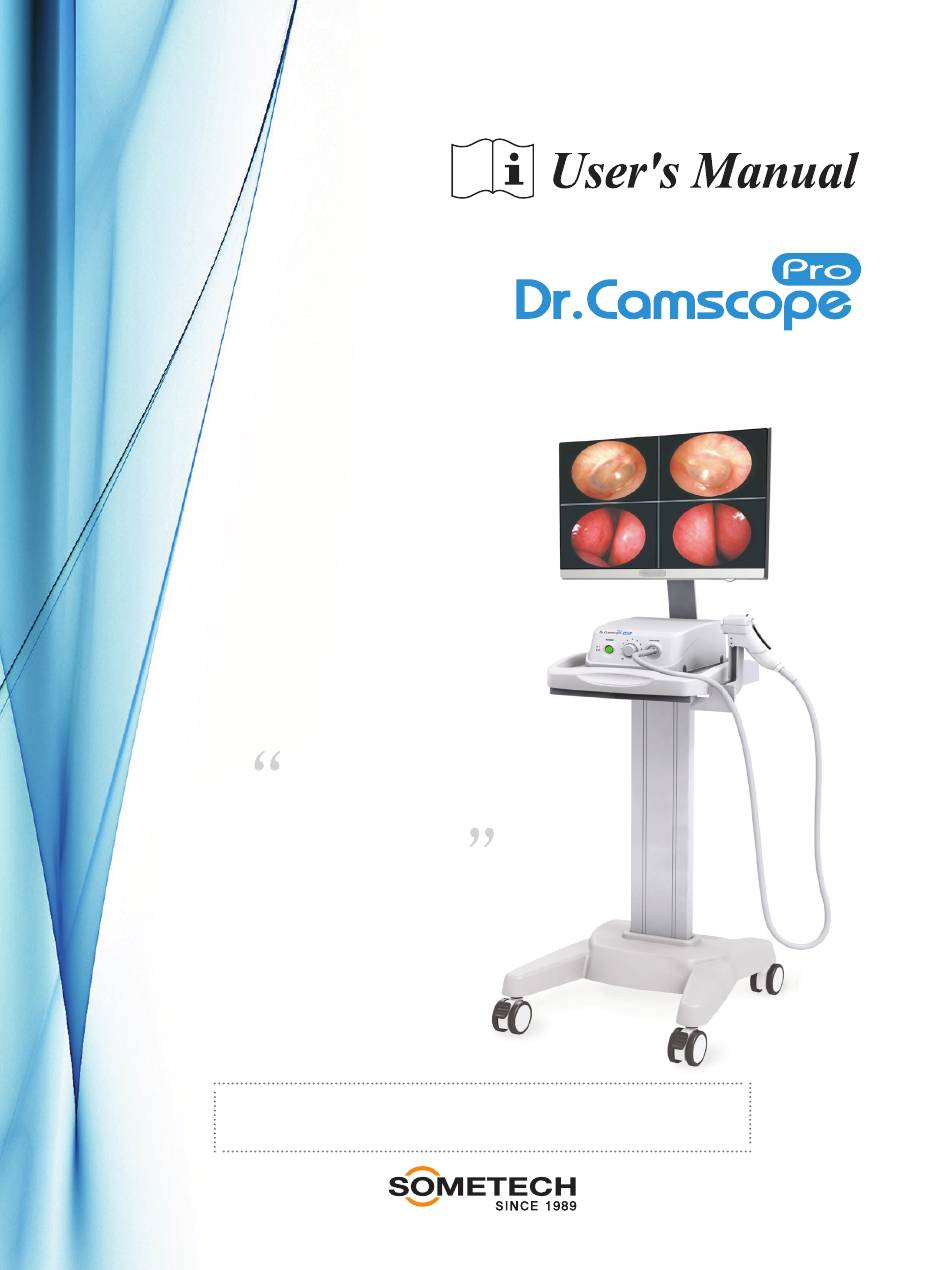

- Page 1 Medical Camera System Optimizing diagnostic camera system Users should be fully aware of operation method and conditions that are described in this User Manual prior to initial use.
- Page 3 Medical Camera System Users should be fully aware of operation method and conditions that are described in this User Manual prior to initial use.
-
Page 4: Table Of Contents
Medical camera system resulting in more accurate dignosis. Dr. Camscope pro, which is fitted with customer’s demand like clear image and improved function, will increase patient’s trust. Also, this make clinic’s competitiveness higher. Please read this manual carefully and be well informed it before using Dr. -
Page 5: Index
Index 4. Medical Camera(Option) - Video Colposcope (DCS Pro-102) - Video Rectoscope (DCS Pro-103R) - Video Endoscopy System (DCS Pro-103E) - Video Otoscope (DCS Pro-104T) - Video Dermascope (DCS Pro-105) - Video Irisscope (DCS Pro-106) - Video Irisscope (DCS Pro-108) 5. -
Page 6: Safety Precaution
1. Safety Precaution... - Page 7 Warning 1. Do not install the device near wet place and avoid water. (It may cause physical damage by electric shock.) 2. Do not directly stare at the light source with bare eyes. (It may cause disorder of eyesight after long term disposure.) Caution 1.
-
Page 8: Name & Function For Each Part
2. Name & Function for Each Part Front Side of Main unit ③ ① ② ① Power switch : Power ON/OFF button for light source ② Light intensity knob : Light quantity can be adjusted by turning this knob ③ Camera probe connection : Part used to connect camera probe to the Main unit... -
Page 9: Camera
3. System Composition & Installation Back Side of Main unit ⑤ ⑥ ① ② ③ ④ ① Fan : Reduces heat inside the product ② PC : When the product is connected to a PC using a USB AM-BM cable and Slave Mode is selected in the setting, storage device inside the product is recognized as a removable disk on the PC. -
Page 10: System Composition & Installation
3. System Composition & Installation (1) System Composition Main Unit Camera Probe Foot Switch Power Cable SD card (32GB) USB AM-BM Cable HDMI to DVI Cable HDMI to HDMI Cable (Option) (2) Camera Probe Connection - Insert the camera cable into the position marked as‘CAMERA PROBE’on the Main unit, aligning the direction to fit the shape. -
Page 11: Connections On The Back Of The Main Unit
3. System Composition & Installation (3) Connections on the Back of the Main unit - Connect a power cord to ⑤ AC in terminal on the back of the Main unit to connect AC power. - Use an HDMI cable to connect ④ HDMI output terminal on the back of the Main unit to HDMI input terminal of the monitor. - Page 12 4. Medical camera(Option) (1) DCS - 102 : Obstetrics, Gynecology : Uterine cervix can be diagnosed using detailed image. ① ① Plastic Ring Cap : Angle of light is reduced using optic fiber to focus light onto the object. There are two types of ring cap, one attached with a green filter and one without.
- Page 13 4. Medical camera(Option) (3) DCS - 103E : Endoscopes The coupler is compatible with existing Rigid Endoscope (Karl Storz, Stryker, Wolf, Olympus etc) and easy to insert and detach using Lever. ▶ lens ▶Coupler (Endoscope) f = 18.5mm (4) DCS - 104T) : Otolaryngology, Family medicine, Pediatric Available to diagnose tympanic membrane, external ear and middle ear at the same time with clear im- ages and monitor inferior / middle turbinate, tonsil,...
- Page 14 4. Medical camera(Option) (5) DCS - 105 : Dermatology, Plastic Surgery : Available to diagnose hair, hair cuticle, keratin, skin pore, skin type, capillary and wrinkle etc. Cap & Lens Lens X 450 X 100 X100 X450 ▶ ▶ ▶ ▶...
- Page 15 (6) DCS - 106 : Iris diagnosis : Available to diagnose hair, hair roots, hair cuticle, hair follicle, keratin, skin pore, skin type, capillary and wrinkle etc. Sometech designed this cap in order to prevent bad effect on patients eyes with ergonomic design.
-
Page 16: Precautions For Use
5. Precautions for Use Be careful about the following matters during installation of the machine. Install this product in a place without moisture. If liquid enters into the equipment, the user can experience physical injury from electric shock. Install this product in a place that does not have adverse effect on the product such as excessively high humidity or temperature, magnetic force, vibration, impact, direct sunlight, dust and sulfur (place appropriate for electronic devices). - Page 17 5. Precautions for Use 3) Follow prescriptions and instructions of doctor. * This product is not limited to specific users, but make sure to use it as instructed by a medical specialist. 4) Understand the User Manual. 5) Be careful not to exceed time required for diagnosis and surgery. 6) Make sure to check abnormalities in the camera and patient.
- Page 18 Button Function (Live) Function (Menu) Up ▲ Zoom In Move to previous screen Down ▼ Zoom Out Load menu selection screen Left ◀ Capture Move to previous item Right ▶ Check captured image Move to next item If pressed for short : Enter gallery Select ⊙...
-
Page 19: Method Of Use
6. Method of Use (GALLERY) GALLERY Captured images can be found here. ③ Checkbox 161209. 3133406. jpg 161209. 3133406. jpg 161209. 3133406. jpg 161209. 3133406. jpg ① Thumbnail 161209. 3133406. jpg 161209. 3133406. jpg 161209. 3133406. jpg 161209. 3133406. jpg 161209. - Page 20 6. Method of Use (GALLERY) How to See Recent Capture Screen · Press ▶ of the five-way button to display recent capture screen. Press left / right button to move the image. · Press ▲ button to return to the live screen. How to Open GALLERY Menu ·...
-
Page 21: Video Source
6. Method of Use (VIDEO SOURCE) VIDEO SOURCE This menu allows the user to change video setting. < VIDEO SOURCE > ① Use the five-way button of the camera to position the cursor on VIDEO SOURCE on the bottom of the screen. -
Page 22: Conversion
6. Method of Use (CONVERSION) CONVERSION Current screen is changed to flip / mirror / negative / gray scale. < CONVERSION > ·NORMAL : The screen appears as is. ·ROTATION : The screen is rotated. ·MIRROR : The screen is rotated. ·FLIP : The screen is reflected vertically. -
Page 23: White Balance (W/B)
6. Method of Use (White Balance (W/B)) White Balance (W/B) White balance of the screen is adjusted automatically / manually. < WHITE BALANCE (W/B) > ·PUSH-SET White balance is adjusted automatically. Place a white paper in front of the camera and press PUSH-SET button to adjust white balance. -
Page 24: Setting
6. Method of Use (SETTING) SETTING System setting is changed. < SETTING > Storage space of the product can be checked. Storage space of the product can be checked by connecting USB-B port on the back of the product to a PC. (Refer to page 9) ※... -
Page 25: Management After Use
7. Management After Use 1) Management after use ① After using the product, turn OFF power of each device according to given order. ② Wipe the Main unit and camera parts that contacted human skin using alcohol and dry them for future use. -
Page 26: Specifications
9. Specifications DCS Pro Specifications Width(209mm) x Depth(250mm) x Height (101mm) Dimension FULL-HD Live Image (16:9) Comparison image USB2.0 PC Slave Mode Image adjustment - Brightness, Sharpness, Contrast, Gamma, Exposure Functions - Image Conversion - Selectable color mode(User 1/2/3/Default) - Storaged Image File Play - Delete File - System Time setting Camera Resolution... - Page 27 3. Even during the warranty period, a service fee is imposed to repair matters that correspond to paid repair service. 4. This warranty cannot be reissued. Body insertion type Company Name SOMETECH.Inc Product Name medical camera Model Name Dr.Camscope Pro Shipment Date Manufacture No.
- Page 28 Version 3.5.2 Printed on May, 2018 Medical Camera System SOMETECH INC. 1201ho, 61, Digital-ro 26gil, Guro-gu, Seoul, Korea (Ace High-end Tower Ⅱ, Guro-dong) TEL: +82-2-2025-6600 FAX: +82-2-869-1005 www.sometech.com...
