Summary of Contents for Cohda Wireless MK5 RSU
- Page 1 MK2 / MK3 ASD Quick Start (Tablet / Mobile Phone) MK5 User Manual – Annex A RSU Quick Start Version: 0.1 Cohda Wireless Pty Ltd Confidential Information...

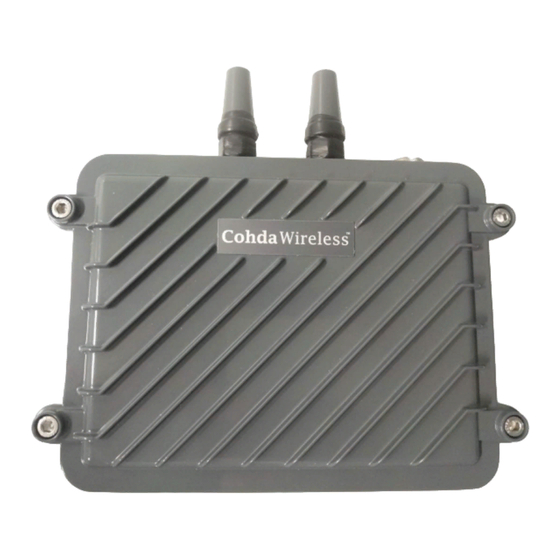

- Page 2 Unpack the MK5 RSU / RSU Kit Following items are included in the MK5 RSU shipment. GNSS Antenna *DSRC Antenna MK5 RSU (*Bundled with RSU Kit) *Pole Mount Bracket *Stainless Steel Straps *Self-Fusing and screws Rubber Tape IP67 Ethernet Mating...
- Page 3 Connecting MK5 RSU Kit Connect GNSS and DSRC antennas. Wrap the N-connector and antenna joints with provide Self-Fusing Rubber Tape to prevent water intrusion. -Cut a small length (10cm) of Self-Fusing tape. -Remove backing film. -Begin wrapping Self-Fusing tape around the N-connector and antenna joint. Stretch tape to 300% and wrap it spirally around the object with a 50% overlap.
- Page 4 Construct Ethernet using T-568B pin assignment. The MK5 RSU can only be powered through Ethernet port, it supports either Mode A (Endspan) or Mode B (Midspan). Mounting bracket is attached to RSU by default. Both vertical and horizontal mounting are supported.
- Page 5 Link to Documentation and Software Support Please register at Cohda Wireless Support Website It can be accessed in two ways: Directly via https://support.cohdawireless.com • Through “Customer Support” Cohda Wireless website • www.cohdawireless.com On the signup page that opens, enter your name and email address in order to register for Support and access to technical documentation.
