Summary of Contents for EAE MD100
-

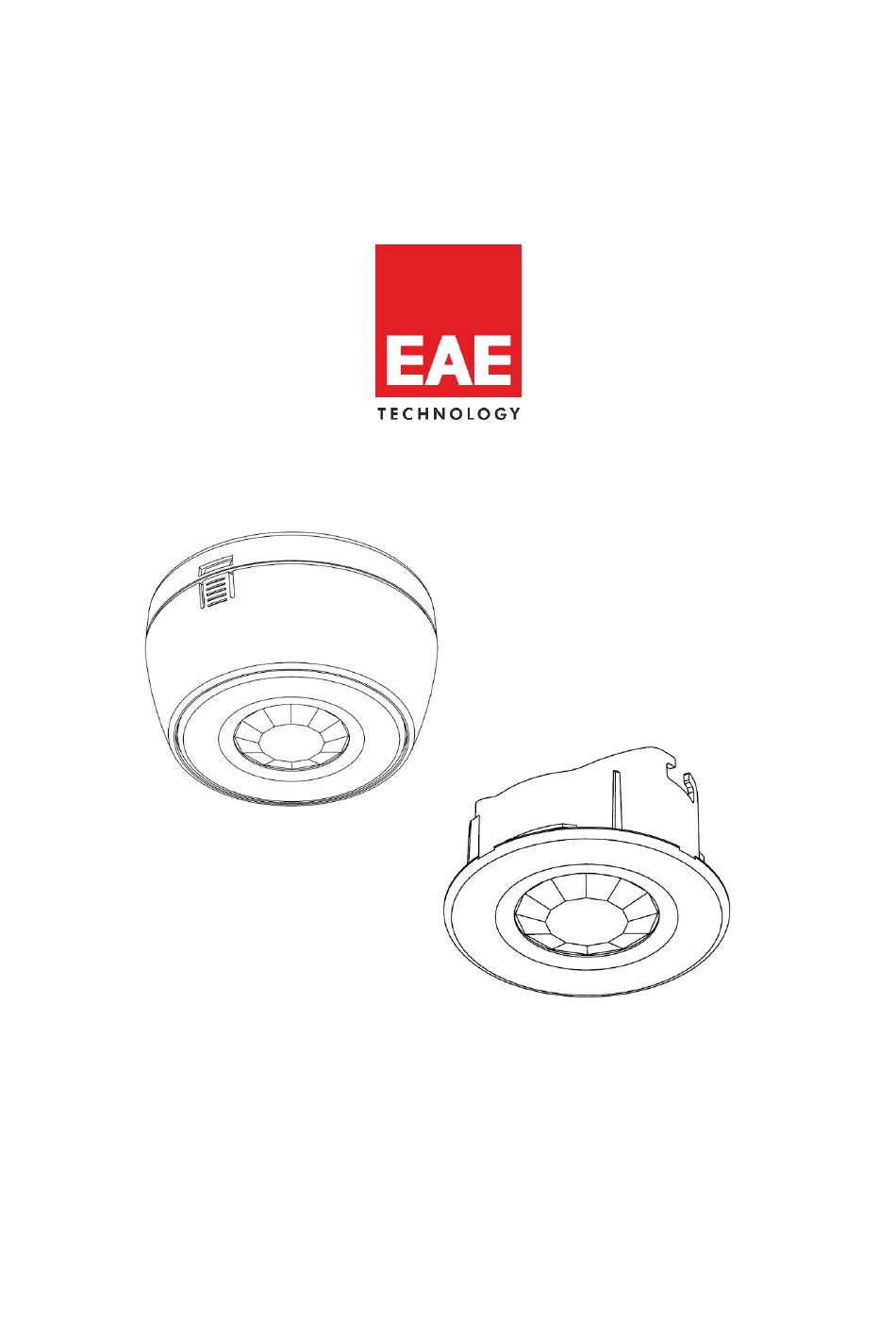

Page 1: Eae Knx Motion Detector
EAE KNX Motion Detector Product Manual MD100 Order Number: 48018... -
Page 2: Table Of Contents
Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 Content 1 General ............................... 2 1.1 Technical Data ..........................2 1.2 Operation and Display ......................... 4 1.3 Scale Drawings ..........................5 2 Communication Object Information ....................6 2.3 Communication Object Table ...................... 6 2.4 Communication Object Description .................... 8 3 Parameters ............................12 3.3 General ............................12 3.4 Presence ............................ 14 3.5 Brightness ..........................16 3.6 Constant light level ........................17 3.7 Lighting . -
Page 3: General
Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 1 General § MD100 KNX Motion Detector is ideal for interior rooms such as medium to large-size offices, corridors, classrooms, conference and meeting rooms, parking buildings, warehouses and sport halls. Detector is available in two models; flush mounted and surface mounted. Both models can detect the motion over 9m diameter at installation height of 2.5m. Constant light function can be applied in dependence of presence information thanks to § integrated brightness sensor and movement sensor. MD 100 regulates the ambient brightness to a defined brightness value. Lighting can be set to different brightness levels with corridor function based on occasions § such as "motion detection, after movement, no action". Stay-on time can be changed the by end user. Air-conditioning and ventilation systems can be controlled by independent HVAC channel. § Presence information can be sent to presence monitoring applications by independent § presence channel. The EAE KNX Presence Detector MD 100 can either used as a standalone device or § masterslave device (parallel operation with other MD 100s) according to necessity of project. MD 100 enables fully-automatic and semi-automatic lighting control. § Test and calibration mode allows for easy installation. §... - Page 4 Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 Area 64 m Angle 360° Light level 10 – 1000 lux Additional channels Brightness, presence channel, HVAC channel Parallel operation Master/Master, Slave/Master Operating elements LED (red) and button For physical address Temperature range Ambient -5° C + 45° C Storage -25° C + 55° C Transport -25° C + 70° C Dimensions 42.5 x 42,5 x 12 mm Weight 0.06 kg Box Plastic, polycarbonate, colour white...
-
Page 5: Operation And Display
Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 Table 1 shows the maximum reachable diameter in meter of the different areas for different installation heights. (M) Table 1 - Motion Table 2 - Motion 5.0m 12 18 Ø3.0 5.0m Ø3.0 4.0m 10 15 Ø2.3 4.0m Ø2.3 3.5m 5,5 13 Ø2.0 3.5m 8,5 6,5 10 Ø2.0 3.0m 11 Ø1.6... -
Page 6: Scale Drawings
Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 Figure 2: Flush mounted MD100 KNX connection terminal Programming button Blue movement LED 1.3 Scale Drawings Figure 1: Surface mounted MD100 EAE Technology www.eaetechnology.com Page 5 / 21 ©... -
Page 7: Communication Object Information
Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 Figure 2: Flush mounted MD100 2 Communication Object Information 2.3 Communication Object Table Following communication objects are available in MD100. No Name Function DPT Type Length Flags 0 General In operation DPT 1.002 1 bit CWT 1 General Presence slave 1 DPT 1.001 1 bit CRW 2 General Presence slave 2 DPT 1.001... - Page 8 Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 11 Brightness Calibration DPT 9.004 16 bit CRW 12 Constant Light External brightness DPT 9.004 2 byte CRW 13 Constant Light Set point value DPT 9.004 2 byte CRW 14 Constant Light Switch ‘ON’ delay DPT 5.005 1 byte...
-
Page 9: Communication Object Description
Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 2.4 Communication Object Description No Name Function DPT Type Length Flags 0 General In operation DPT 1.002 1 bit CWT This object is used to report that device is still alive and connected to the KNX line by sending cyclic 1 bit telegrams. If a telegram is not received, device may be defective or KNX cable would be intercepted. - Page 10 Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 Presence Lighting stay ‘ON’ DPT 8 bit CRW time 5.005 This object is only visible if the "Switch-on delay and stay-on time change by bus" parameter is set to "yes" in the "Presence" parameter window. This object is used to receive Lighting stay-on time (in seconds) by the bus. Detector sends “on” telegram via presence output object at detected movement and stays “ON” until the adjusted time runs out. 10 Brightness Measured value DPT 16 bit CRT 9.004 This object is only visible if the "Enable brightness" parameter is set to "yes" in the "General" parameter window. “Measured value” can be send to the bus “on change or/and cyclically” by this object. 11 Brightness Calibration DPT 16 bit CRW 9.004...
- Page 11 Product Manual MD EAE KNX Motion Detector 1 00 PM R 1 .0 15 Constant Light Lighting stay ‘ON’ DPT 1 byte time 5.005 This object is only visible if the "ON times change by bus" parameter is set to "yes" in the "Constant light level - Lighting" parameter window. This object is used to receive Lighting stay-on time (in minutes) for constant light level of gro Detector sends “on” telegram to output object at detected movement and stays “ON” until t adjusted time runs out. Current “Lighting stay ON time” can be read from the object or a new “Lighting stay ON time” can be written to the object. Any value received outside the permiss range of 0…120 is rejected. 16 Group 1 Disable light level DPT 1bit control 1.001 Light level control of group 1 can be disabled by this object. Group 1 stops the sending light level teleg after disabling. Disable : 1 Enable : 0 NOTE: Group 1, Group 2, Group 3 and Group 4 are identical groups. All parameters of group 1 are in u additional groups (group 2, group 3 and group 4) except offset values.
- Page 12 Product Manual MD EAE KNX Presence Detector PM R 1 .0 17 Group 1 - output Switch light DPT 1.001 1 bit CRT This object is always available. “Switch light” object must be linked with the switching object of the actuator used in conjunction with Group 1-lighting for switching ON and OFF. It is possible to request the switching status from the detector. 18 Group 1 - output Dimming level DPT 5.001 8 bit CRT This object is only visible if the "Operating mode" parameter is set to "constant light control" in the Constant light level" parameter window. This object must be linked with dimming-level object of the actuator used for dimming lighting group 1. “Group 1 – input Dimming level” object can increase/decrease the output of this object according to parameters. 19 Group 1 - input Switch light DPT 1.001...
-
Page 13: Parameters
Product Manual MD EAE KNX Presence Detector PM R 1 .0 This object is only visible if the "Operating mode" parameter is set to "constant light control" in the Constant light level" parameter window. It must be linked with relative dim object of button that enables a room user to dim lighting group 1. Receiving a telegram through this object has an alterable behaviour according to “Light level control” parameter in the “Constant light level” parameter window. Disable constant light and dim: It remains disabled until detector itself ascertains no person is left in the room, re-enables the constant light control and switches the lighting OFF. Don’t disable and no action: No action receiving a telegram through Group 1 - input object. 3 Parameters “Parameters” chapter describes ETS parameters of the device. Please find detailed descriptions of communication objects in 2.2 Communication Object Descriptions. Default parameters are written in bold letters. 3.3 General General Parameters Detector mode *master slave Operating mode of the detector can be changed to “master” or “slave” by this parameter. Master : Detector will operate as a master or single detector. If there is no slave sensor which is in relation with master, it will operate as a single detector. In master mode, slave sensors are used to extend detection zone. (Presence information) Only the master sends light level telegram and HVAC telegram. EAE Technology www.eaetechnology.com Page 12 / 21 ©... - Page 14 Product Manual MD EAE KNX Presence Detector PM R 1 .0 Slave : Slave sensors only deliver presence information to the master in order to extend detection zone of master sensor. Number of slave *no slave 1 2 3 4 If detector mode is selected as master, parameter will be visible. “Presence slave 1…4” objects will be created according to number selected. Enable presence *yes no Parameter enables/disables presence parameters and objects. Enable temperature *no yes Parameter enables presence parameters and objects. Enable brightness *no yes Parameter enables brightness parameters and objects. Enable HVAC *no yes Parameter enables brightness parameters and objects. Overwrite settings for download * yes...
-
Page 15: Presence
Product Manual MD EAE KNX Presence Detector PM R 1 .0 3.4 Presence Presence Parameters Blue LED *show movement off If “show movement” is selected, blue LED inside the detector lights up with movement detection. Presence switch ‘ON’ delay [sec] *0…5 Parameter defines presence detection switch-on time (in seconds). After a detection, sensor waits until “Switch ON delay time” is expired and sends the presence information to “Presence output” with a secondary detection. Min. number of movements detected *1…20 during switch ‘ON’ delay “Presence switch ON delay” is started after detecting first movement. Detector waits for selected number of movements during “Presence switch ON delay” time in order to send that the presence information is “ON”. Presence stay ‘ON’ time [sec] 1…*10…255 This parameter defines lighting stay-on time (in seconds). Detector sends “on” telegram via presence output object at detected movement and stays “ON” until the adjusted time runs out. Break in presence detection[sec] *0…255 Movements detected are ignored during the period selected. This parameter is used to avoid incorrect detections if temperature changes after lights switched “OFF”. Switch ‘ON’ delay and stay ‘ON’ time can *no be changed by bus yes If parameter is selected “yes”, “Switch ON delay time” and “Lighting stay ON time” communication... - Page 16 Product Manual MD EAE KNX Presence Detector PM R 1 .0 10 min 15 min 30 min 60 min Presence information will be sent cyclically in selected period via “Presence output”. Disable presence output *no ON for disabling / OFF for enabling OFF for disabling / ON for enabling This parameter is used to make visible “Disable presence output” object and which telegram to use disable and re-enable presence output object. If any parameter is selected except “no”, “Disable presence output” object will be visible. ON for disabling / OFF for enabling: Presence output is disabled with the value “1” and re-enabled with value “0”. OFF for disabling / ON for enabling: Presence output is disabled with the value “0” and re-enabled with value “1”. Behaviour disable lighting *no action Light ON Light OFF This parameter is used for selecting whether to send a telegram from the “presence output object” before disabling it and, if so, with which value. No action: No telegram is sent before disabling presence output object. Light ON: Presence output object is set to the value “1” before disabled. Light OFF: Presence output object is set to the value “0” before disabled. Behaviour enable lighting *no action Light ON Light OFF This parameter is used for selecting whether to send a telegram from the “presence output object”...
-
Page 17: Brightness
Product Manual MD EAE KNX Presence Detector PM R 1 .0 3.5 Brightness Brightness Parameter inactive Send brightness on change of 10 lux 20 lux 30 lux 40 lux *50 lux 60 This parameter is used to select which level the brightness value last sent must have changed by for the brightness measured to be sent again. Cyclical sending of light value *inactive 5s 10s 20s 40s 1 min 2 min 4 min 6 min 8 min 10 min 15 min 20 min 30 min This parameter is used to adjust cyclical sending period of “Brightness value” object. -
Page 18: Constant Light Level
Product Manual MD EAE KNX Presence Detector PM R 1 .0 3.6 Constant light level Constant Light Level Parameters Operating mode *Constant light control Brightness on/off control This parameter is used to select operating mode of constant light level. Constant light control: Lighting groups are controlled by “Dimming level” object until reaching the set point value for constant light control. “Switch” object is only used to %100 and %0 percentages when it is needed. Brightness on/off control: Lighting groups are only controlled by “switch” object according to set point value. If measured brightness value is greater than the set point value, “switch” object is set to the value “0”. If measured brightness value is less than the set point value, “switch” object is set to the value “1”. Lighting group count *1 2 3 4 This parameter is used to specify the lighting group count which are controlled by constant light function. Set point type *parameter parameter and object This parameter is used selecting “Set point type”. Parameter: Set point is only specified by parameter on ETS. Parameter and object: Set point is specified by parameter on ETS, it also can be changed via “set point value” object by bus. EAE Technology www.eaetechnology.com... - Page 19 Product Manual MD EAE KNX Presence Detector PM R 1 .0 Used brightness *internal external This parameter determines that brightness val ue which is used for constant light con t rol will be internal or external. Maximal variation from set point value 15 lux *30 lux 45 lux 60 lux This parameter is used to adjust hysteresis value for set point value. (-30…set point value…+30) Dimming level is only sent by “dimming level” object if current brightness value is out of the range specified with maximal variation of set point value. Max step size for dimming 0.5% 1% 1.5% 2% 2.5% 3% *5% This parameter is used to select step size dimming for constant light control. “Dimming level” object sends the dimming values (1 byte) with selected step size to reach the appropriate brightness in the room for set point value. (%100, %95, % 90 etc.) Transmit next dimming value after 0.5s...
-
Page 20: Lighting
Product Manual MD EAE KNX Presence Detector PM R 1 .0 This parameter is used to select the behaviour of lighting level control when any telegram is received via input objects of related lighting group. (Input switch, input dimming level, input dimming light) Disable constant light and dim: When input telegram is received, constant light level control will be disabled until re-enabling via “Disable constant light” object of the lighting group and lighting group will be dimmed. Don’t disable and no action: Constant light control is not disabled when any input telegram is received. Lighting group performs the command which is sent by input until to next constant light level telegram. 3.7 Lighting Lighting Parameters Lighting section consists of presence detection parameters which will be used for constant light level control. Operation lighting *automatically ‘ON’ and ‘OFF’ semi- automatic only ‘OFF’ This parameter is used to select operation type of lighting. Automatically ‘ON’ and ‘OFF’: Lighting group is controlled automatically by detector according to presence information. If person is present in the room, “ON” command is sent to the lighting group if no person is present, “OFF” command is sent to the lighting group. Semi-automatic only ‘OFF’: Lighting group is controlled semi-automatically according to presence information. The lighting group waits the “ON” command from user in order to light up, it does not light up even if a motion is detected. But, “OFF” command is sent automatically by detector if there is no person in the room. Switch ‘ON’ delay [min] *0…30 This parameter is used to determine “Switch ON delay time”. After a movement detection, sensor waits until “Switch ON delay time” is expired and sends the presence information to “Presence output” with a secondary detection. -
Page 21: Hvac
Product Manual MD EAE KNX Presence Detector PM R 1 .0 Yes: “Switch ON delay time” and “Stay ON time” objects are created and possible read/write to these objects. No: “Switch ON delay time” and “Stay ON time” objects are not visible. Disable light level control *no ON for disabling / OFF for enabling OFF for disabling / ON for enabling This parameter determines the value type for disabling/enabling light level control. No: Disable constant light level object is not visible. ON for disabling / OFF for enabling: Light level control is disabled with the value “ON” and enabled with the value “OFF”. OFF for disabling / ON for enabling: Light level control is disabled with the value “OFF” and enabled with the value “ON”. Behaviour disable lighting *no action Light ON Light OFF This parameter is used for selecting whether a telegram is sent to lighting group before disabling “light level control” and, if so, with which value. No action: No telegram is sent before disabling “light level control”. Light ON: Lighting group is set to the value “ON” before disabled. Light OFF: Lighting group is set to the value “OFF” before disabled. Behaviour enable lighting *no action Light ON Light OFF This parameter is used for selecting whether a telegram is sent to lighting group after enabling “light level control” and, if so, with which value. Continue control: After enabling the “light level control”, detector keeps the current status of lighting group. - Page 22 Product Manual MD EAE KNX Presence Detector PM R 1 .0 HVAC Parameters Switch ‘ON’ delay [min] *0…30 This parameter is used to determine “Switch ON delay time”. After a movement detection, sensor waits until “Switch ON delay time” is expired and checks the presence object for presence information. If value of presence object is still “ON”, sensor sends the value “ON” to “HVAC – Output” object. Stay ‘ON’ time [min] *1…120 This parameter is used to determine “Stay ON time” for HVAC output. “ON” telegram is sent to the output with a detected motion and HVAC output stays “ON” until “Stay ON time” is expired. Switch ‘ON’ delay and stay ‘ON’ time can *yes be changed by bus no This parameter determines whether “Switch ON delay time” and “Stay ON time” can be changed by bus or not. Yes: “Switch ON delay time” and “Stay ON time” objects are created and possible read/write to these objects. No: “Switch ON delay time” and “Stay ON time” objects are not visible. Disable light level control *no ON for disabling / OFF for enabling OFF for disabling / ON for enabling This parameter determines the value type for disabling/enabling HVAC output object. No: “Disable HVAC output” object is not visible. ON for disabling / OFF for enabling: HVAC output is disabled with the value “ON” and enabled with the value “OFF”. OFF for disabling / ON for enabling: HVAC output is disabled with the value “OFF” and enabled with the value “ON”.
- Page 23 Product Manual MD EAE KNX Presence Detector PM R 1 .0 Light ON: After enabling the HVAC output, it is set to the value “ON”. Light OFF: After enabling the HVAC output, it is set to the value “OFF”. EAE Technology www.eaetechnology.com Page 22 / 21 ©...
