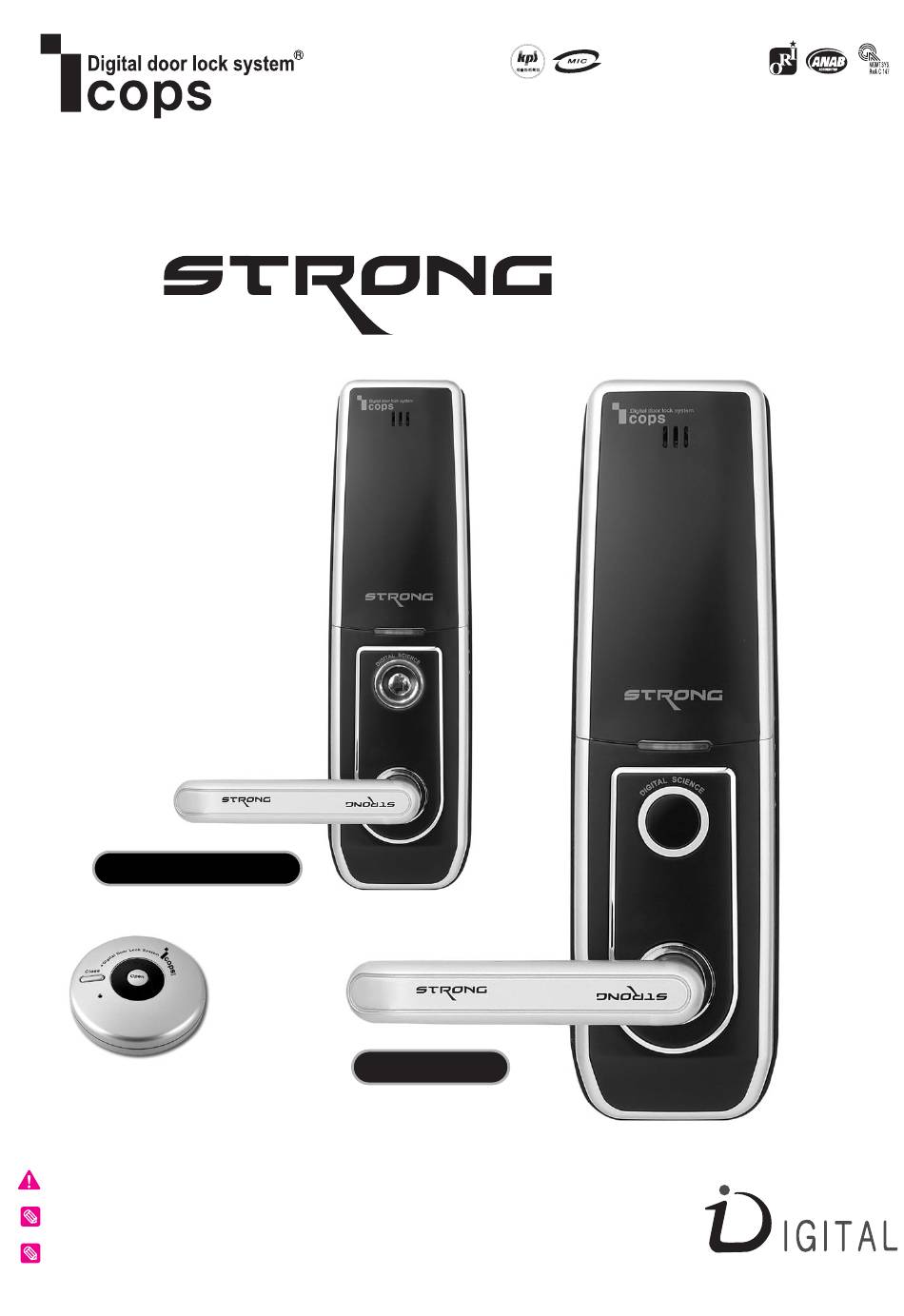

IOne Digital cops STRONG NF-T-K-M Product Manual

Digital door lock system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Electronic key
R R e e m m o o t t e e c c o o n n t t r r o o l l ( ( O O p p t t i i o o n n ) )
T T h h e e d d a a t t e e o o f f i i n n s s t t a a l l l l a a t t i i o o n n m m u u s s t t b b e e r r e e c c o o r r d d e e d d i i n n t t h h e e g g u u a a r r a a n n t t e e e e l l e e t t t t e e r r t t o o g g e e t t a a f f r r e e e e s s e e r r v v i i c c e e . .
Please read the safety instructions before use.
Keep this manual in a convenient place so that you can refer to it when necessary
and be sure to deliver it to prospective customers for their convenience of use.
Product Manual
Card keys
The top leading digital door lock system
Registration of suitability for
electromagnetic wave
NF-T-K-M
IONE DIGITAL CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cops STRONG NF-T-K-M and is the answer not in the manual?

Questions and answers

Summary of Contents for IOne Digital cops STRONG NF-T-K-M

  • Page 1 Please read the safety instructions before use. Keep this manual in a convenient place so that you can refer to it when necessary IONE DIGITAL CO., LTD. and be sure to deliver it to prospective customers for their convenience of use.
  • Page 2 How to change password and set-up Preparation Switch Open Key cover and the door. Open Battery cover. How to Change password Switch ① Press SET Switch once. ② Enter desired password. ③ Press the button. “b~eep r~ing” ④ Enter the new password once again ⑤...
  • Page 3 How to Change Set-up ① Press SET Switch times. ② Press the number of mode you want to set up. ③ The mode is complete with a long confirmation beep ( “b~eep r~ing” Switch Manual Mode Verbal volume down Verval volume up Beep Mode Auto Mode Silent Mode...

  • Page 4: Table Of Contents

    Contents 1. Instruction for safety Emergency operation in case of fire 2. Caution for using 2-1. Caution for installation 2-2 Caution for operation 2-3 How to manage emergency keys 2-4 Caution for battery use & replacement 3. Product Specification 4. Product Features 5.

  • Page 5: Instruction For Safety

    Instructions for safety Please read the following safety instructions to prevent any accident, property damage and inconvenience. Children should be well educated for the operating instruction. Keep this manual in a convenient place so that you can refer to it when necessary.

  • Page 6: Caution For Using

    Caution for using Please note the following for effective use of the product without any trouble. 2-1 Caution for installation M M a a k k e e s s u u r r e e t t h h a a t t a a n n y y h h o o l l e e i i n n t t h h e e d d o o o o r r s s u u c c h h a a s s a a m m i i l l k k d d r r o o p p i i s s c c l l o o s s e e d d u u p p b b e e f f o o r r e e i i n n s s t t a a l l l l a a t t i i o o n n . . Unlawful entry could be attempted by operating the digital door lock through a hole like a milk drop running from outside to inside.

  • Page 7: How To Manage Emergency Keys

    B B e e c c a a r r e e f f u u l l t t h h a a t t y y o o u u r r f f i i n n g g e e r r d d o o e e s s n n o o t t g g e e t t h h u u r r t t w w h h e e n n l l i i f f t t i i n n g g t t h h e e k k e e y y p p a a d d c c o o v v e e r r u u p p a a n n d d d d o o w w n n . . Your finger is in danger of being jammed in the crack of the product.

  • Page 8: Product Specification

    Product Specification ·Front (Outside) : 32(D) ⅹ 75(W) ⅹ 290(H) ·Main (Inside) : 35(D) ⅹ 75(W) ⅹ 295(H) ·Applied power : DC 6V ( 2 sets of four 1.5V AA Alkaline batteries) ·The life of batteries : 1 year (standard use of 10 times a day on regular condition) ·Number of registered cards(electronic keys) : 20 pieces (ISO 14443A TYPE Metro Card) Number of registered remote controls : 4 pieces ·Heat detection sensor temperature : 70 ±...
  • Page 9 2. Panic function * Just pushing down the handle will open the door from inside of the house. 3. Heat sensor * In case of fire, a heat detection sensor is in action and the door is automatically opened with the alarm sound. 4.
  • Page 10 12. Verbal direction on the time of battery replacement * When batteries need replacing, the product lets users know it through the verbal direction of “Change batteries.” Once hearing the verbal direction for battery replacement, change batteries immediately. Unless you replace batteries at the right time, “Open”or “Automatic Locking” device might not function properly.

  • Page 11: Contents Of Product

    Contents of Product Front (Outside) Main (Inside) Remote control(Option) ( ( ( ( ( ( ( ( Card keys Motise Manual ·8 batteries (1.5V AA Alkaline) ·3 remote control batteries (1.5V AAA Alkaline, Option) ·Letter of guarantee for the product ·Installation template...

  • Page 12: Identification Of Product

    Identification of Product Speaker Hole : Verbal messages are heard through this hole. Outside Power Source : Use the 9V battery 6F22(FC-1) when the door lock is not functioning due to dead batteries in the lock. Connection Checking Lamp of Outside Power Keypad Lamp : turned on when you open the keypad cover or press *(start) button.

  • Page 13: Set Switch Menu

    SET Switch MENU Please refer to appropriate heading for details 1 1 . . P P r r e e s s s s S S E E T T S S w w i i t t c c h h o o n n c c e e - one short beep ( “b b e e e e p p ”...

  • Page 14: Change Password / Register Or Delete Card Keys(Electronic Keys) / Change Set-Up

    Change Password / Register or Delete Card keys(Electronic keys) / Change Set-up 8-1 Preparations for the change of password, the registration or deletion of card keys (electronic keys) or the change of settings 1. Keep the door open so as to make it possible to come in and go out. 2.

  • Page 15: How To Delete Card Keys (Electronic Keys)

    “Long Beep” ⑤ Press the * button. ⑥ Password changing confirmation beep C C a a u u t t i i o o n n - - A A f f t t e e r r i i n n s s t t a a l l l l a a t t i i o o n n , , m m a a k k e e s s u u r r e e p p a a s s s s w w o o r r d d i i s s c c h h a a n n g g e e d d b b e e f f o o r r e e u u s s i i n n g g t t h h e e p p r r o o d d u u c c t t . . 8-3 How to delete Card keys (Electronic keys) “Beep, Beep, Beep”...

  • Page 16: How To Delete Indoor Remote Control

    8-5 How to delete Indoor Remote Control “Beep, Beep, Beep” ③ Three confirmation beeps Switch Remote controls registered are all deleted ① Press SET Switch 4 times. ② Press the * button for 5 seconds. with three confirmation beeps. C C a a u u t t i i o o n n - - After installation, make sure the remote control is deleted and registered again before using the product.

  • Page 17: General Function

    General Function 9-1 How to open the door A A . . U U s s i i n n g g p p a a s s s s w w o o r r d d 1. Open Key cover *(S S t t a a r r t t - Press the ) button with the cover open.

  • Page 18: Dual Locking Mode

    9-3 Dual Locking Mode 1. Turn Dual Locking Switch in the Inside toward “L L O O C C K K ”position (left). - The verbal message of “S S a a f f e e M M o o d d e e ”is heard.

  • Page 19: Alarm Function For Forcible Entry

    4) 9V battery is 6F22 (FC-1), available on the market. 5) When using 9V battery, accurately put the battery to the outside power source terminal and use the P/W or Card. - If the battery is placed properly, the red LED on the right side of the outside power source terminal flashes.

  • Page 20: Troubleshooting

    Troubleshooting Tips for solutions to most of the problems arising while in use. Many problems could easily be solved when you carefully read and followed. Symptom Reason Remedy Not working after insertion of Misplaced or poor electrode Check out the electrode before batteries contact battery insertion.

  • Page 21: Criterion Of Limited Warranty Service

    Criterion for limited warranty service Warranty Service Customer Damage Type Within the After the warranty warranty period period Within one month of purchase, main Replacement of parts need repairing a product For one year from Free service Charged service installation Same recurring Under normal Free service...

  • Page 22: Letter Of Guarantee For The Product

    #407 Anyang mega velly B/D, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do, Korea TEL : 82-31-420-8925 FAX : 82-31-420-8933 http://www.icops.co.kr E-mail : icops@icops.co.kr...
  • Page 23 Digital Door Lock 2. The certification number : R-LPD1-03-0101 3. The firm name of the authorized dealer: IONE DIGITAL CO., LTD. 4. Month / Day / Year of Production: 5. Manufacturer / Country : IONE DIGITAL CO., LTD. / Korea...
  • Page 24 F F A A X X : : 8 8 2 2 - - 3 3 1 1 - - 4 4 2 2 0 0 - - 8 8 9 9 3 3 3 3 IONE DIGITAL CO., LTD.
