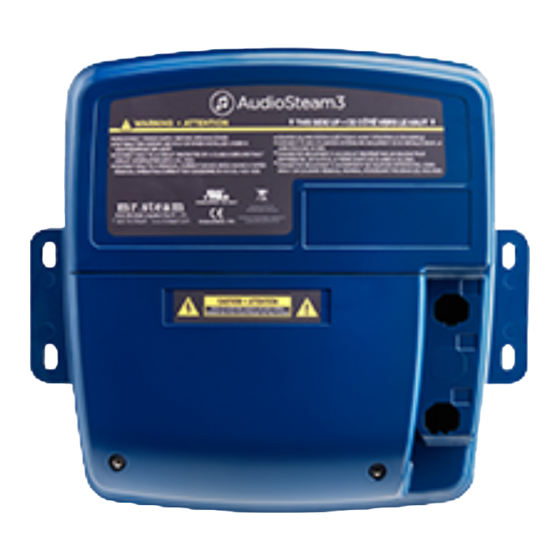

AudioSteam
®
.
mr
steam
®
Feel Good Inc.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AudioSteam and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for mr. steam AudioSteam

  • Page 1 Installation, Operation and Maintenance Manual Installation, Operation, and Maintenance Manual AudioSteam ® steam ® Feel Good Inc. ®...
  • Page 2 • Do not disassemble or alter the AudioSteam in any way. • Clean the AudioSteam with a dry cloth only. Beware of the application of some products commonly used against cor- rosion (such as WD-40 family products), as some industrial oils can have negative chemical reactions and damage the ®...
  • Page 3 • To prevent electric shock hazard and/or water damage to the AudioSteam, all conduits must be plugged with the included foam blocks. • To prevent a shock hazard do not install the AudioSteam in a location where it can get wet. Audiosteam must be installed in a dry, indoor location.
  • Page 4: Table Of Contents

    Removing the AudioSteam Cover .......8 Connecting the FM Antenna and Auxiliary Cord ..9 Connecting Speakers and Subwoofer ......9 Connecting AudioSteam to the Steam Generator ..10 Pairing a Bluetooth-Enabled Device ......11 4. AudioSteam Specifications ........12 5. Regulatory Statements ......... 13 HOMEOWNER/END-USER INSTRUCTIONS 6.
  • Page 5: Installer Instructions

    IMPORTANT NOTE steam generator, iSteam3, and audio speakers. AudioSteam only integrates with iSteam3. Figure 2 shows how to use the AudioSteam as a standalone system within your steam room (i.e., if your steam room does not use iSteam3). All drawings are for illustrative purposes only.
  • Page 6 Speakers AudioSteam Grounded wall outlet Power cord (6 ft) iSteam3 AudioSteam control cable (30/60 ft) In-room control cable (30/60 ft) S T E A M R O O M Steam ( d r y ) ( w e t )
  • Page 7: Installing Audiosteam

    2. To prevent overtemperature shutoff and equipment damage, do not use foil insulation in front of AudioSteam. 3. Place AudioSteam far from any electrical noise source, such as variable speed controls and motors, to prevent interference that will affect audio quality.
  • Page 8: Connecting Audiosteam

    3. Connecting AudioSteam Connecting AudioSteam WARNING To connect AudioSteam to the steam generator, per- • To reduce the risk of electric shock, do not form one or more of the following connections: remove the screws on the back of AudioSteam.
  • Page 9: Connecting The Fm Antenna And Auxiliary Cord

    Cord channel as illustrated (Figure 9). For best recep- tion, fully deploy the antenna in a vertical orienta- tion outside of the AudioSteam housing. Antenna Connect a 1/8” (3.5 mm) stereo audio cord (not Route...
  • Page 10: Connecting Audiosteam To The Steam Generator

    INSTALLATION, OPERATION, AND MAINTENANCE Connecting AudioSteam to the Steam Generator Power Cord To operate the AudioSteam via iSteam3, you must connect the to 120V AudioSteam (Figure 12) to an internal connector in the steam generator. Grounded Outlet Control Cable Connection Port WARNING Shock hazard.
  • Page 11: Pairing A Bluetooth-Enabled Device

    AudioSteam (without having to go through the pairing process again) when moved within range. • AudioSteam will store up to eight devices in its memory. If one of the last three paired devices is in range and has Bluetooth turned on, it will automatically connect to AudioSteam.
  • Page 12: Audiosteam Specifications

    : 10 Hz to 200 Hz UL 60065 (subwoofer) CAN/CSA-C22.2 No. 60065-03 AUXIlIARY INPUTS EN 60065 Maximum number of inputs: AS/NZS 60065 Connection type: 1/8” (3.5 mm) stereo jack Maximum voltage: 2.2 Vpp Impedance: 100 Kohms AudioSteam is compliant with the Radio Equipment Directive (RED)
  • Page 13: Regulatory Statements

    ® AudioSteam ® INSTALLATION, OPERATION, AND MAINTENANCE 5. Regulatory Statements FCC Compliance Statement Contains Transmitter Module FCC ID: A8TBM23SPKXYC2A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 14: Homeowner/End-User Instructions

    AudioSteam (without having to go through the pairing process again) when moved within range. • AudioSteam will store up to eight devices in its memory. If one of the last three paired devices is in range and has Bluetooth turned on, it will automatically connect to AudioSteam.
  • Page 15: Audiosteam Warranty

    (cont.) To Operate AudioSteam using iSteam3: 1. Boot iSteam3 and wait for the iSteam3 home screen to appear. 2. To turn on AudioSteam (Figure 14), tap the icon (A), and then tap the MUSIC button (B). music 3. Tap the icon (A in Figure 15).
  • Page 16 steam ® Connecting Multiple Accessories to the Steam Generator To operate the SteamLinx, AudioSteam3 and ChromaSteam3 via iSteam3, you must connect the accessories to an internal connector in the steam generator. Shock hazard. Power must be disconnected at the main electri- cal supply before removing the steam generator cover.
  • Page 18: Sussman-Automatic Corporation

    : 310 216 2944 Copyright © 2017 Sussman-Automatic Corporation I MrSteam and des., A Lifetime of Pleasure, AirTempo, AromaFlo, AudioSteam, AudioWizard, AutoFlush, AutoSteam, Butler Package, ChromaSteam, Clean Steam...Every Time, Club Therapy, Digital 1, Express Steam, Feel Good Inc., From Bathroom to Spa, HomeWizard, iButler, iGenie, iSizing, iSteam, iTempo, iTempo/Plus, Making Wellness a Way of Life, MusicTherapy, SmartSizing, Spa Package, Steam Genie, Steam on Demand, Steam@Home, SteamStart, SteamStop, SteamTherapy, Sussman, Tala, The Intelligent Steambath, Valet Package, and Virtual Spa System are registered trademarks of Sussman-Automatic Corporation.
