Summary of Contents for SACKit BOOMit
- Page 1 BOOMit User Manual - English...
- Page 2 Thank you! Thank you for purchasing this BOOMit high power portable design speaker from SACKit. Please read the entire user manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data.
-
Page 3: Table Of Contents
SAFETY INFORMATION ....................4 PRODUCT DESCRIPTION ....................5 QUICK START GUIDE ......................7 BATTERY AND CHARGING ...................7 BLUETOOTH CONNECTION ..................8 CONNECT TWO BOOMit IN WIRELESS STEREO ..........8 LINE IN MODE........................8 CONNECT TWO BOOMit with LINE IN ..............9 POWER BANK FUNCTION ....................9 CLEANING THE SPEAKER ....................9 SPECIFICATIONS ...................... -
Page 4: Box Contents
CONGRATULATIONS on your new SACKit product! Register your new SACKit product and get cool benefits. 1. Go to www.sackit.eu/reg 2. Enter name, e-mail, and product. BOX CONTENTS 1. BOOMit speaker 2. Quick start guide 3. AC power adapter SAFETY INFORMATION Product malfunctions due to incorrect use of the product is not covered by the warranty. -
Page 5: Product Description

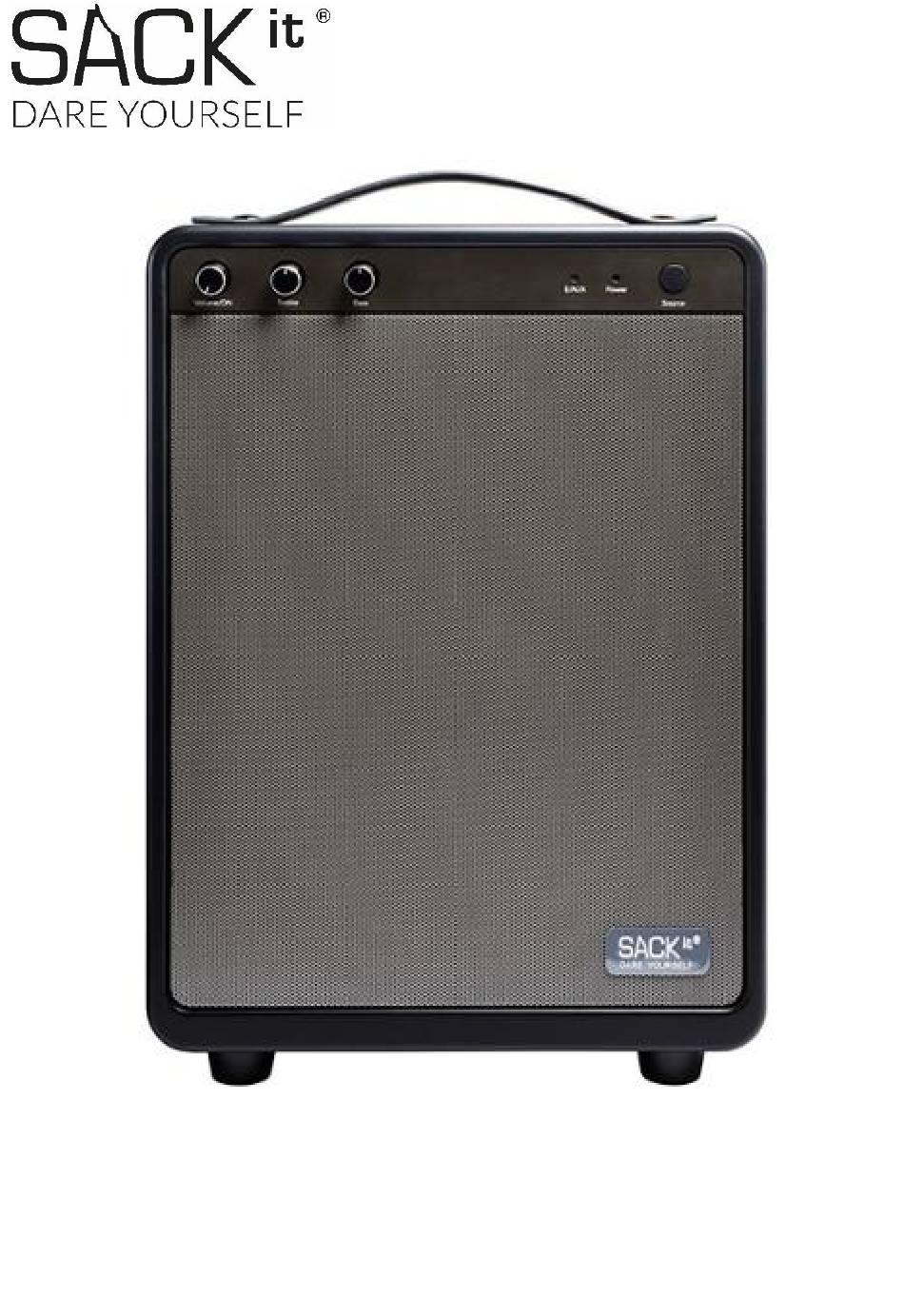

PRODUCT DESCRIPTION Front: Treble dial Bluetooth/AUX LED Bass dial Power LED Volume/ON dial Source button • Volume/ON dial: Switch speaker on/off and control volume. Turning clockwise increases volume and vice versa. • Bass dial for controlling bass level. Recommended start setting is with indicator facing upwards. - Page 6 Bluetooth, it will connect to the latest device. o Double click = Disconnect connected device. o Long press (3 seconds) = Connect to another BOOMit in wireless stereo. If connected already and you long press ‘Source’ you will disconnect the other BOOMit.
-
Page 7: Quick Start Guide
• When in AUX mode, use this to receive signal from another unit. • Note: Can be used to connect two BOOMit with a mini-jack connector. • USB-power outlet. Use this port for charging your phone or similar with the large internal battery. -
Page 8: Bluetooth Connection
The two BOOMit are now paired in stereo. • To disconnect the paired BOOMit, press and hold the “Source” button on any of the BOOMit until you hear “DiDi” and the “Source LED” on the second BOOMit begins to blink. LINE IN MODE Connecting the speaker to another unit using line in. -
Page 9: Connect Two Boomit With Line In
Plug in AUX cable in second BOOMit, and turn up the volume to max. This function allows you to connect up to four BOOMit together. First pair two BOOMit with Bluetooth, then connect each of those BOOMit to another set of BOOMit using the line in method described above. -
Page 10: Specifications
SPECIFICATIONS Product size: 268 x 190 x 370mm Bluetooth: 5.0 Bluetooth working range : Over 10m Power input :DC 15V/2A Output – bass: 30W Output – treble: 2 x 10W Output – USB power bank: 5V/1.5A Frequency response: 18-20KHz Battery: Li-ion, 6600mAh, up to 6 hours streaming at 75-100% volume. Amplifier: Class D Product: 4.8 kg TROUBLESHOOTING... - Page 11 Cannot disconnect from Bluetooth device 1. If two BOOMit are connected in wireless stereo, you cannot disconnect your device through the speaker controls. Disconnects the second BOOMit by pressing and holding ‘Source’ on the second BOOMit. When this is disconnected, you can disconnect the first...
