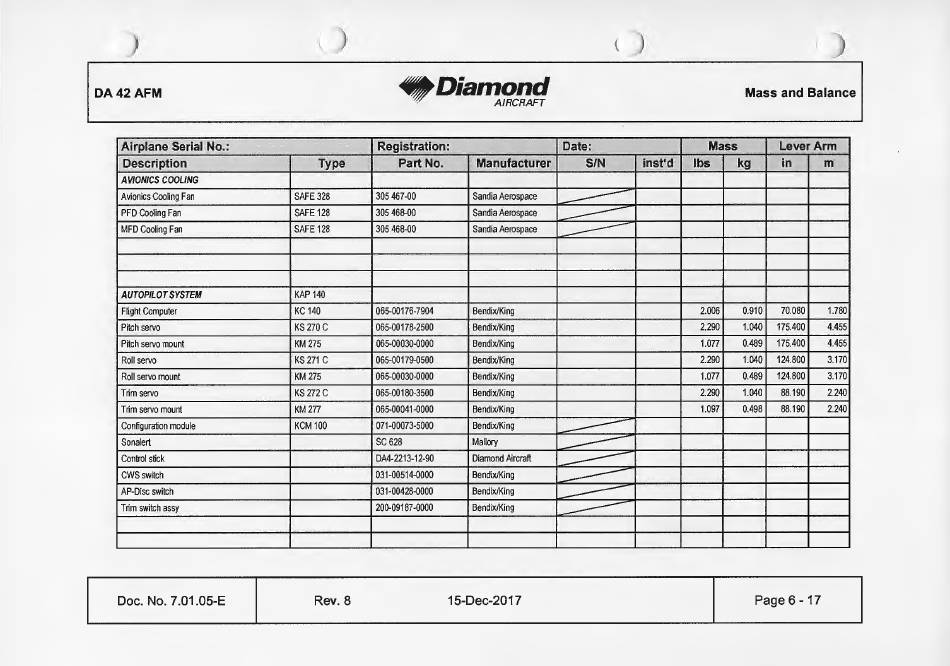

Mass and Balance
Airplane Seriai No.: Registration: Date: Mass Lever Arm
Description Type Part No. Manufacturer S/N inst'd lbs kg in
rn
AVION/CS COOLING
Avionics Cooling Fan SAFE 328
305 487-00 Sandia Aerospace
---
PFD Cooling Fan SAFE 128 305 468-00 Sandia Aerospace
---
MFD Cooling Fan
SAFE 128 305 468-00 Sandia Aerospace
---
AUTOPILOT SYSTEM
KAP 140
Flight Computer KC 140 065-00176-7904 Bendix/King 2.006 0.910 70.080 1.780
Pitch servo KS 270 C 065-00178-2500 Bendix/King 2.290 1.040 175.400 4.455
Pitch servo mount
KM 275 065-00030-0000 Bendix/King 1.077 0.489 175.400 4.455
Roll servo KS 271 C 065-00179-0500 Bendix/King 2.290 1.040 124.800 3.170
Roll servo mount KM 275 065-00030-0000 Bendix/King 1.077 0.489 124.800 3.170
Trim servo KS 272 C
065-00180-3500 Bendix/King 2.290 1.040 88.190 2.240
Trim servo mount KM 277 065-00041-0000 Bendix/King 1.097 0.498 88.190 2.240
Configuration module
KCM 100 071-00073-5000 Bendix/King
---
Sonalert
sc
628 Mali ory
--
Control stick DM-2213-12-90 Diamond Aircraft
--
CWSswitch
031-00514-0000 Bendix/King
--
AP-Disc switch 031-00428-0000 Bendix/King
--
T rim switch assy
200-09187-0000 Bendix/King
---
