- Page 1 L D H 3 H Y B R I D D E T E C T O R A N D C L A M P I N S T R U C T I O N M A N U A L...
- Page 2 SAFETY Read the following safety instructions before attempting to operate this product. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. WARNING: Read and understand all instructions. ▪ Use the detector only with the specifically designated battery. ▪ Store the detector out of reach of children and other untrained persons.
-
Page 3: Item Checklist
ITEM CHECKLIST Please ensure the following items are included with your detector. If anything is missing please contact your retailer. Lasertec LDH3 detector Staff clamp Alkaline battery... -
Page 4: Product Overview

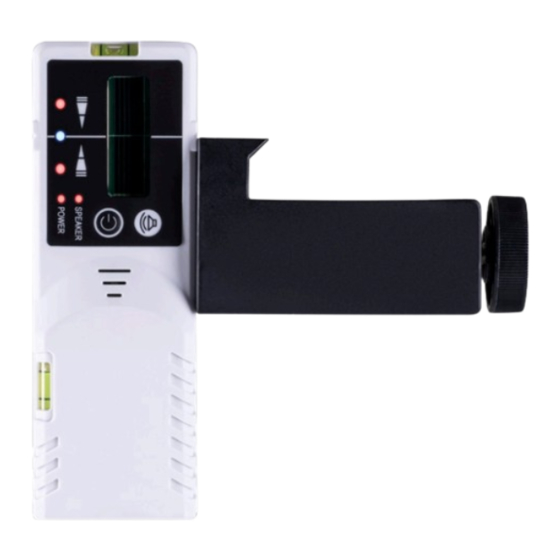

PRODUCT OVERVIEW DETECTOR FRONT Bubble vial Sensor panel LED direction indicator LED centre indicator LED direction indicator LED power indicator LED speaker indicator Power on / off Speaker on / off Bubble vial Speaker... - Page 5 DETECTOR BACK LED direction indicator LED centre indicator LED direction indicator Staff clamp thread Battery compartment Battery compartment screw...
- Page 6 ▪ The LED direction indicators will indicate the position of the laser beam. The centre LED will indicate alignment with the beam. This instrument is compatible with all Lasertec red and green beam multi-line laser levels with detector capability and most 3rd party red and green beam laser levels with detector capability.
- Page 7 Detector position for horizontal beams Detector position for vertical beams...
-
Page 8: Warranty
WARRANTY The Lasertec LDH3 comes with a 1 year manufacturers warranty. AUSTRALIA "Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. -
Page 9: Specifications
SPECIFICATIONS Specifications Lasertec LDH3 Product code 91820 Warranty 1 Year Speaker decibel (maximum) Battery type 1x 9v Weight (kg) 0.159 Dimensions (mm) 159 x 55 x 20... - Page 10 ww w.spo ton.c om.au...
