Summary of Contents for Oelmann Elektronik PS 622

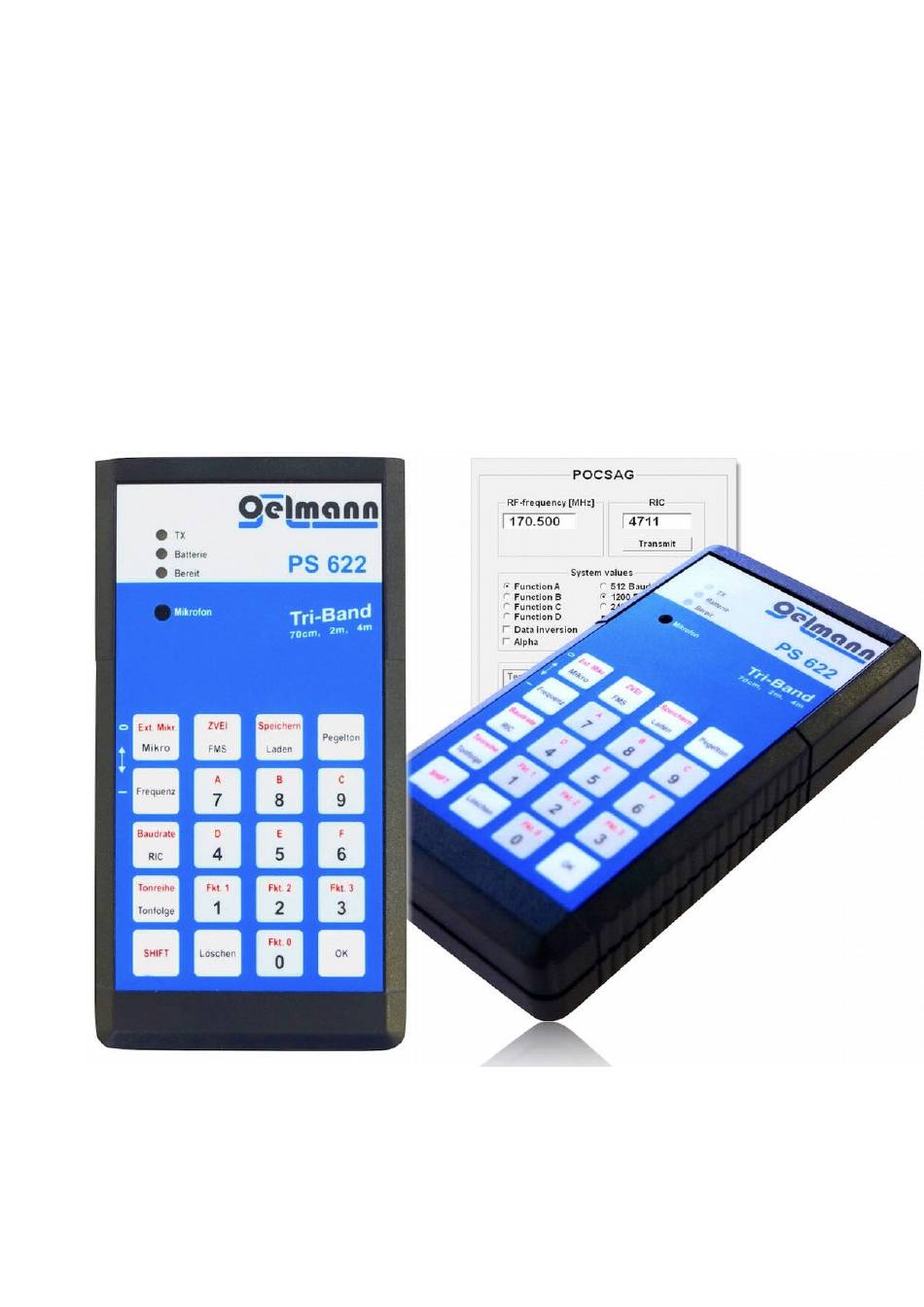

- Page 1 Analog and POCSAG digital radio pager tester PS 622 / User Manual Analog and POCSAG digital radio pager tester PS 622 User Manual Oelmann Elektronik GmbH, 2017...
- Page 2 Analog and POCSAG digital radio pager tester PS 622 / User Manual General Notes The PS 622 is the original portable device allows functional tests on analog and digital (POCSAG) radio pagers on the spot, for example after programming or repair of paging receivers.
- Page 3 Analog and POCSAG digital radio pager tester PS 622 / User Manual Carrier Frequency Input <Frequenz> 86455 <OK> sets the carrier frequency to 86.455 <Frequenz> 173250 <OK> sets the carrier frequency to 173.250 <Frequenz> 4480375 <OK> sets the carrier frequency to 448.0375 Transmission of a Test Tone <Pegelton>...
- Page 4 Analog and POCSAG digital radio pager tester PS 622 / User Manual Transmission of a tone sequence Every time the <OK> button is pressed, the recently keyed-in tone sequence is transmitted again (the last function is repeated automatically). <SHIFT><Tonreihe> 0 <OK>...
- Page 5 Analog and POCSAG digital radio pager tester PS 622 / User Manual Transmission of a POCSAG data stream Transmission of a POCSAG data stream, no encryption mode <SHIFT><Baudrate> 1 <OK> sets the baud rate to 512 bps <SHIFT><Baudrate> 2 <OK> sets the baud rate to 1200 bps <SHIFT><Baudrate>...
- Page 6 Analog and POCSAG digital radio pager tester PS 622 / User Manual Transmission of a POCSAG data stream in BOSKRYPT mode Transmission of a POCSAG data stream in BOS PV mode - 5 -...
- Page 7 Analog and POCSAG digital radio pager tester PS 622 / User Manual Alter the function sub-address <RIC> 4711 <OK> input of the RIC number <SHIFT><Fkt.0><OK> transmission of the RIC with function 00 (or A) <SHIFT><Fkt.1><OK> transmission of the RIC with function 01 (or B) <SHIFT><Fkt.2><OK>...
- Page 8 Analog and POCSAG digital radio pager tester PS 622 / User Manual POCSAG Groupcall (only by PC-Software) Transmission of a POCSAG group data stream, in no encryption and BOSKRYPT mode - 7 -...
- Page 9 Analog and POCSAG digital radio pager tester PS 622 / User Manual Transmission of a POCSAG group data stream, in BOS PV mode The tactical group call (or accelerated alarming) allows the fast sending of a POCSAG telegram to several radio call numbers.
- Page 10 Analog and POCSAG digital radio pager tester PS 622 / User Manual Transmission of German FMS call (TR BOS / 1200 Baud FFSK) Every time the <OK> button is pressed, the recently keyed-in FMS call is transmitted again (the last function is repeated automatically).
- Page 11 Analog and POCSAG digital radio pager tester PS 622 / User Manual Transmission of ZVEI / digital call (1200 Baud FFSK) <SHIFT><ZVEI> 4A155224<OK> transmits the ZVEI / digital call 4A155224 Any time the <OK> button is pressed, the recently keyed-in ZVEI / digital call is transmitted again (the last function is repeated automatically).
- Page 12 Analog and POCSAG digital radio pager tester PS 622 / User Manual Save settings <SHIFT><Speichern> 0 <OK> saves all settings in memory number 0 Altogether there are 10 memory slots (0 ... 9) available for individual settings. The PS 622 comes with a PC software that can handle these memory slots very comfortably.
- Page 13 Analog and POCSAG digital radio pager tester PS 622 / User Manual Load individual settings <Laden> 0 <OK> loads settings from the chosen memory slot 0 Carrying out loaded settings 1. Press key(s) according to the wanted function 2. Do not enter data! 3.
- Page 14 Analog and POCSAG digital radio pager tester PS 622 / User Manual Deletion of input errors Any function can be stopped by pressing the <Löschen> button in case of incorrect inputs. Testing analog voice pagers To turn on the RF carrier with activated microphone (according to the last chosen frequency) press the <Mikro>...
- Page 15 Analog and POCSAG digital radio pager tester PS 622 / User Manual LED indicators Yellow Is turned on when modulation starts, and the RF carrier is on, respectively. Green PLL control signal, normally Mashes whenever the RF carrier is turned on.
- Page 16 External connectors USB port To use in combination with the supplied cable and PC software for complete control via PS 622 PC software, or just to power the unit to use without batteries. RJ-45 connector To connect the optional adapter cable (D-Sub 9-pin socket, 622.9800) to use...
-
Page 17: Frequency Range
Analog and POCSAG digital radio pager tester PS 622 / User Manual PS 622 Technical Speci>cations Frequency Range 68...87.5 MHz, 146...174 MHz, 430...470 MHz Signaling scheme (protocol) Analog: Tone Sequence (ZVEI, CCIR, EEA) Digital: POCSAG (512, 1200, 2400 Baud) FFSK: FMS / ZVEI digital... - Page 18 Analog and POCSAG digital radio pager tester PS 622 / User Manual Conformity Oelmann Elektronik GmbH herewith declares that the device is made in accordance with the essential requirements and regulations of the directives 2004/108/EC and 2006/95/EC. The complete declaration can be requested by the manufacturer.
