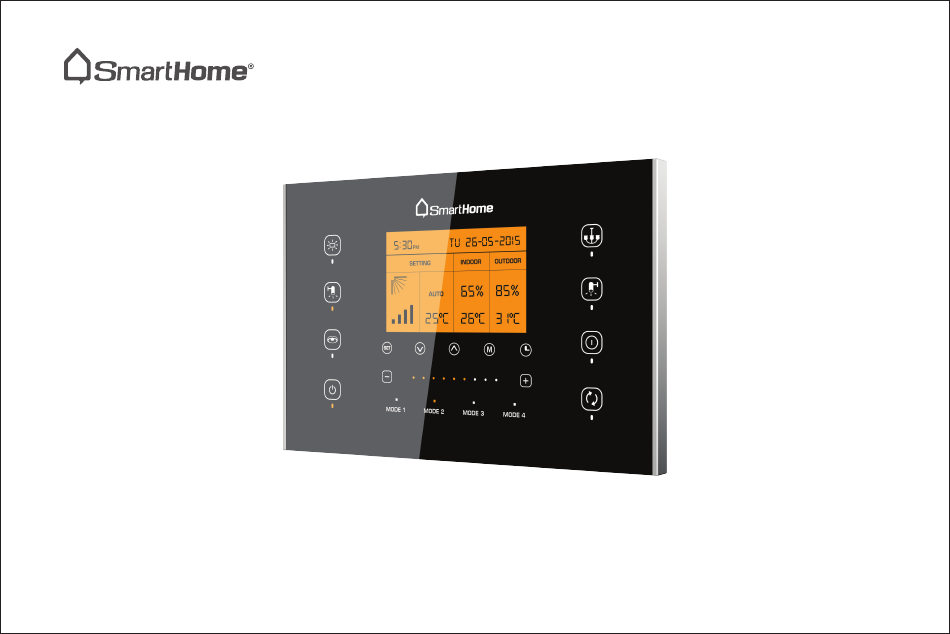

- Page 1 by Bkav MODEL: SH - CC6W...
- Page 2 . s m a r t h o m e . b k a v . c o m Mfr Code: 893604393UGCC 6W Copyright © 2015 Bkav SmartHome Co., Ltd. All rights reserved. UGCC6W/V1.1/1015...
- Page 3 USER GUIDE 6-CHANNEL CONTROL PANEL SH - CC6W Bkav SmartHome technology company limited...
-
Page 4: Usage Notice
Usage notice Thank you for choosing 6-channel control panel SH - CC6W of Bkav SmartHome. By selecting Bkav SmartHome’s products, you will get the best warranty service and installation support from our technicians. This document gives useful information during installation and usage time. You should read and keep the manual carefully in case of need. -
Page 5: Table Of Contents
Table of contents Usage notice Table of contents Safety instruction Introduction General introduction Product package Specifications Device usage Overview LCD screen Turn on/off the device - Forcible turn-on and Auto mode Turn on/off air conditioner – Select operating mode Adjust temperature – Adjust fan speed – Adjust wind direction Turn on/off relay channels - Turn on/off triac channels Switch preferred preset mode Select preferred mode –... - Page 6 Installation instruction Insert Power control box into Receptacle box Mount the stainless steel mounting frame Mount control touch-screen onto the frame Software installation instruction Contact...
-
Page 7: Safety Instruction
Safety instruction Do not use voltage which is different from the one stated in the device’s specifications. Disconnect device’s power prior to any installation, disassembly or repair. Do not leave the device in high-temperature environment. Do not disassemble the device if not necessary. Do not clean the device with corrosive chemicals. -
Page 8: Introduction
Introduction General introduction SH - CC6W is a smart touch-screen control panel integrated with Wi-Fi. It can control lighting systems, curtains, blinds, air conditioners (*) and create scenarios based on users’ demands. With capacitive touch technology, anti-scratch Gorilla Glass, unibody aluminum cover, LCD screen, the device will make your house modern and luxurious. -
Page 9: Product Package
Product package Stainless steel Control touch-screen mounting frame MODE 1 MODE 2 MODE 3 MODE 4 Remote control Power control box SH - RM6 (battery included) Receptacle box 2 Wire connectors by Bkav Connecting cable User guide (book) and screws MODEL: SH - CC6W... -
Page 10: Specifications
Specifications Voltage 100-240V 50/60Hz Operating temperature 60ºC max Wifi band 802.11n - 2.4Ghz Output power rating 4 relay channels 220VAC 15A max 2 triac channels 220VAC 15A max 140 x 90 x 55 mm Dimensions of Power control box 420 gram Weight of Power control box 180 x 120 x 8,6 mm Dimensions of Control touch-screen... -
Page 11: Device Usage
Device usage Overview Button to control relay channels LCD screen Indicator light Button to control Button to control wind fan air conditioner Triac 1 button Triac 2 button Button to increase/ decrease fan speed or temperature Button to switch air Triac dimming conditioner modes level indicator... -
Page 12: Lcd Screen
LCD screen Time Date DD - MM - YYYY Wind direction Outdoor humidity Air conditioner modes Outdoor Wind speed temperature Air conditioner Indoor Indoor temperature humidity temperature... -
Page 13: Turn On/Off The Device - Forcible Turn-On And Auto Mode
Turn on/off the device Tap on Power button < > to turn on/off the device: When the indicator light is off, tap on Power button < > to turn on the device. When the indicator light is on, tap on Power < >... -
Page 14: Turn On/Off Air Conditioner - Select Operating Mode
Turn on/off air conditioner Tap on < > to turn on/off air conditioner: When the air conditioner is in turn-on mode, icons [ will be displayed. When the air conditioner is in turn-off mode, icons [ will be hiden. The device just controls the air conditioner when installed with air conditioner controller SH - IRW. Notice Select the operating mode Tap on Mode button <... -
Page 15: Adjust Temperature - Adjust Fan Speed - Adjust Wind Direction
Control temperature Tap on < > to increase. Tap on < > to decrease. Buttons to adjust temperature works only when the mode to adjust fan < > is disable. Notice Control fan speed Tap one time on fan mode < >: The icon [ ] flickers. -
Page 16: Turn On/Off Relay Channels - Turn On/Off Triac Channels
Control relay channels Tap on one of the following buttons < > to turn on/off the corresponding channels: The indicator light below the icon is on, the status is On. The indicator light below the icon is off, the status is Off. Each control channel can be adjusted to control any power channel of Power control box by software reconfiguration. -
Page 17: Switch Preferred Preset Mode
Switch preferred preset modes To setup a preferred mode, take the following steps: Lighting mode and devices can be adjusted to meet demands. Tap on one of the following icons and hold for more than 3 seconds: < > < >... -
Page 18: Select Preferred Mode - Reset Wi-Fi Information For The Device
Select preferred modes To select a preferred preset mode, tap on the corresponding modes: Tap on < > to select preferred Mode 1. MODE 1 Tap on < > to select preferred Mode 2. MODE 2 Tap on < > to select preferred Mode 3. MODE 3 Tap on <... -
Page 19: Turn On/Off The Device - Select Preferred Scenario
Use remote control SH - RM6 Turn on/off the device Press Power button < > to turn on/off the device: When the indicator light is off, press Power button < > to turn on the device forcibly When the indicator light is on, press Power button < >... -
Page 20: Wiring Diagram
Wiring diagram Line 100-240V 50/60Hz Neutral 100-240 Input Output... - Page 21 Installation instruction Insert Power control box into Receptacle box Step 1: Remove the screw hole covers (3) from Power control box (2). Step 2: Connect wires to their wire connectors (4) based on the Wire connector wiring diagram on Page 17, and connect the connectors to their Screw hole cover corresponding locations on Power...
- Page 22 Step 3: Insert Power control box (2) into Receptacle box (1), then fasten 4 M4 screws (5). M4 screw Requirement: Power control Power control box box (2) must be tightly mount- ed on Receptacle box (1). Receptacle box...
- Page 23 Step 4: Insert the screw hole covers (3) into their correspond- Screw hole cover ing holes. Requirement: The screw hole Power control box covers (3) must fit in their holes, Receptacle box should not be loose and wobbly. Connection wires should be arranged neatly and tied firmly with cable ties.
- Page 24 Mount the stainless steel mounting frame Mount the stainless steel mount- ing frame (6) onto Receptacle box (1). Neatly place the frame (6) on the wall before tightening it by 4 M4 screws (5). Stainless steel Requirement: The stainless mounting frame steel mounting frame (6) must M4 screw be neatly and tightly placed...
- Page 25 Mount the control touch-screen onto the stainless steel mounting frame Step 1: Put the control touchscreen (8) in parallel with the mounting frame (6). Connect the Connecting cable (7) to the panel (8). Installation direction of Control touch-screen The green part of the connecting cable should Control touch-screen Notice...
- Page 26 Software installation instruction You can download Bkav SmartDevice to control the device at: http://www.smarthome.bkav.com/SmartDevice or scan QR Code below to download the application.
- Page 27 Contact If there is any problem related to the product, please contact Customer Contact Center: Customer Contact Center: (+1) 202 386 6779 Email: GlobalProject@bkav.com...
- Page 28 T h e n e w h o m e s s t a n d a r d !
