Summary of Contents for McDonald Engineers UK Electraflow

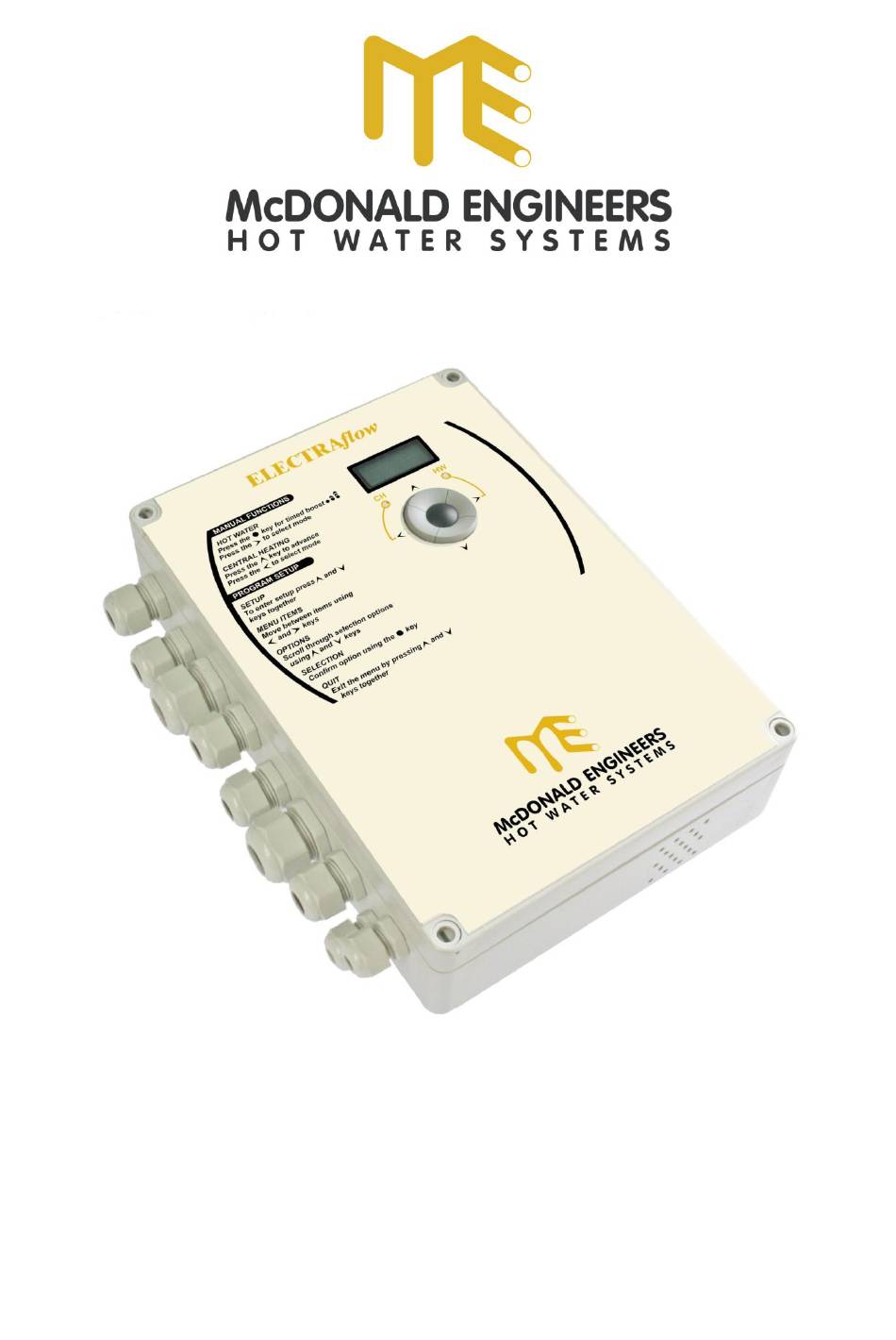

- Page 1 ELECTRAFLOW CONTROLLER USER INSTRUCTIONS...
- Page 2 INTRODUCTION This Controller has been specifically developed for the Electraflow heating system to efficiently provide you with both hot water and central heating at times tailored to meet the needs of your household. Through the night, water in the storage cylinder will be heated by low cost off-peak electricity, available for use the following day.
- Page 3 1 1 5 A d v will remain on for a has been Advanced. further ‘115’ mins. Note the symbol when displayed means that the thermostats of the associated heater are calling for heat. 3 of 8 Electraflow Rev1.0...
- Page 4 When a menu item is viewed the current option setting will appear flashing. The up and down cursor keys are used to scroll through the selection options available. To select an option, press the Boost key. 4 of 8 Electraflow Rev1.0...
- Page 5 The Up and Down cursor keys are used to increase or decrease the time. N.B. holding either key down will cause the numbers to auto-scroll. To confirm the entered time setting, press the Boost key. 5 of 8 Electraflow Rev1.0...
- Page 6 5:30 12:00 10:30 10:30 12:00 The Up and Down cursor keys are used to increase or decrease the selected time in 5 minute intervals. N.B. holding either key down will cause the numbers to auto-scroll. 6 of 8 Electraflow Rev1.0...
- Page 7 The Controller is NOT user serviceable. Do not dismantle the Controller. The Controller has several in-built safety features to ensure that it functions correctly. In the unlikely event of a fault developing please contact your installer or a qualified electrician. 7 of 8 Electraflow Rev1.0...
- Page 8 (EMC) (89\336\EEC), (92\31\EEC) Low Voltage Directive. (LVD) (72\23\EEC), (93\68\EEC) Copyright © 2006 3Minds Limited. All rights reserved. McDonald Engineers Ltd. Flemington Road, Tel. 01592 611123 Queensway Ind. Est., Fax. 01592 611166 Glenrothes, Fife info@mcdonald-engineers.com KY7 5QF. www.mcdonald-engineers.com 8 of 8 Electraflow Rev1.0...
