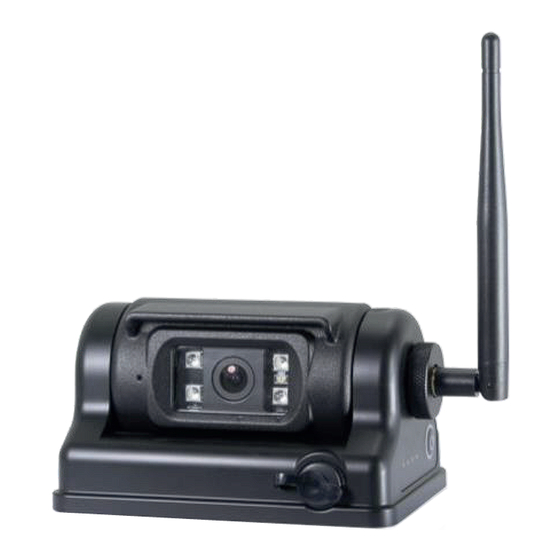

Summary of Contents for HBA 27-WF697
- Page 1 Operating Instructions Wi-Fi camera with Built-in Battery and Magnet Please read this manual thoroughly before operating the unit V1.0 HBA Fordonsteknik AB Tel. 08-88 09 00 - info@hba.nu - www.hba.nu...
-
Page 2: Table Of Contents
Contents 1. Instructions for Wi-Fi Camera ............. 1 1.1 Product Features ................1 1.2 Product Introduction ..............2 2. Instructions for APP of Wi-Fi Camera (for Android System) ....3 2.1 Software Installation ..............3 2.2 Wi-Fi Hotspot Connection ............. 4 2.3 Software Operation ................ -
Page 3: Instructions For Wi-Fi Camera
1. Instructions for Wi-Fi Camera 1.1 Product Features Long press the power button to turn on or off; Twice double-click the power button to restore the defaults; Battery capacity indicator; Overcharging protection; Over discharging protection; Short-circuit protection; Overheat and low temperature protection; Load detection when over-voltage is detected;... -
Page 4: Product Introduction
1.2 Product Introduction Adapter onnector Magnet (bottom) ON / OFF... -
Page 5: Instructions For App Of Wi-Fi Camera (For Android System)
Attention ! 1. To protect the battery from damage, please charge it to 75% of capacity before storaging it for a long period of time, and charge it again to 75% within the next 150 days. 2. After stored for a long time, the initial charging current might be relatively low, but it will recover after a while. -
Page 6: Wi-Fi Hotspot Connection
2.2 Wi-Fi Hotspot Connection Methods / steps: Long press the power button of the Wi-Fi camera to turn it on. The Power Button Open “Settings” on your phone and enter the "WLAN" interface. If WLAN is off, please turn it on. Then Connect to the camera corresponding hotspot (such as the initial hotspot name: “WFC-xxx”). -
Page 7: Software Operation
2.3 Software Operation Methods / steps: Press the icon on the phone’s desktop to enter StreamVis, and then the main interface will display(see picture below). - Page 8 You can tap on the screen of the mobile phone, then you can see that there are four main configuration items displayed on the right function area of the main interface. Press the "Capture" button to take screenshot and save it in the album.
- Page 9 Press the "Video" button to record the current video and save it in the album. Press the "Album" button to review the screenshots and videos that have been saved in album before. Press the "Settings" button to open the Main Settings interface. There are four configurable items on this interface, including Quality, Mirror, Flip and Audio.
-
Page 10: Upgrade Of Camera Software
Configuration items Instructions Quality HD (1280*720) SD (704*480) (Resolution) CIF (352*240) ON (To open the mirror image) Mirror OFF (To close the mirror image) ON (To flip the screen vertically) Flip OFF (To stop flip the screen vertically) ON (To turn on the audio) Audio OFF (To turn off the audio) 2.4 Upgrade of Camera Software... - Page 11 First of all, it will search and check whether the network is available or not. If the network is not available, there will be a pop-up showing on the screen to ask you to get internet available.Then click the button"OK" and the interface will jump to the "WLAN"...
- Page 12 If the network is available, the application will connect to Server and then is consistent with the version of current software package of the camera. If so, the interface will prompt that the current version is the latest version. and if it is not consistent, the interface will prompt that that a new version is available for downloading.
- Page 13 If you click “CANCEL”, the upgrade process will stop. And if you click “CONFIRM”, the application will connect to Server and check whether the version of the upgrade package on the Server is consistent with the version of upgrade package which downloaded and saved in the mobile phone.
- Page 14 After downloading is finished, Wi-Fi will automatically connect to the camera hotspot. and then push the upgrade package to the camera. If it is consistent, start to push the upgrade package directly to the camera. After the upgrade package is pushed successfully, It will take some time for the camera.
-
Page 15: Instructions For App Of Wi-Fi Camera ( For Ios System)
then the upgrade process is finished. And the version number displayed in the bottom right corner of the interface has changed from the original version V1.1.73 build 181120 to the current version V1.1.76 build 181120. In addition, the upgrade function needs to be further improved. If you encounter an upgrade failure caused by an abnormal upgrade during the upgrade process, please upgrade repeatedly. -
Page 16: Wi-Fi Hotspot Connection
3.2 Wi-Fi Hotspot Connection Methods / steps: Long press the power button of the Wi-Fi camera to turn it on. - Page 17 The Power Button Open “Settings” on your mobile phone and enter the "WLAN" interface. If WLAN is off, please turn it on. Then Connect to the camera corresponding hotspot (such as the initial hotspot name: “WFC-xxx”)
-
Page 18: Software Operation
3.3 Software Operation Methods / steps: Press the icon on the phone’s desktop to enter StreamVis, and then the main interface will display(see picture below). - Page 19 You can tap on the screen of the mobile phone, and you can see that there is one main configuration item displayed on the interface. Press the "Settings" button in the function area to open the Main Settings interface. There are two configurable item on this interface, including Mirror and Flip.
- Page 20 A detailed description of the configuration items is shown in the following table. Configuration items Instructions ON (To open the mirror image) Mirror OFF (To close the mirror image) ON (To flip the screen vertically) Flip OFF (To stop flip the screen vertically)
-
Page 21: Upgrade Of Camera Software
3.4 Upgrade of Camera Software 3.4.1 Flow chart Click ”update” Connect to server (Network availability) Check whether there is downloaded Check whether there is upgrade package in mobile phone downloaded upgrade (must download it once, otherwise package in mobile phone the local storage will be empty.) Check whether the software version on... - Page 22 3.4.2 Specific Upgrade Procedures Firstly, open StreamVis and then press the button to enter the Main Settings interface. Press “Update” on the bottom of the configuration list to start the upgrade procedure. First of all, it will check whether the network is available or not. If the network is not available, it will check if there is any downloaded upgrade package in APP.
- Page 23 - If there is an upgrade package, as shown below, you can press “Confirm” to continue upgrading. If you press “Cancel”, the upgrade procedure will be cancelled. Press ”Confirm” and it will start pushing the upgrade package to the camera:...
- Page 24 When the pushing is successful, you can re-connect to the camera after it reboots. If the network is available, it will also check whether there is any upgrade package in the APP or not. - if not, it will start downloading upgrade package from server directly.
- Page 25 - if yes, then it will check whether the version in the server is consistent with the current version or not. If it is consistent, the process can be continued without downloading upgrade package. - If not, it will start downloading upgrade package from server.
- Page 26 When downloading is finished (or the version in the server is consistent with the current version), there will be a pop-up showing on the screen to ask you to connect to the Wi-Fi camera. If you press ”Cancel”, the update process will be cancelled. After the Wi-Fi camera is connected, press “Confirm”...
- Page 27 If the camera is not connected, there will be a pop-up showing that the Wi-Fi connection is failed.
- Page 28 If the camera is connected, it will start pushing the upgrade package to the camera. When the pushing is successful, the prompt is showing as picture below: If you press ”OK”, you can re-connect to the camera after it reboots.
- Page 29 CAMERA SPECIFICATION Parameters ℃ ℃ ℃...
- Page 30 μ μ ； Night vision distance 8 ~10m Audio □ Yes □ No Viewing Angle □ 110° □ 90° □ 60° IR-Cut □ Yes □ No...
