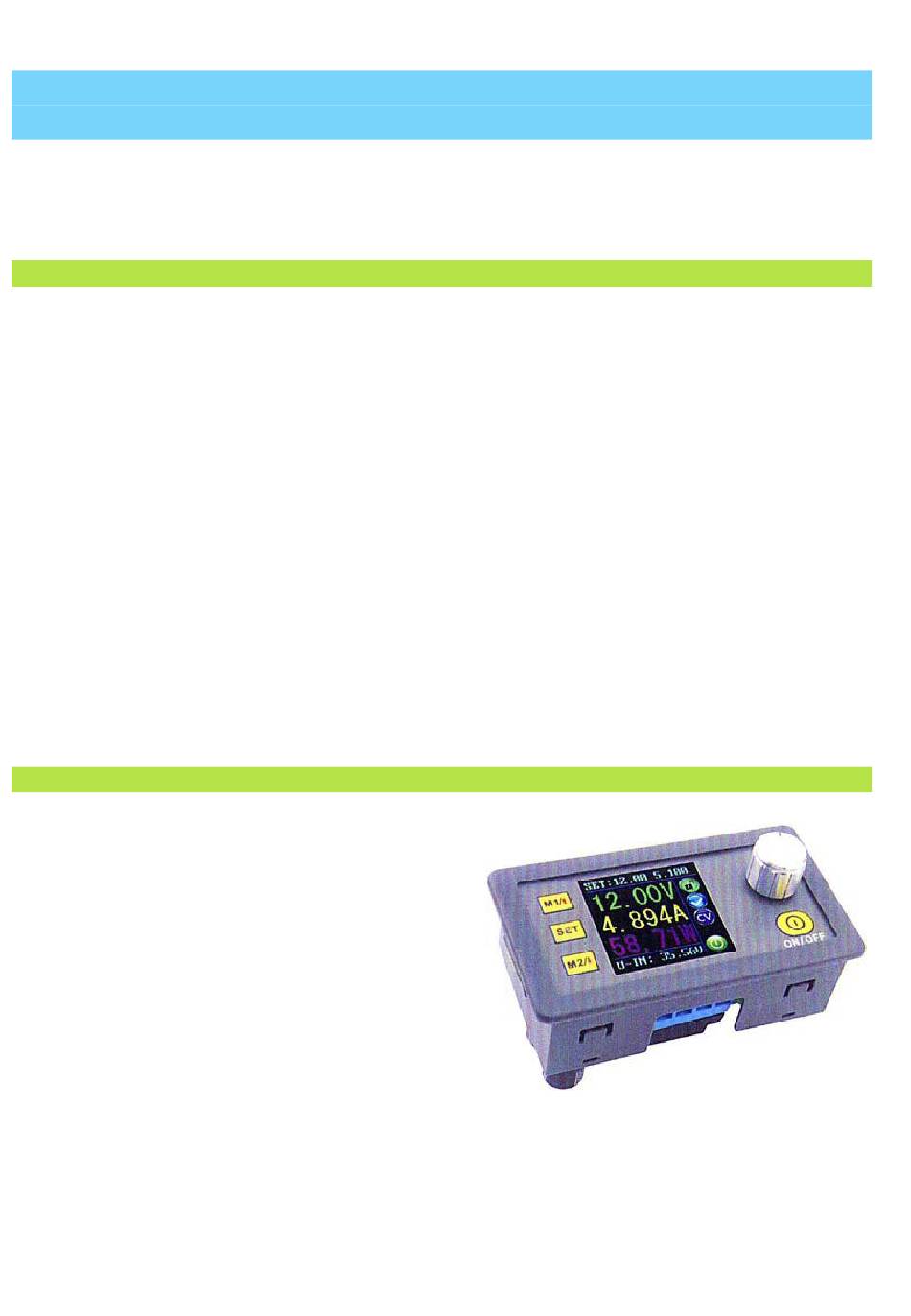

Please read this instruction carefully before using

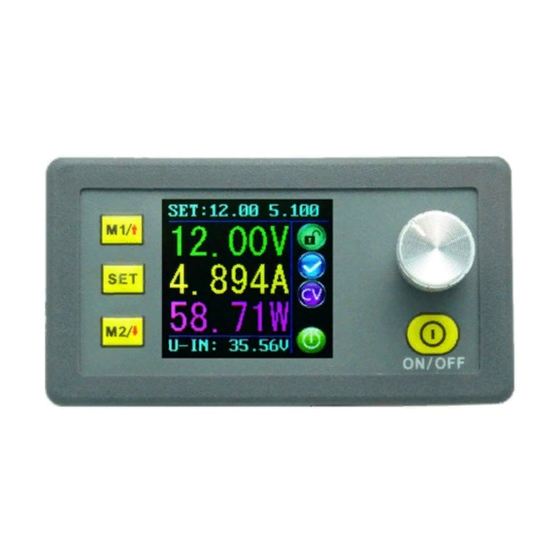

Constant Voltage Constant Current Programmable
The constant voltage and constant current programmable control power
supply module put the collection of analog integration and digital control
functions in one. Its adjustable output voltage range is 0-32.00V, step by 0.01V.
Its adjustable output current range is 0-5.000A, step by 0.001 A. This module
has power-down stored function and can store 10 groups preset value. And it
also has the function of extracting quickly two groups stored value. Compared
with the traditional analog power supply, it is more convenient to quickly extract
the voltage or current required. LCD display on the module has the function
digital voltmeter and ammeter. You can view the preset voltage, input voltage,
output voltage, the preset current, output current, output power, etc. on the
output state remind area, you can see that output opens or not, the state of
constant voltage and constant current, output is normal or not, the key is locked
or not, and the current data groups that is being used. On the setting data
interface, you can adjust over-voltage value, over-current value, over-power
value, data set and LCD brightness. This module has many advantages, small
size, advanced function, good visual effect, high operability, high-precision,
being used independently, being inset into the device and been widely applied.
Input voltage range: 6-40V
Output voltage range: 0V-32.00V
Output current: 0-5.000A
Output power range: 0-160W
Product Weight: 86g
Output voltage resolution: 0.01V
Output current resolution: 0.001 A
Product Dimension: 79mmX43mmX48mm
Open size: 71mmX39mm
Output Voltage accuracy: ± (0.5% + 1 digit)
Output Current accuracy: + (0.5% + 2 digits)
Note:
You must make sure that input voltage is 1.1 times higher than output
voltage. Under large current circumstances, pay attention to heat elimination.
Control Supply Power Module
General Information
Technical parameters
Product model: DP30V5A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RD DP30V5A
Summary of Contents for RD DP30V5A
- Page 1 Please read this instruction carefully before using Constant Voltage Constant Current Programmable Control Supply Power Module Product model: DP30V5A General Information The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one.
- Page 2 Connection description IN+: Input positive OUT+: Output positive IN-: Input negative OUT-: Output negative Note: Input voltage range is 6-40V and 40V is the limit voltage; please leave a room to use, or else it will be burnt. The input must be DC-DC, not AC 220V, or else it will be burnt too.
- Page 3 Operating instructions When connect the power supply, the screen shows welcome window firstly and then comes into main interface. On the main interface, the output set voltage value and the output set current value is on the top of the screen. The big font value on the left are the actual output voltage, the actual output current and the actual output power.
- Page 4 Data setting and store the specified data group. Page up or page down to M-PRE, and then press shortly the coding potentiometer to enter into the status of choosing the data groups. Turn coding potentiometer to choose the data group you need to view. Then the data group you need will be displayed.
