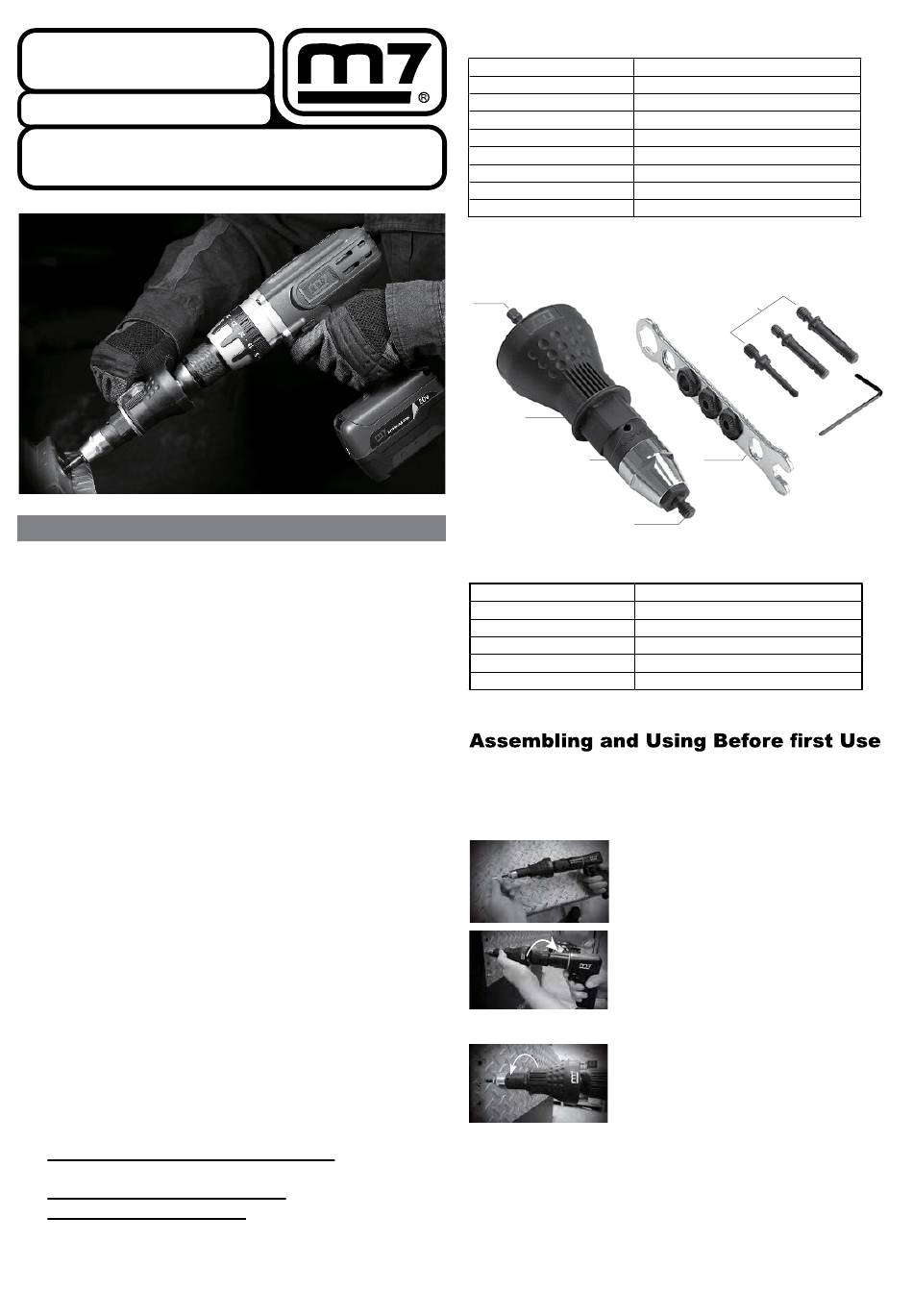

M7 PB-9006 User Manual

User's Manual
PB-9006
RIVETER NUT ADAPTOR

Safety Instructions

Please note the following safety instructions to avoid
Please note the following safety instructions to avoid
malfunctions,damage or physical injury:
malfunctions,damage or physical injury:
1. Please observe all safety notes of the used driving tool
1.Please observe all safety notes of the used driving
(drill.)
tool(drill)
2. Always switch off the driving tool and pull the power
2.Always switch off the driving tool and pull the power
plug before maintaining the blind rivet attachment, e.g.
plug before maintaining the blind rivet attachment, e.g.
changing the nose pieces or when not in use.
changing the nose pieces or when not in use.
3. Only use the blind rivet attachment as indicated in
3.Only use the blind rivet attachment as indicated in this
this manual for setting blind nuts. The unit is not
manual for setting blind nuts. The unit is not designed for
designed for continuous, professional use.
continuous, professional use.
4. Always secure the work piece.
4.Always secure the work piece.
5. Do not wear loose clothing or jewellry. Tie up hair or
5.Do not wear loose clothing or jewellry. Tie up hair or
clothing so it cannot get caught in moving parts.
clothing so it cannot get caught in moving parts.
6. Only use the blind rivet attachment with the included
6.Only use the blind rivet attachment with the included
nosepieces.
nosepieces.
7. Should the unit become damaged do not use it and
7.Should the unit become damaged do not use it and have
have it repaired by a professional or contact our
it repaired by a professional or contact our customer
customer support department. Do not disassemble the
support department. Do not disassemble the unit or try
unit or try repairing it yourself.
repairing it yourself.
8. Suitable for aluminium, aluminium / steel and all steel
rivets.
9. Not suitable for stainless steel rivets.
10. Not for use with impact drivers
or drills in hammer mode.
PB-9006
Dimensions
Weight
Nosepiece
Hex Shank
Cordless Drill
Reversible electric
Reversible pneumatic
Min. Torque Strength
Max. rpm
1
2
4
3
1. Hex Shank
2. Housing
3. Nosepiece
4. Sight Window
5. Nosepiece
6. Wrench
Remove the unit and the accessory out of the
packaging . keep packaging materials Out of reach of
children.there is risk of suffocation
1. Thread the rivet nut onto the tool.
1
2. Position the rivet nut into the hole.
2
Ensure the drill is in forwards gear.
While holding the body of the
attachment to stop it from rotating, press
the trigger. This will fasten the rivet.
3. Change the drill to reverse then
3
press trigger. This will release the
tool from the rivet nut.
View the demonstration video at
www.mighty-seven.com
59mm x172mm(2-11/32" x 6-25/32")
280g=0.62 lbs
M3 M4 M5 M6
1/4" (6.35 mm)
12V 14.4V
Drill (Advice 500W)
Drill (Advice 3/8")
15 Nm = 11 ft/Ibs
1000 rpm
5
6
1/4 (6.35 mm)
PA+GF
M3
Blind Nut Loading
M4 M5 M6
1PC
