Summary of Contents for SPY JeepMeter

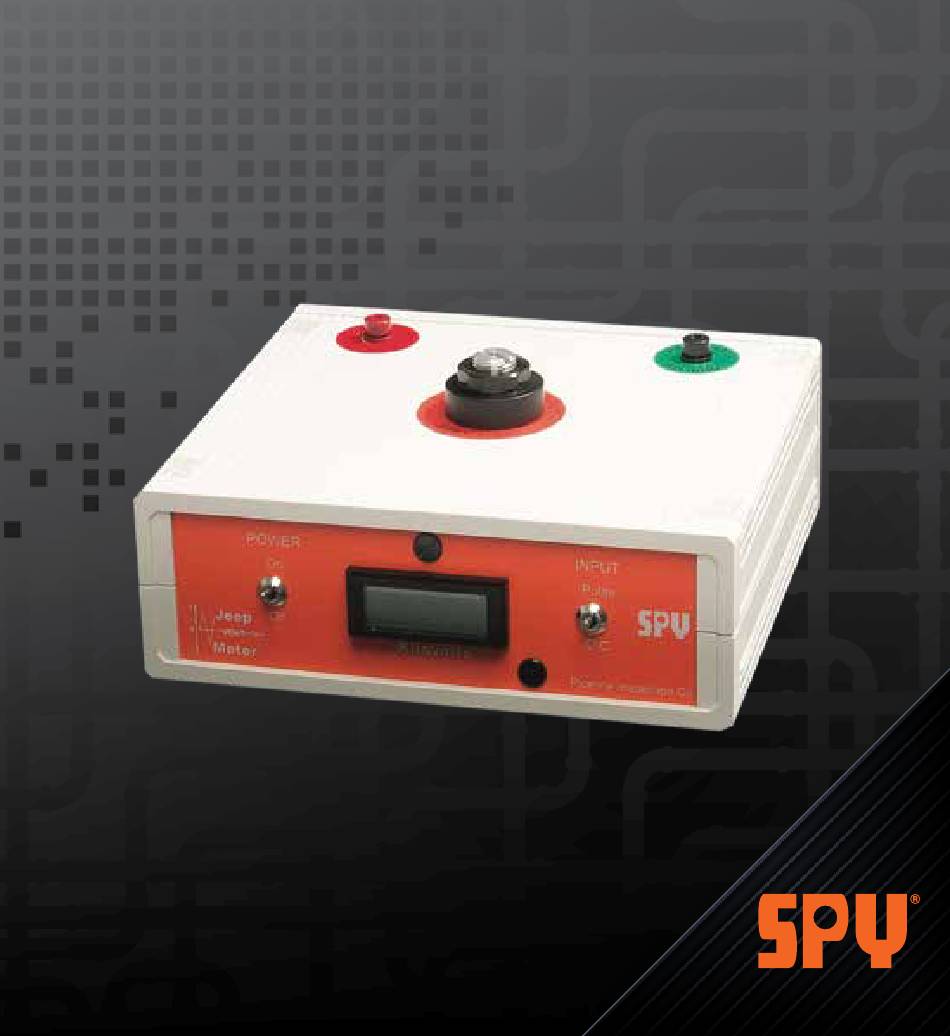

- Page 1 ® Jeepmeter o p e r at i n g i n st r u ct i o n s p i c lt d.com PIPELINE INSPECTION COMPANY...
- Page 2 Coating Inspection, ® JeepMeter and Pig Tracking Equipment has been serving companies all over the world for over 60 years. With the purchase of this high precision instrument you can now enjoy access to worldwide service and support only SPY and our vast Distributor network can offer.
-
Page 3: Table Of Contents
Principles of Operation ......5 JeepMeter Overview ......6 Battery Instructions . -
Page 4: Unit Calibration
Center due to the unique calibration process, test equipment utilized and properly trained SPY technicians. ® We DO NOT recommend using any other calibration service other than a SPY ® Authorized Service Center; using an outside service with technicians not trained to work on SPY brand equipment could damage the unit and if the enclosure is ®... -
Page 5: Principles Of Operation
The Model JM enables the operator to measure DC up to 7,000 kV or pulse up to 35 kV. Holiday detectors output both types of waveforms depending on the type of coating they are being used on. For example, the SPY 785 and ®... -
Page 6: Jeepmeter Overview
This JeepMeter measures both pulse and DC voltage output. For pulse type holiday detectors, used to inspect shrink sleeves, tapes, coal tars, etc, the JM will measure up to 40 kV. For DC holiday detectors, used to inspect thin film epoxy coatings, the DC range of JM measures up to 5 kV. - Page 7 On/Off Bat Switch Input Pulse/DC Bat Switch Output Voltage LCD Display/ High Voltage DC Input Terminal Battery Indicator High Voltage Pulse Input Terminal Extendable Feet Quick Change Battery Ground Cable Compartments 10 High Voltage Cable Ground Input Terminal p i c lt d.com...
-
Page 8: Battery Instructions
If the battery discharges to a low level the JeepMeter display will begin to flicker or will not come on, at this point the JeepMeter is not properly measuring voltage and the batteries should be changed to two new 9 volt batteries. -
Page 9: Controls & Testing Instructions
controls POWER INPUT Pulse Kilovolts Pipeline Inspection Co. CAUTION! This meter is used to measure low energy high voltage. The operator may be subject to electrical shock if the meter is not properly grounded and / or operated in accordance with instructions and procedures described within these operating instructions. -
Page 10: Jeepmeter Operation
STEP 2: To test DC holiday detector connect the high voltage (red cable) test lead to the DC input terminal on the top left of the JeepMeter. To test pulse holiday detector connect the high voltage (red cable) test lead to the pulse input terminal on the top center of the unit. - Page 11 STEP 7: After, and ONLY AFTER, double checking that all the connections in Steps 1 through 6 are correct, place the JeepMeter power switch to “ON” position. STEP 8: After the digital readout settles to zero then power on the holiday detector by switching the holiday detector to the “ON”...
-
Page 12: Troubleshooting Guide
troubleshooting guide PROBLEM POSSIBLE SOLUTION CORRECTION METHOD NO VOLTAGE Wrong Setting The JM can measure two types of READING Selected high voltage, DC and Pulse. Make sure the correct type is selected on the Pulse / DC switch. The 780 is DC. The 785 and 790 are Pulse. -
Page 13: Technical Specifications
MODEL JEEPMETER Measurement Type DC/Pulse Voltage Range 0-35 kV Pulse and 0-5 kV DC Measurement Accuracy ±5% @ 75 deg F Display Type Battery Two 9 Volt Batteries Unit Weight (w/ battery only) Unit Dimensions (L x W x H) 8.25”... -
Page 14: Maintenance & Repair
& repair If maintained the SPY® Model JM JeepMeter will offer you years of dependable operation. Regular care and maintenance of the unit is a requirement of good quality preventative maintenance practices. WARNING! This voltmeter does not contain any user- serviceable parts;... -
Page 15: Warranty
Pipeline Inspection Company, hereafter referred to as (SPY ) warrants that ® Model JM JeepMeter shall, under normal use and service, be free ® from defects in material and workmanship. SPY ‘s entire warranty obligation ® shall be limited to, at SPY ’s option, the repair or replacement free of charge... -
Page 16: Related Equipment
MODEL PJM MODEL DCPJM ® ® POCKET JEEPMETER DC POCKET JEEPMETER Please call our office at (713) 681-5837 or email us at sales@picltd.com for more product details or to place an order. p i c lt d.com... - Page 17 User notes p i c lt d.com...
- Page 18 User notes p i c lt d.com...
- Page 19 p i c lt d.com...
- Page 20 PIPELINE INSPECTION COMPANY p i c lt d.com...
