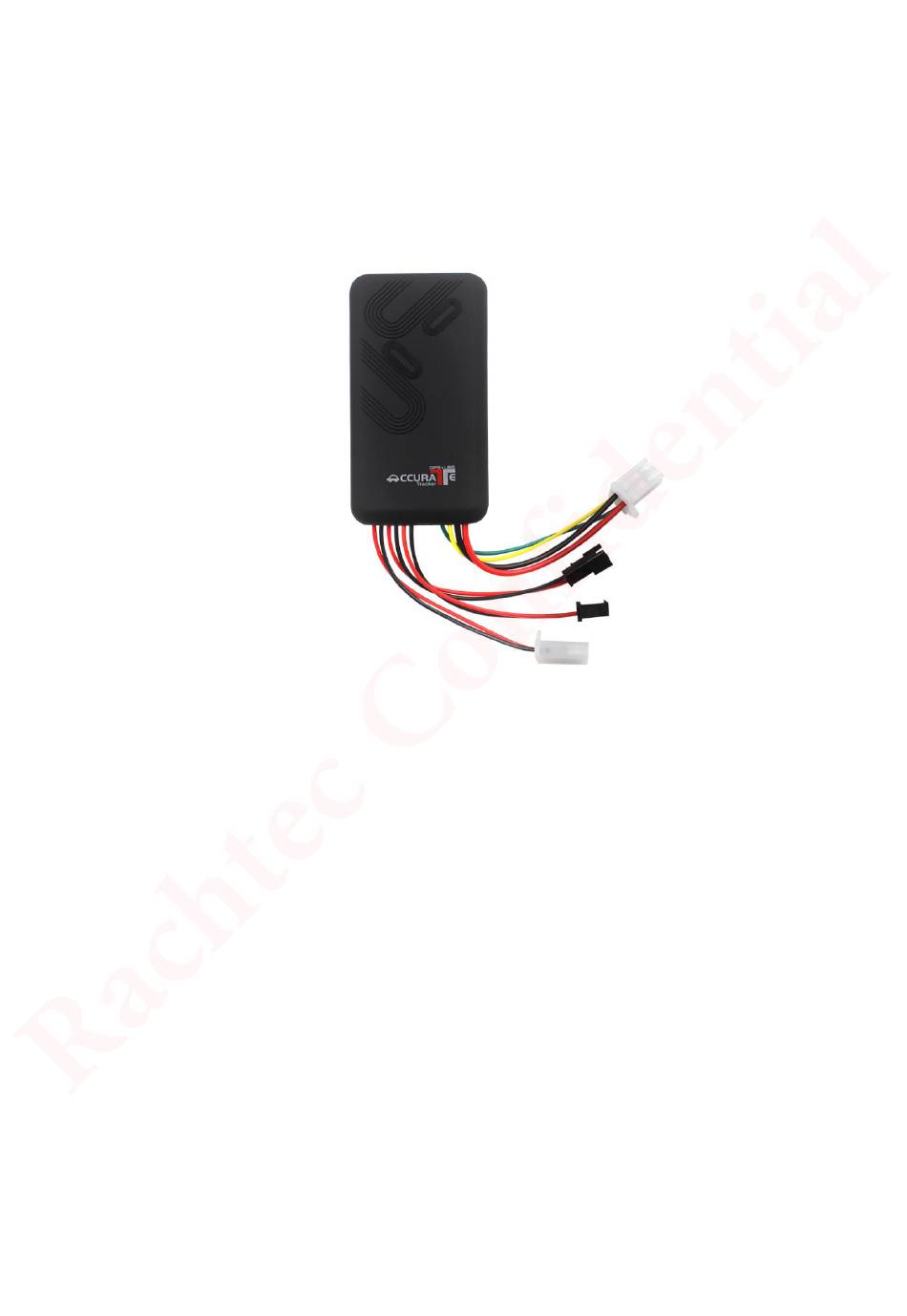

3G GPS tracker RV301
User manual
Summary
Working based on HSDPA/UMTS/EDGE/GPRS/GSM network and GPS, RV301 can anti-theft, locate, monitor
and provide urgent service to remote targets. It is featured with compact and use-easy characteristics and mainly
used for monitoring, locating and tracking the car, the ship, the train and other mobile vehicles.
At the same time, it supports data transmission, making it available for wide-area monitor, fleet management,
urgent dispatch, traffic safety management and many other different fields.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RV301 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rachtec RV301

  • Page 1 User manual Summary Working based on HSDPA/UMTS/EDGE/GPRS/GSM network and GPS, RV301 can anti-theft, locate, monitor and provide urgent service to remote targets. It is featured with compact and use-easy characteristics and mainly used for monitoring, locating and tracking the car, the ship, the train and other mobile vehicles.
  • Page 2 1. Features *Support HSDPA/UMTS/EDGE/GPRS/GSM network *Support one channel engine stop control relay *Support ACC line detection * Support SMS * Integrate anti-theft, location, real-time control, monitor, urgent alarm and tracking function. 2. Check part lists The following items are attached to your product. Please check them before use. 3.
  • Page 3 4. Specification Dim. (mm) 97 x 51 x 15 Weight (g) Network HSDPA/UMTS/EDGE/GPRS/GSM EDGE/GPRS/GSM 850/900/1800/1900 MHz Band HSDPA/UMTS 850/1900MHz or 900/2100 MHz GPS sensitivity -153dBm GPS accuracy Cold status 45s-90s Time to First Fix Warm status 50s Hot status 15s Work voltage 8V-32V Storage Temp.
  • Page 4 *Power Wires connection 1) 4P power red wire connects to vehicle power positive + 2) 4P power black wire connects to vehicle power negative - 3) 4P power yellow wire connects to fuel pump or electricity control wires 4) 4P power green wire connects to ACC ignition wire 5) Other wires connecting to relative accessories in package.

  • Page 5: Troubleshooting

    6.4 Data transfer channel setting: Generally, users don’t need to set the server parameter before use, as the factory has set the right server parameter. If your RV301 can’t connect to server, you can do following operation: 6.4.1 Set an IP address and port: Send SMS “#adminip #IP address #port# ”...
