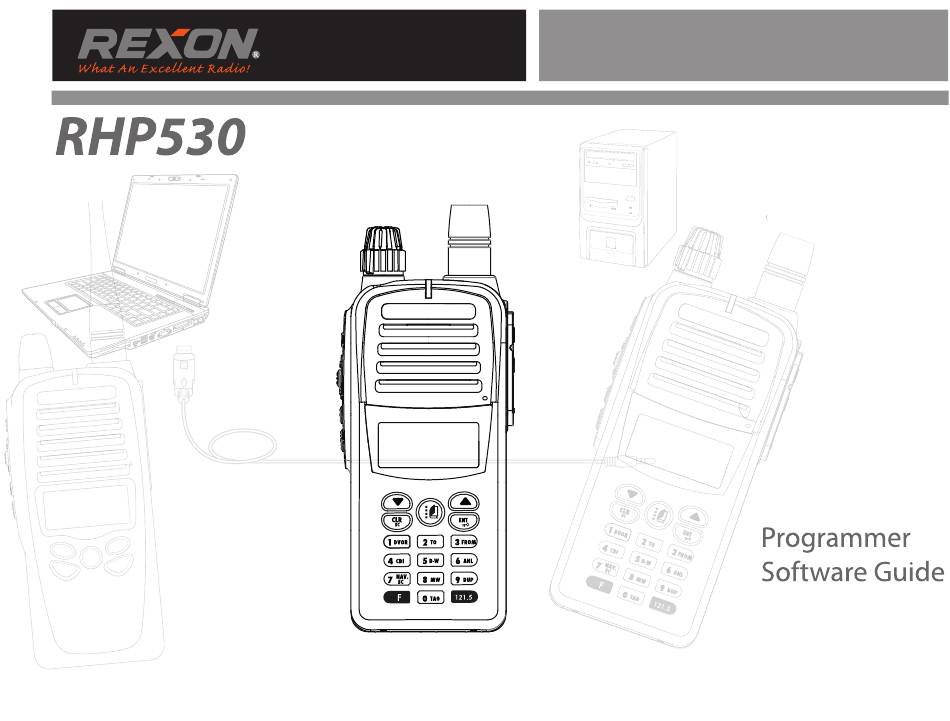

Summary of Contents for REXON RHP530
-
Page 2: Table Of Contents
CONTENTS 1. Unpacking! 1.1. System Requirements! ----------------------------------------------------- 1.2. Installing Programming Software! --------------------------------------- 1.3. Arrangement To Program! ------------------------------------------------ 2. Getting Started! 2.1. Launch Programming! ----------------------------------------------------- 2.2. Open saved file! ------------------------------------------------------------- 2.3. Port setting! ------------------------------------------------------------------- 2.4. Programming! ---------------------------------------------------------------- 2.5. Save As Setting! ------------------------------------------------------------- 3. -
Page 3: Unpacking
1.3. Arrangement To Program Connect the RHP530 as illustrated. (1) Hold the power on/off button to turn the RHP530 off. (2) Pull external spk/mic rubber out. (3) Plug programming lead into 3.5mm earpiece. (4) Connect end of the serial cable to PC’s serial port with 25 –9 adaptor or used USB type. -
Page 4: Getting Started
Com 1. Select appropriate serial port and click on “OK” . • Serial Number – set serial number to manage all RHP530 you had. Type serial number on field as well as set auto number increase if desired. -
Page 5: Save As Setting
PROGRAMMING GUIDE V1.31 2.5. Save As Setting On the menu “File” click “Save as”, the Save RHP530 setting as window will appear. To type the filename in the appropriate box (file name usually)., then press “Save” IT’S RECOMMENDED TO SAVE ALL THE PROGRAMMED DATA... -
Page 6: Setting
Start programming software and click Setting –>General. following dialog box appear 3.1.1. Welcome Greetings This option sets show defined characters after the RHP530 turns on. To type word on field (up to 8–digit characters). 3.1.2. Power Save This option enables power saving scale ( from 1:1/ 1:2 or 1:3). -
Page 7: Keys Define
PROGRAMMING GUIDE V1.31 4. Keys Define • Light on/off – toggles backlight on or off • VOX on/off – toggles VOX option on or off. Side keys (A,B,C & D), allows user to assign a function is activated immediately. • Function key – assigns this key as function key. •... -
Page 8: Menu Definitions
PROGRAMMING GUIDE V1.31 4.2. Menu Definitions • NAV Channel Step Select – the option sets frequency step on NAV channel. Menu define allowed user to operate specific options in menu • COM Channel Step Select – the option sets frequency step list. -
Page 9: Power On Initialization
4.3.2. Scan Type • Busy Scan– the RHP530 always land on busy channel unless RHP530 will be initialized to enable when power on. channel free. When the channel is free, RHP530 resumes • Key Beep– enables the beep sound while pressing the scan after the timer expired. -
Page 10: Bluetooth Initialize Setting
• Power On Blue-Tooth is On– the blue-tooth is initialized to on. • Pin Code– set 4 digts pair pin for pairing Blue-Tooth headset. • Key Define – PTT: this option switched RHP530 to transmit when power on/off button of Blue-Tooth headset is pressed once. -
Page 11: Memory Setting
PROGRAMMING GUIDE V1.31 Memory Setting • Weather Channel – sets weather channel on this memory number On the menu “Setting”, select “Memory”, Memory numbers THE WEATHER CHANNEL IS OPTIONAL ON MEMORY NUMBER. shown as following. PLEASE CONTACT WITH YOUR DEALER IF THE OPTION IS NOT APPEARED.
