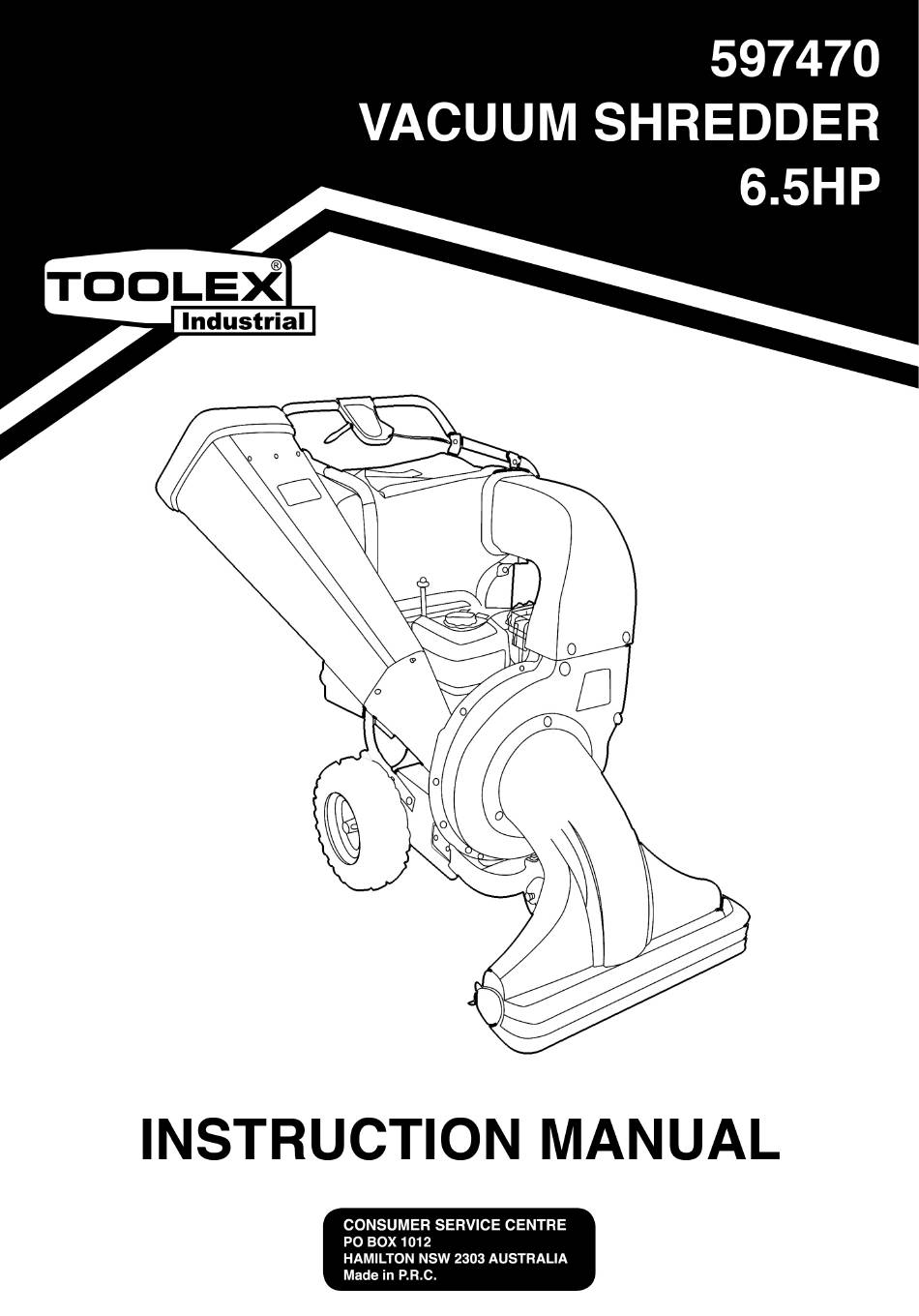

Summary of Contents for Toolex 597470
- Page 2 Read safety rules and instructions carefully before operation Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
- Page 3 II. Safe Operation Practice Warning: Engine exhaust, some of its constituents contain or emit chemicals known to cause cancer and birth defects or other reproductive harm. DANGER: this machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury.
- Page 4 moving parts have come to a complete stop. Disconnect the spark plug wire and ground it against the engine. IV .Preparation a. Thoroughly inspect the area where the equipment is to be used. Remove all rocks, bottles, cans, or other foreign objects which could be picked up or thrown and cause personal injury or damage to the machine.
- Page 5 b. Before starting the machine, make sure the chipper chute, feed intake, and cutting chamber are empty and free of al debris. c. Thoroughly inspect all material to be shredded and remove any metal, rocks, bottles, cans, or other foreign objects which could cause personal injury or damage to the machine.
- Page 6 b. Check bolts and screws for proper tightness at frequent intervals to keep the machine in safe working condition. Also, visually inspect machine for any damage and repair, if needed. c. Before cleaning, repairing, or inspecting, stop the engine and make certain the impeller and all moving parts have stopped.
- Page 7 Figure1. Figure 1 b. Place nozzle in position over three studs on unit. c. Secure with wing nuts just removed. Attaching the handle a Remove the 4 screws fixed on both sides of the handle，turn the handles 180 degree backward. See Figure 2. Figure 2 a.
- Page 8 c. Replace the hex bolts, washers and flange nuts to affix the support bracket to the handle assembly. See Figure 3。 Figure 3 d. Follow by tightening all hardware securely first on the chipper chute, then on the support bracket, and finally on the handle。 Attaching the Bag a.
- Page 9 Allow twigs and small branches up to 3” in diameter to be fed into the impeller for chipping. Tamper Plug This plug is inserted into the chipper chute to push twigs and small branches towards the impeller blades without endangering your hands. Gear Adjust Handle Put the handle in the forward gear position 1or 2, the machine will go forward.
- Page 10 engine’s speed and stops the engine. Refer to the engine manual for further details. Engine Controls See the separate engine manual for the location and function of the controls on the engine. Stop the engine a. Move throttle lever to STOP or OFF position. b.
- Page 11 Figure 7 Using The Vacuum Shredder Place both hands on top of upper handle to push unit over yard waste. Yard waste such as leaves and pine needles can be vacuumed up through the nozzle for shredding. After material has been shredded by the blades on the impeller assembly, it will be discharged into catcher bag.
- Page 12 Check engine manual for correct plug type and gap specifications. Nozzle Door Height Adjustment The nozzle adjustment levers are located on each side of the nozzle door. The nozzle door can be adjusted to one of five positions, ranging from 1/2”...
- Page 13 the screen. NOTE: Be certain to reassemble the flail screen with the curved side down. g. Reattach the discharge chute assembly with the hardware previously removed and attach the bag to the unit.. Sharpening or Replacing Chipper Blades NOTE: When tipping the unit, empty the fuel tank and keep engine spark plug side up. Disconnect spark plug wire and ground it against engine.
- Page 14 . Drain the gasoline and oil from the unit. . Remove the three wing nuts that secure the nozzle to the outer housing and remove the nozzle. . Remove the plastic cover and metal cover from front of the engine by removing the screws.
-
Page 15: Troubleshooting
Trouble shooting Problem Cause Remedy Engine fails to 1. Spark plug wire disconnected. 1. Connect wire to spark plug. start 2Choke not in CHOKE position (if 2. Make choke lever to CHOKE equipped). position. 3. Fuel tank empty or stale fuel. 3. - Page 16 3. Vent in gas cap plugged. 2. Clean fuel line fill tank with 4. Water or dirt in fuel system. clean, fresh gasoline. 5. Dirty air cleaner. 3. Clear vent. 6. Carburetor out of adjustment 4 .Drain fuel tank. Refill with fresh fuel.
- Page 18 Description Material Spec Description Material Spec 1 lever axes spring ring 2 nozzle rear wheel axes 2# 3 hex bolt M12*13 big gear QT600-3 4 rear wheel 19〞 spring roll pin 6*12 5 hemicycle pin bottom cover Steel Q235 6 axle long bush F0113J tray spring bracket Steel Q235...
- Page 19 tension wheel cold rolled steel wheel support Q235 tension wheel blade cover plate cold rolled steel t1.5 nozzle support plate cold rolled steel Q235 Q235 impeller case ZG270-500 leaf collect plate neoprene supporter impeller bracket steel 45 nozzle support cold rolled steel angle...
