Summary of Contents for Sinlion 4850

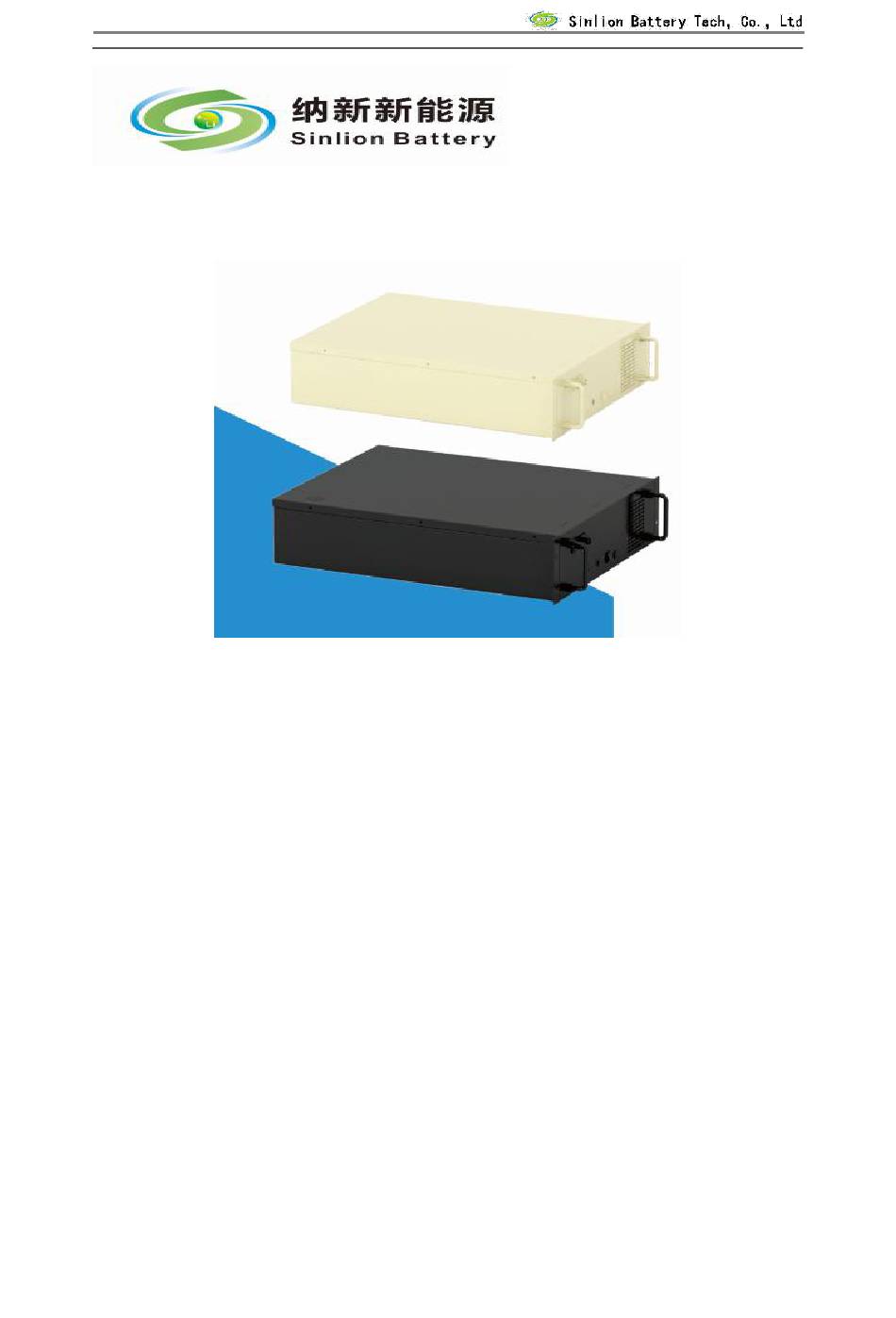

- Page 1 Li-ion Battery User Manual 4850Energy Storage Module User Manual...
-
Page 2: Table Of Contents
Li-ion Battery User Manual Index 1．Product specification............3 2． Appearance and size..............4 3．Product introduction ...............5 3.1 Panel introduction...........5 3.2 Electrical connection..........6 3.3 Definition of communication interface...8 3.4 Module parallel solution........9 4．Safety precautions ...............11... -
Page 3: 1．Product Specification
Li-ion Battery User Manual 1．Product specification 48V50AH System specification Nominal Characteristics Rated voltage V 51.2 Nominal capacity AH Norminal Energy WH 2560 Mechanical Characteristics Weight kg Length mm Width mm Height mm 132(3U) Cooling type Natural air cooling Cabinet Installation method installation Protection mode IP21... -
Page 4: 2． Appearance And Size
Li-ion Battery User Manual 3.19 Standby power <10mA Dormancy power <1mA 4850Energy storage module use 25Ah soft-pack Battery Core ,Packing as LiFeCoPO4 2P16S. 2.Appearance and size Module Size：W440mm*H132.5mm*D591.7mm ：30kg Module Weight ： Installation method Cabinet installation ： Protection mode IP21 3.Product introduction 3.1 Panel introduction... -
Page 5: Electrical Connection
Li-ion Battery User Manual RUN for running indicator,always green bright when charging and discharging,green bright flicker on standby;ALM is a warning indicator ,Red bright flicker when there's alarm. OUT+ is an orange special connector for energy storage,OUT- is a black special energy storage connector.levels of protection is IP67. - Page 6 Li-ion Battery User Manual 3.2.2 Electrical connection Hybrid Inverter Communication cable 4850Energy storage module A schematic diagram of the connection between 4850 energy storage module and energy storage inverter A schematic diagram of energy storage inverter interface...
- Page 7 Li-ion Battery User Manual The picture above is a manufacturer's energy storage inverter,the connection form and cable specification of the energy storage module are shown in the following table: Hybrid Inverter Battery Connection Functional code Interface name Cable specification description BMS communication 8 core shielded RS485/CAN...
-
Page 8: Definition Of Communication Interface
RS485-A RS485-B ISOGND The 4850 energy storage module panel has two RJ45 communication interfaces. Each communication interface includes the communication mode of CAN and RS485, and the 8 core shielded twisted pair wire is connected with the energy storage inverter. -
Page 9: Module Parallel Solution
Li-ion Battery User Manual 3.4 Module parallel solution 4850 the energy storage module can be used in parallel and the maximum number of parallel units is 6. Parallel installation steps: 1.the Master and the slave CAN communication have been connected. - Page 10 Li-ion Battery User Manual Code Function code Frame ID data0 data1 data2 data3 data4 data5 data6 data7 1：Set the number the number of slave of slave machines machines 2： Set the address the address of slave of slave machines machines 3：Set the equipment 0: slave...
-
Page 11: 4．Safety Precautions
Li-ion Battery User Manual 4．Safety precautions Safety precautions It must be operated by professional electrical personnel or trained technicians. Ensure that the power switch is disconnected during installation. Please check the material carefully before installation. If there is any missing or damaged, please do not install dangerous. The installation position requires waterproof, moisture proof and good heat dissipation.
