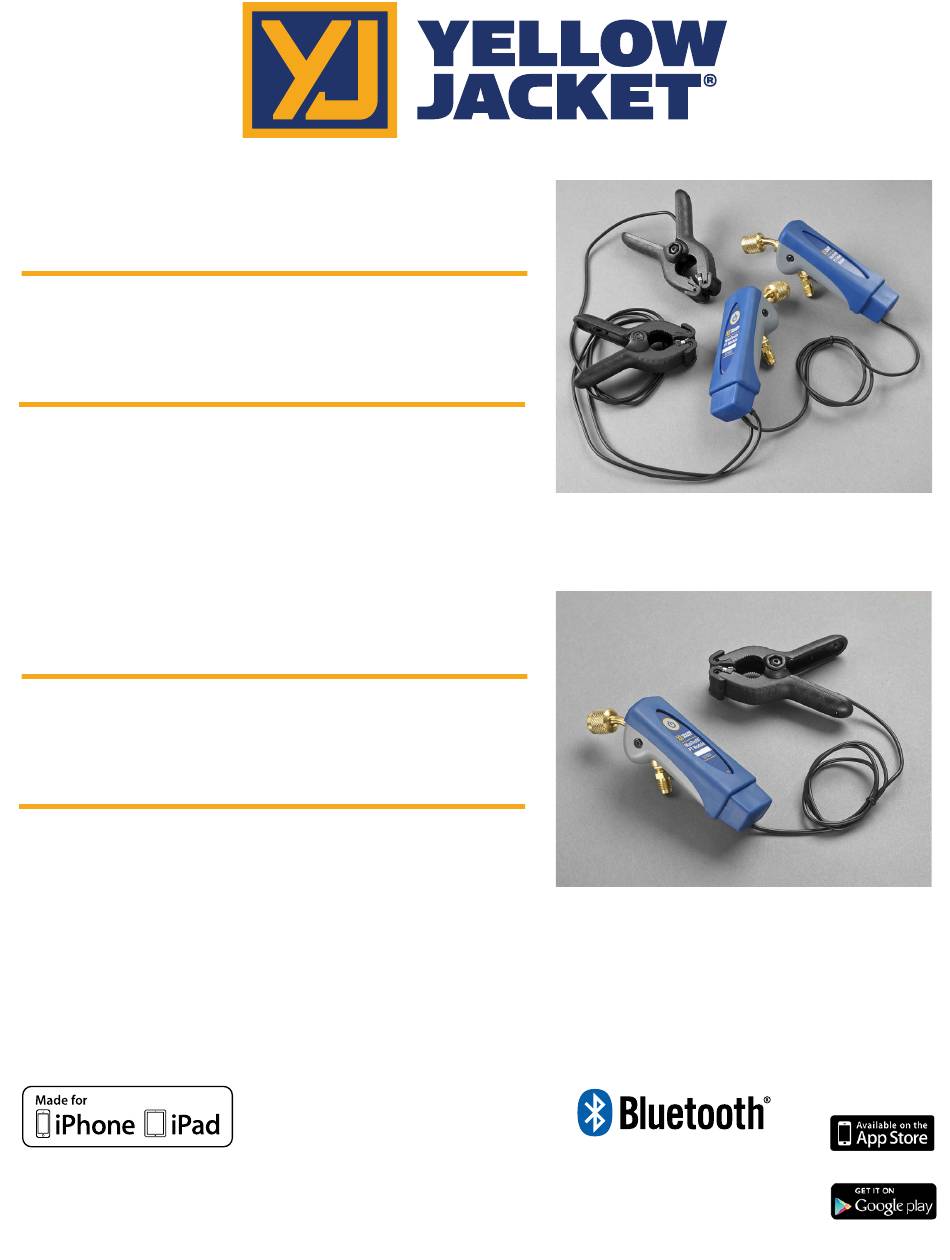

ManTooth
Wireless Digital P/T Gauge
ManTooth
Wireless Digital P/T Gauge
Made for iPhone 6 Plus, iPhone 6,
iPhone 5s, iPhone 5c, iPhone 5,
iPhone 4s, iPhone 4, iPad Air 2, iPad Air,
iPad mini 3, iPad mini 2, iPad mini, iPad 4,
iPad (3rd generation), iPad 2
Dual Pressure
™
Single Pressure
™
User's Manual
"Made for iPhone" and "Made for iPad"
mean that an electronic accessory has been
designed to connect specifically to iPhone,
or iPad, respectively, and has been certified
by the developer to meet Apple
performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and regulatory
standards. Please note that the use of this
accessory with iPhone, or iPad may affect
wireless performance.
iPhone, iPad and Retina are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad Air
and iPad mini are trademarks of Apple, Inc.
Android and Google Play are trademarks of Google Inc.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Ritchie Engineering is under license.
Other trademarks and trade names are those of their
respective owners.
Advertisement
Table of Contents
Related Manuals for Ritchie Yellow Jacket ManTooth Series
Summary of Contents for Ritchie Yellow Jacket ManTooth Series
- Page 1 Bluetooth SIG, Inc. and any use or its compliance with safety and regulatory of such marks by Ritchie Engineering is under license. iPad mini 3, iPad mini 2, iPad mini, iPad 4, standards. Please note that the use of this...
-
Page 2: Safety Information
The instrument contains no internal user serviceable parts • Do not open the instrument. • Have the instrument serviced only by Ritchie Engineering Co. or authorized service centers. • Do not use the instrument if it operates Safety Information abnormally. Protection may be impaired. - Page 3 refrigerant vapors venting from hoses this could damage the circuitry and/or towards the skin. battery. • • Only use with refr igerants approved for Maximum Working Pressure: 700 psia (4.83 MPa) use with the ManTooth PT Module. Use • of unapproved refrigerants may cause Because this instrument allows for damage to the ManTooth PT Module.
- Page 4 Android phone or tablet running Android 4.0.3+ PT Module” on the label not the one that says (Ice Cream Sandwich or later). To connect your “ManTooth PT Tether Module”. The module ManTooth PT Module to your phone or tablet will go through a brief start up sequence then the two must first be paired to one another.
-
Page 5: General Settings
Connected” the light will continue to blink blue. Android This is normal. ManTooth RSA App This section will go over the various functions, settings, and procedures of the ManTooth RSA Pressure/Temperature App. After pairing your Apple iOS phone or tablet to your ManTooth PT Module it should show up as either “Connected”... -
Page 6: Service Management
will all be deleted. Deleted locations and associated screen shots can not be retrieved. Similarly if you delete equipment from a location the screen shots associated with that equipment will also deleted. Deleted equipment and associated screen shots can not be retrieved. -
Page 7: Service History
power button(s) and want to turn the power Service History completely off. Calibrate Device Readings This gives you the option to adjust the calibration of your ManTooth PT Module’s pressure readings or temperature readings away from the factory defaults. Restore Factory Defaults This will clear any calibration adjustments that have been done on the ManTooth PT Module since it left the factory. -
Page 8: Start Session
Start Session Set Elevation Setting the elevation will enable your ManTooth RSA app to correct for elevation pressure variations allowing for more accurate pressure readings. You may either use your phone or tablet’s built in GPS to determine your elevation or input the elevation manually by taping on the elevation and entering your elevation above sea level in feet. - Page 9 multiple pieces of equipment associated with Apple iOS Android them so you can keep track of each individual unit at locations that may have more than one system. Saved session data will be saved to “Session History” in the app’s main menu and sorted first alphabetically by business name or customer last name, then alphabetically by assigned equipment name, and lastly by the...
- Page 10 Before starting the session you have one more chance to check to make sure that the pressure transducers are zeroed. While in the “Attach Devices” screen is the appropriate time to connect your ManTooth PT Module to your system. Connecting the ManTooth PT Module to the system before beginning your session will also ensure that the average, minimum, and maximum readings are accurate.
- Page 11 Refrigerant superheat enter the outdoor dry bulb The refrigerant for the session can be changed temperature and the indoor wet bulb by taping on the refrigerant and selecting the temperature. The app will then take this data refrigerant that is in the equipment you are and automatically calculate the target currently working with.
- Page 12 all the way back to the home screen of the ManTooth RSA app. ManTooth™ PT Module Once you choose to save the data you will be given the option to save and email which will save it to your session history and imbed the data into an email report for you to send to whoever you want, discard the snapshot you just took, or just save it to your session history...
- Page 13 8: ManTooth thermistor temperature clamp Device Name 9: Temperature probe jacks Your ManTooth PT Module’s name is displayed right on the label for easy reference. The name **Note** On 67002 tethered units numbers 1- takes the form of YJPT-XXXX-XXXX. The device 4, 5, and 9 are on the main unit only.
- Page 14 disconnecting your ManTooth PT Module from Temperature 0.1°F or °C the system. Display Resolution ManTooth Thermistor Clamp Temperature ±0.2°C (±0.36°F) The thermistor pipe clamp probe is capable of Accuracy clamping to and measuring the temperature of (Instrument) pipes ranging in size from ¼ inch to 1 ⅜ inches. Working -4°F to 160°F Limited by The probe is capable of measuring with an...
- Page 15 transducers System Very small internal volume attachment minimizes refrigerant loss during system analysis. Standard manifolds and hoses can lose over 50 times more refrigerant with each connection Pressure Simple single button zeroing at Zeroing the start of each session Elevation Enter elevation at the start of Compensation the session for effortless psia...
- Page 16 Warranty Policy The YELLOW JACKET ManTooth Wireless Digital P/T Gauge from Ritchie Engineering Company, Inc. is guaranteed to be free from material and workmanship defects for a period of two years. All other YELLOW JACKET products included in this package are guaranteed to be free from material and workmanship defects for a period of one year.
