Summary of Contents for CLP UNI 12

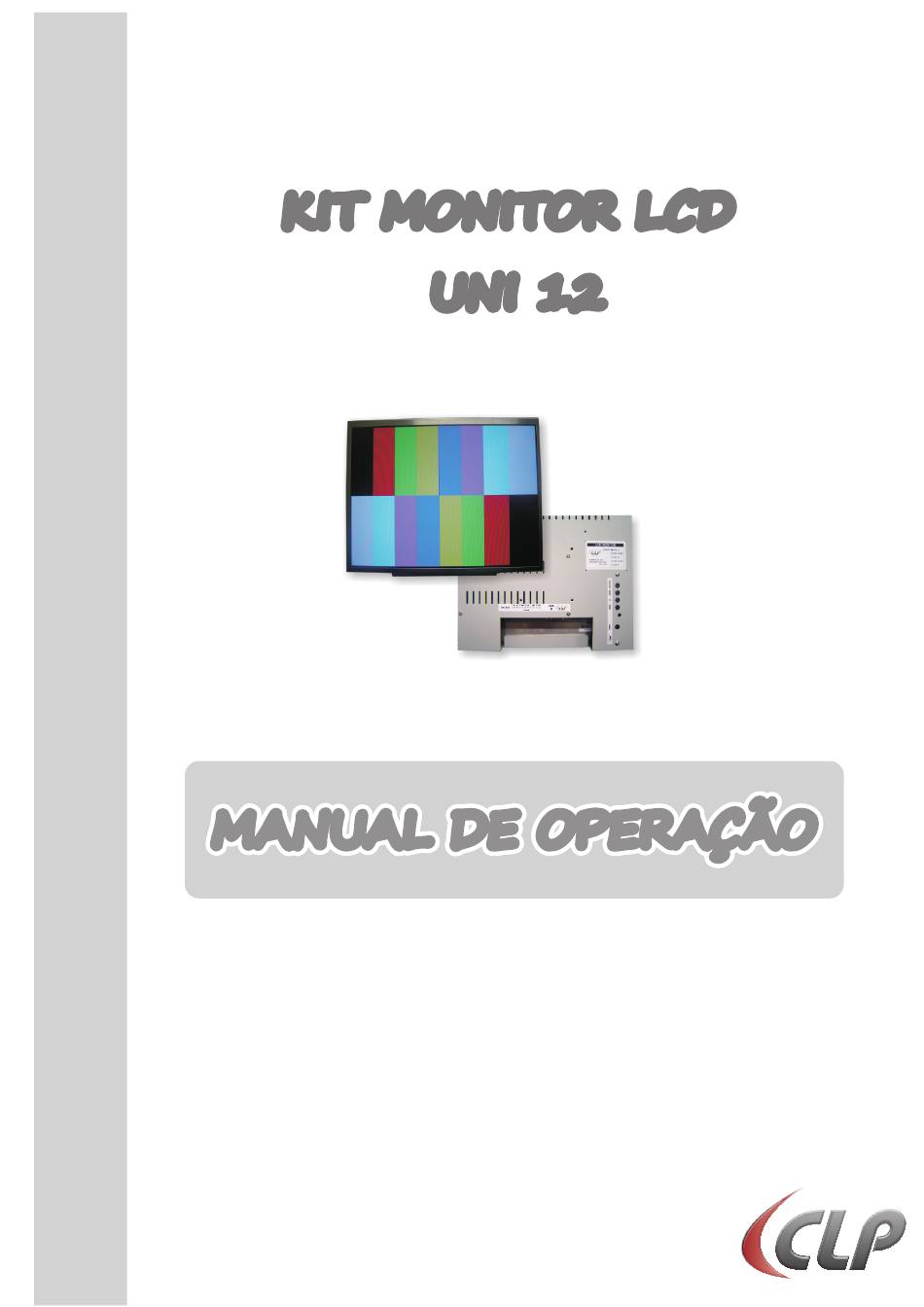

- Page 1 KIT MONITOR LCD UNI 12 MANUAL DE OPERAÇÃO C EN TER...
- Page 2 Introduction This monitor is an open frame LCD Panel monitor. It features the VESA plug & play system which allows the monitor to automatically adjust itself to the match the frequency of the user's device. It now has wide viewing angle capability.
- Page 3 Setting up your LCD monitor • Choose a position where the reflection of the light is minimal and away from a window for maximizing the quality of the screen image. • It is important to keep 30cm between the LCD monitor to minimize eye strain. •...
- Page 4 OSD Control Power Switch Power On/Off. Power Indicator Green normal power saving power off. Automatically optimize positions, phase Menu and clock when OSD is not shown. This control is used for selection or adjustment when OSD is show. Down This control is used for adjustment when OSD is shown.
- Page 5 CGA /EGA Signal Connector 9 10 Pin 1 CGA analog input. Pin 2 CGA analog green input. Pin 3 CGA analog blue input. Ground. Pin 4 V. Sync Pin 5 Pin 6 H + V Sync or H. Sync Pin 7 No Connection Pin 8 Ground...
-
Page 6: Image Settings
Please Note: Due to the advanced nature of this panel. Adjustments to clock, phase and image positioning are saved only for the signal timing you are currently using. Meaning if your input is CGA 640 x 215 @60Hz, and you adjust the clock setting. This will only affect this timing. - Page 7 Advanced Options If you select the Image Alignment Option, you will get a second menu:- Automatic Options Auto align The panel will automatically choose the best position and size for your input Manual Options Position position the image including up, down, left or right H-size (crushes the image horizontal, to...
- Page 8 Front View Side View C EN TER...
- Page 9 Specifications Specifications for this Model: 12.1" Screen Size Pixel Pitch(mm) 0.3075 x 0.3075 Blacklight CCFL x 2 Cell Type TN (Super MVA / Wide Viewing Angle) Input Mode CGA/EGA/VGA/SVGA Input Signal 0.7Vpp Analog 75ohm Sync TTL level Seperate, Composite Scan Frequency 15 ~ 47KHZ Horizontal Scan Frequency Vertical...
