INTRODUCTION

Congratulations on your purchase of the SkyRC's SUPER BEC
using synchronous rectification method to withstand high current loads of 10Amps continuous integrated with a low
voltage monitor. It provides safe and consistent power to your R/C receiver and servo(s) that eliminates the need for a
separate battery source.
LiPo batteries are unlike other batteries and discharges on a non-linear curve, therefore it is important not to drain any
LiPo batteries to minimum before charging as it can cause permanent damage. The SkyRC BEC can prevent this by
giving you an indication of your LiPo battery when the pre-set low voltage level is reached . The SkyRC SUPER BEC
is ideal for today's more demanding R/C aircrafts equipped with servos that require even higher current demands.
Please read the entire manual before proceeding.
Pin-Flag Power Switch
3mm Hole for Fixing

FEATURES

Compact high efficiency 5.2V 6.0V 6.8V 7.4V 8.4V selectable voltage regulator and low voltage monitor.
Ideal for 3-14 cell lithium polymer battery applications. Input voltage range from 10V Min to 60V Max.
High current capability of 10 Amps continuous, 15 Amp peak.
Protects against thermal and current overload(internal RED LED blinking).
Pin-Flag power switch with ultra bright super flux LED allows you to turn the BEC output power on or off
remotely and gives low voltage warning.
Connect to Battery
Connect to Pin-Flag
Power Switch
Low Voltage
Alarm-ADJ
YELLOW
WHITE
RED
BLACK
Power on LED
14S 10A OUTPUT
SUPER BEC
(SK-600053)

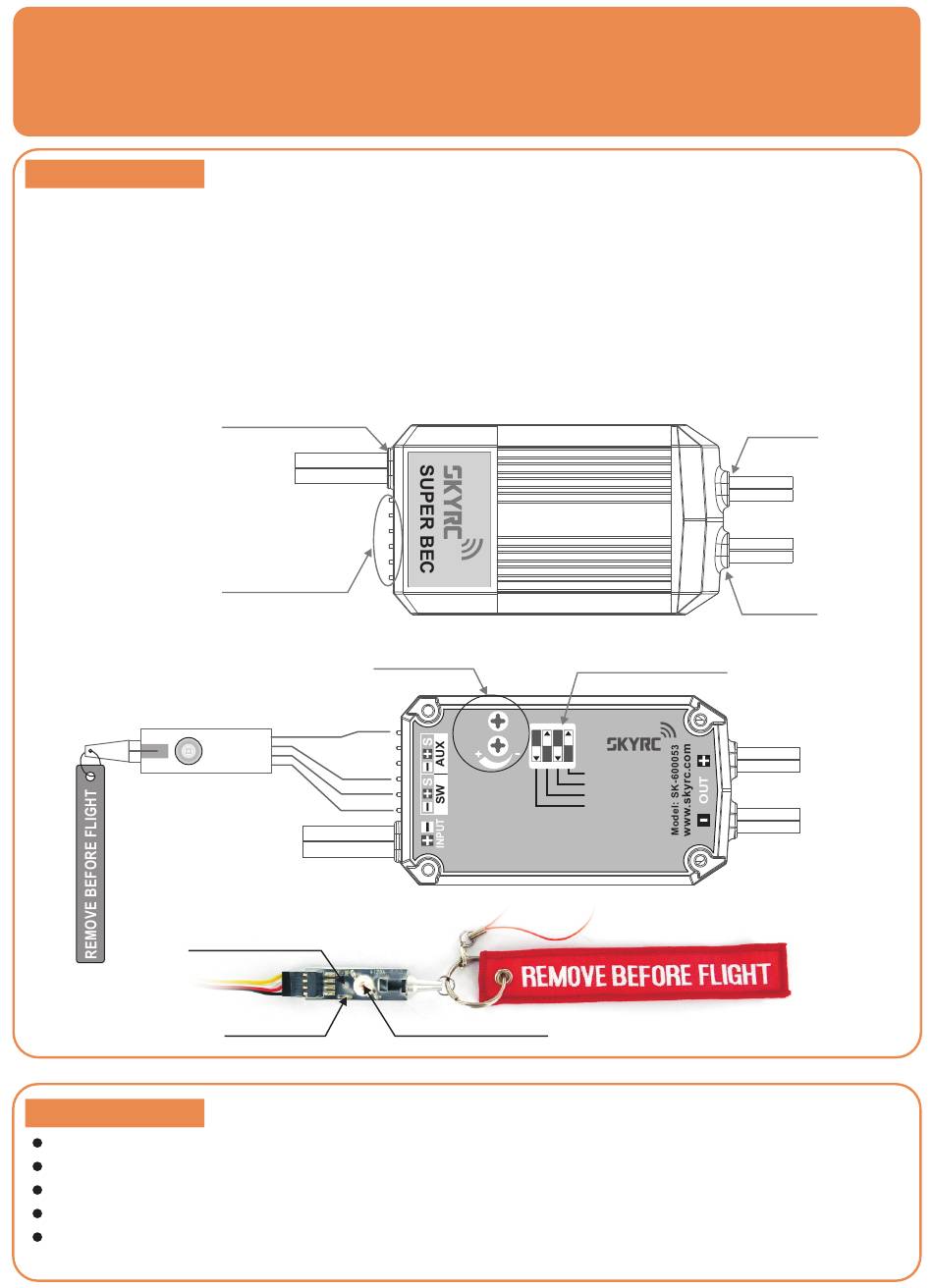

TOP VIEW
Input:
3-14S
LiPo
Output: 5.2-8.4V
Fine
-ADJ
ON
1
2
3
4
Low Voltage
Alarm-ADJ
SUPER BEC
(Synchronous Rectification)
Input Voltage: 11.1-60V(3-14 LiPo Cells)
Output Voltage: 5.2V-8.4V Selectable
Low Battery Alarm Voltage: 10V-60V
BOTTOM VIEW
Low Voltage Alarm LED
(Synchronous Rectification)
. This new Battery Eliminator Circuit is
Output -
10A
Output +
Voltage DIP Switch
Alarm Switch
ON
OFF
7.4V
6.8V
6.0V
5.2V
PIN-FLAG POWER SWITCH
