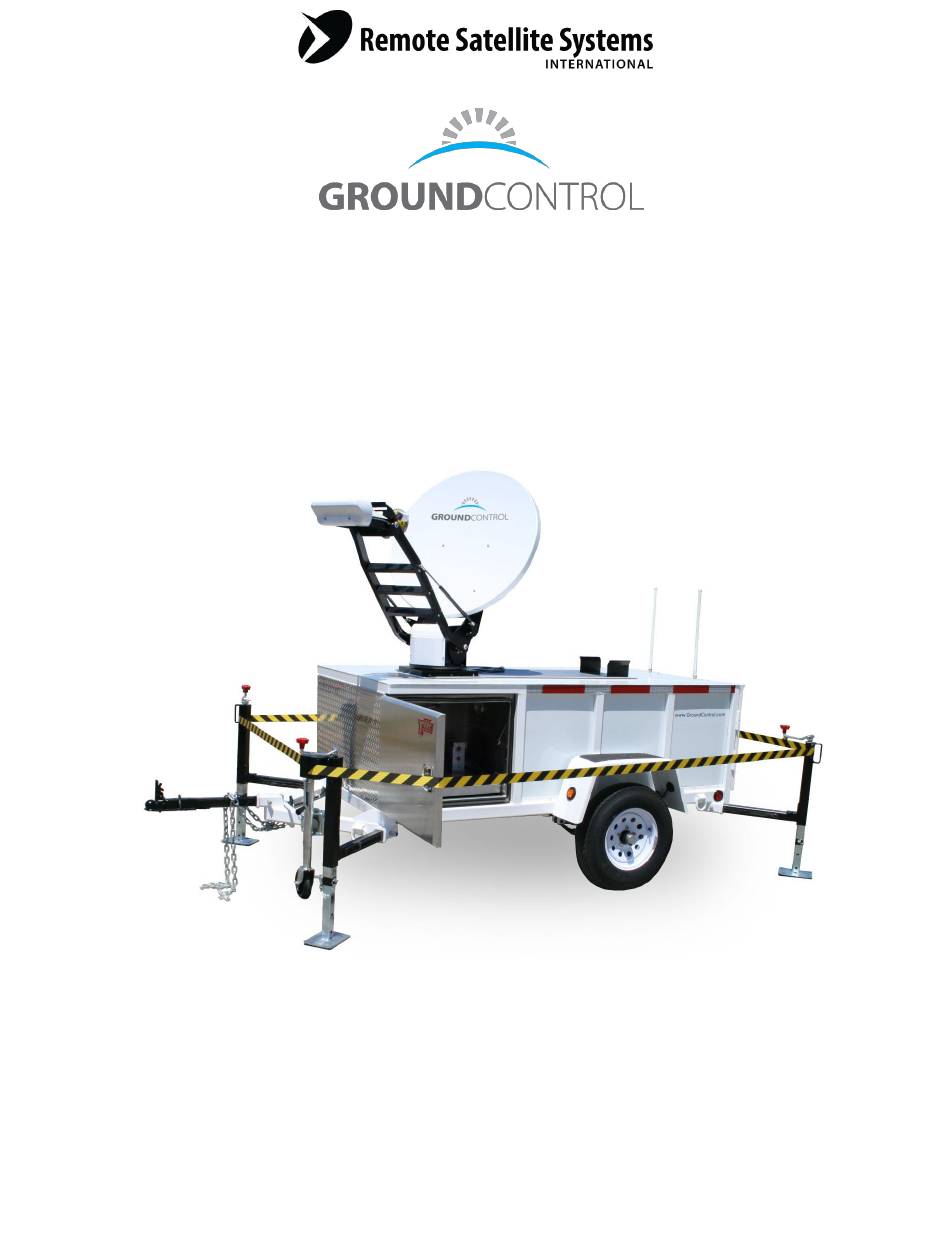

- Page 1 Toughsat T-100 Communications Trailer Users Manual TOUGHSAT T-100 COMMUNICATIONS TRAILER USERS MANUAL Ground Control June 2014...
- Page 2 (controller and modem). Permanent damage will occur to the unit causing it to cease functionality until the unit is returned to Ground Control’s facility for repairs. This damage is NOT covered under the unit’s warranty. If you have any questions regarding connecting or operating your Ground Control Toughsat system, stop and please contact our Technical Support Team immediately for assistance to prevent damaging your equipment.
-
Page 3: System Information Page
TOUGHSAT T-100 Please fill out the information on this page with the account information supplied to you from Ground Control and keep the manual in the rack-mount electronics case. It will be helpful both for on-site setup as well as required information if you need to contact Ground Control for support. -
Page 4: Table Of Contents
Stowing the Dish..…………………………………………………………………. Page 17 Dual Matrix……….…………………………………………………………………. Page 17 Final Walk-Around Checklist………………………………………………………. Page 18 Contact Ground Control Support…….……………………………………………. Page 19 The large rear bay of the T-100 is fully enclosed and includes a spare tire and securing straps. - 4 -... -
Page 5: System Features & General Specifications
One Person Setup – Requires little or no training to use. Establishes a half-mile 802.11 wireless "G" network automatically. Download speeds of 5Mbps, Upload of 2Mbps with iDirect from Ground Control. iDirect Evolution X5 1.5RU Satellite Router AC Power Conditioner (1RU) for 8 - 120 VAC outlets - Good for keeping power clean. -
Page 6: Included Equipment
Toughsat T-100 Users Manual Ground Control T-100 Included Equipment ● The Toughsat XP or SP Mobile System. ● A 6RU rackmount case for system electronics ● The Toughsat Controller with integrated 4-port wireless router. ● iDirect Evolution X5 1.5 RU Satellite Router. -
Page 7: Setup & Operation
Toughsat T-100 Users Manual Ground Control T-100 SETUP & OPERATION No Need to Disconnect Tow Vehicle The T-100 may be operated while connected to the tow vehicle. If connected, the trailer lights will be supplied power from the tow vehicle. Other electronics are powered by the trailer’s onboard generator. - Page 8 Toughsat T-100 Users Manual Ground Control STEP 3 – Pull the pin the holds the front wheel jack against the trailer frame. Rotate it 90 degrees so that the jack locks into place with the wheel side down. Carefully unlock the hitch from the ball.
- Page 9 Toughsat T-100 Users Manual Ground Control STEP 5 – RETRACT THE SUPPORT LEGS. Although use the supporting leveling legs is not mandatory, it is recommended for high winds or accidental shifting if bumped. Unpin the legs and arms and slide both into place.
-
Page 10: Starting The Generator
Toughsat T-100 Users Manual Ground Control STARTING THE GENERATOR STEP 9. START THE GENERATOR. Close the choke if the generator is cold and open the air vent on the gas cap. Turn on the POWER Switch to ON, and then firmly and quickly pull the starter cord to start the generator. -
Page 11: Wiring Diagram
100’ wireless range. Commercial grade routers will work with our equipment; however support is limited from Ground Control for routing issues with unknown equipment. WARNING – DO NOT PLUG IN CONTROL CABLE IF CONTROLLER IS POWERED ON. -
Page 12: Deploying The Dish
Toughsat T-100 Users Manual Ground Control DEPLOYING THE DISH STEP 11 – DEPLOY THE DISH. After GPS has been acquired by the system, (normally within 2 minutes), you may press the “Deploy” button on the Toughsat controller, which will raise the system. If for any reason there is any problem, press the “STOP”... -
Page 13: Security Belt
Toughsat T-100 Users Manual Ground Control USING THE SECURITY BELT STEP 12 – RETRACT THE SECURITY BELT - The T-100 has two retracting security belts that keep foot traffic from accidentally bumping the trailer, and from standing too close to the transmitter. -
Page 14: Connecting To The Internet
Some menus will even allow you to change configuration settings for your dish. Leave these alone unless instructed or you know what you are doing. Many of these settings will prevent your dish from working correctly if changed. Contact Ground Control Technical Support if you have questions about the items on these pages. - 14 -... - Page 15 Toughsat T-100 Users Manual Ground Control First, look to the lower left quadrant of the screen, to the “Input Data” Section: Confirm that it displays “GPS Signal OK” and has GPS coordinates. When GPS is “OK”, you may click on “Deploy Dish”. This dish will lock on satellite and create an Internet connection automatically.
-
Page 16: Stowing The Dish
Press the STOP button anytime there is any problem! Dual Matrix Dual Matrix is an optional service from Ground Control available on the TS2 Controller. The two Dual Matrix buttons (Sat 1 and Sat 2) when pressed will automatically access one of two satellites for full connectivity. This service allows for greater flexibility when locating a satellite that may be hidden behind trees. - Page 17 Toughsat T-100 Users Manual Ground Control Powering Off The System POWERING OFF – Make sure to turn off the Electronics power BEFORE you turn off the generator. This will help protect the electronics from any electrical fluctuation. To turn off the generator, rotate the toggle switch.
-
Page 18: Final Walk-Around Checklist
Toughsat T-100 Users Manual Ground Control FINAL WALK AROUND CHECKLIST Before you drive off of the trailer, make sure the list below is competed: □ DISH IS FULLY STOWED & ELECTRONIC ARE TURNED OFF □ CABINET LIGHTS & FLASHERS ARE TURNED OFF □... -
Page 19: Contact Ground Control Support
CONTACTING GROUND CONTROL SUPPORT Ground Control technical support representatives are available 24 hours per day for your convenience. Please note that our standard hours of operation are Monday – Friday, 8AM to 5PM Pacific Standard Time. If you call outside of these hours, support response may be delayed and certain resources may not be available to the support agent.
