INT-HD70-TXWP Owners Manual
Rev 190628
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intelix INT-HD70-TXWP and is the answer not in the manual?

Questions and answers

Summary of Contents for Liberty Intelix INT-HD70-TXWP

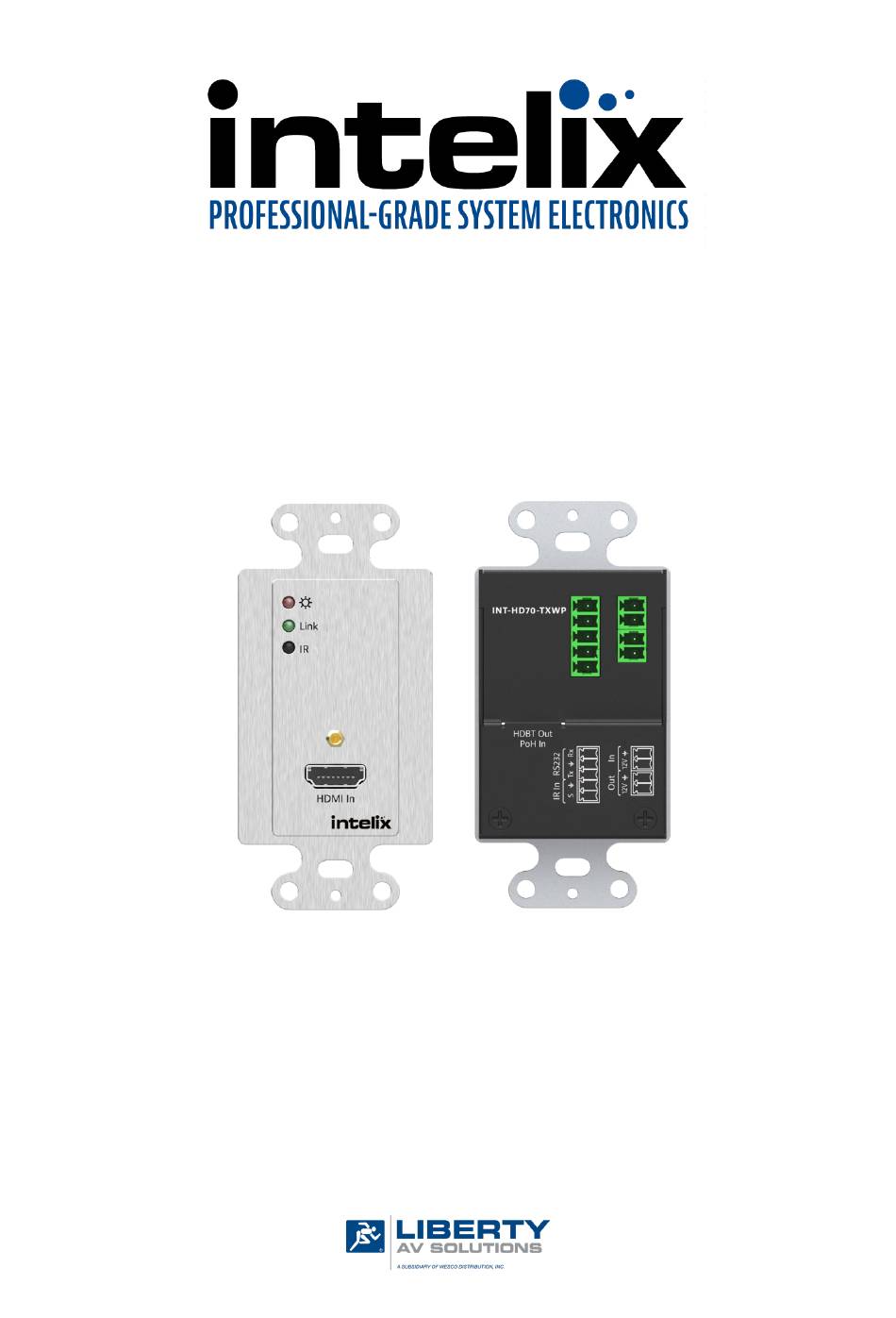

  • Page 1 INT-HD70-TXWP Owners Manual Rev 190628 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
  • Page 2 INT-HD70-TXWP Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions. »...
  • Page 3: Table Of Contents

    INT-HD70-TXWP Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Product Contents ���������������������������������������������������������������������������������������������������������������������������������������� Transmitter View ���������������������������������������������������������������������������������������������������������������������������������������� Front and Back Panel ������������������������������������������������������������������������������������������������������������������������������������ Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Connecting a Video Source ��������������������������������������������������������������������������������������������������������������������������� HDMI Input (Transmitter) ........................Connecting a Display ������������������������������������������������������������������������������������������������������������������������������������� HDMI Output (Receiver not included) ....................HDBaseT Connection �������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Product Overview

    INT-HD70-TXWP Owners Manual Product Overview The Intelix INT-HD70-TXWP extends HDMI, IR, and RS232 over a single solid core shielded Category 5e or greater cable using the Valens VS010TX HDBaseT chip. The INT-HD70-TXWP supports 1080p video signal up to 70m and 4K signals up to 4K@60Hz / 4:2:0 / 8 bit color up to 40m. The INT-HD70-TXWP supports CEC pass through and is HDCP 2.2 compliant.
  • Page 5: Transmitter View

    INT-HD70-TXWP Owners Manual Transmitter View Front and Back Panel FRONT BACK 1. POWER LED - Illuminates RED when power is applied 2. LINK LED - Illuminates GREEN when the transmitter is connected to receiver successfully 3. IR - Built in IR sensor / receiver for IR pass through control 4.
  • Page 6: Installation Instructions

    INT-HD70-TXWP Owners Manual Installation Instructions Quick Start Connect video source to transmitter HDMI IN Connect display technology to receiver (not included) HDMI OUT Connect transmitter and receiver together with a shielded Category 6 cable Connect control (optional) Apply power to receiver to power entire circuit Connecting a Video Source HDMI Input (Transmitter) Connect an HDMI source device to the HDMI input on the INT-HD70-TXWP transmitter using an HDMI cable that...
  • Page 7: Hdbaset Connection

    HDBaseT reliably longer distances. When using shielded category cabling ALWAYS..use shielded connectors ..properly ground the category cable For optimized performance use the following Liberty Wire and Cable branded cabling; Category 6 plenum; 24-4P-P-L6SH Category 6A plenum; 24-4P-P-L6ASH Category 6 NON-plenum; 24-4P-L6SH Category 6A NON -plenum;...
  • Page 8: Connecting Ir Control

    INT-HD70-TXWP Owners Manual Connecting IR Control The INT-HD70-TXWP is capable of transmitting a uni-directional IR signal through the HDBaseT circuit. The INT-HD70-TXWP features a built in IR receiver on the front panel of the wall plate so an IR receiver is not required.
  • Page 9: Application Diagrams

    INT-HD70-TXWP Owners Manual Application Diagrams HDMI Extension / IR Control Laptop Front Back IR Remote HDMI CATx INT-HD70-RX SOLD SEPERATELY IR Emi�er Display...
  • Page 10: Hdmi Extension / Rs232 Control

    INT-HD70-TXWP Owners Manual HDMI Extension / RS232 Control Laptop Control System Front Back HDMI CATx RS232 INT-HD70-RX SOLD SEPERATELY Display...
  • Page 11: Technical Specifications

    INT-HD70-TXWP Owners Manual Technical Specifications Supported Audio and Video Video Compliance HDMI 2.0+, HDCP2.2, and CEC (Consumer Electronics Control) Input / Output Resolution Support Up to 4096x2160@60Hz (4:2:0 chroma sub-sampling / 8 bit deep color) Embedded Audio Up to PCM 8 channel, Dolby Digital, DTS, TrueHD, DTS-HD Master Audio and Dolby Atmos IR Carrier Frequency Range 30-50kHz at 5 volts...
  • Page 12 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Intelix is a brand of:...
