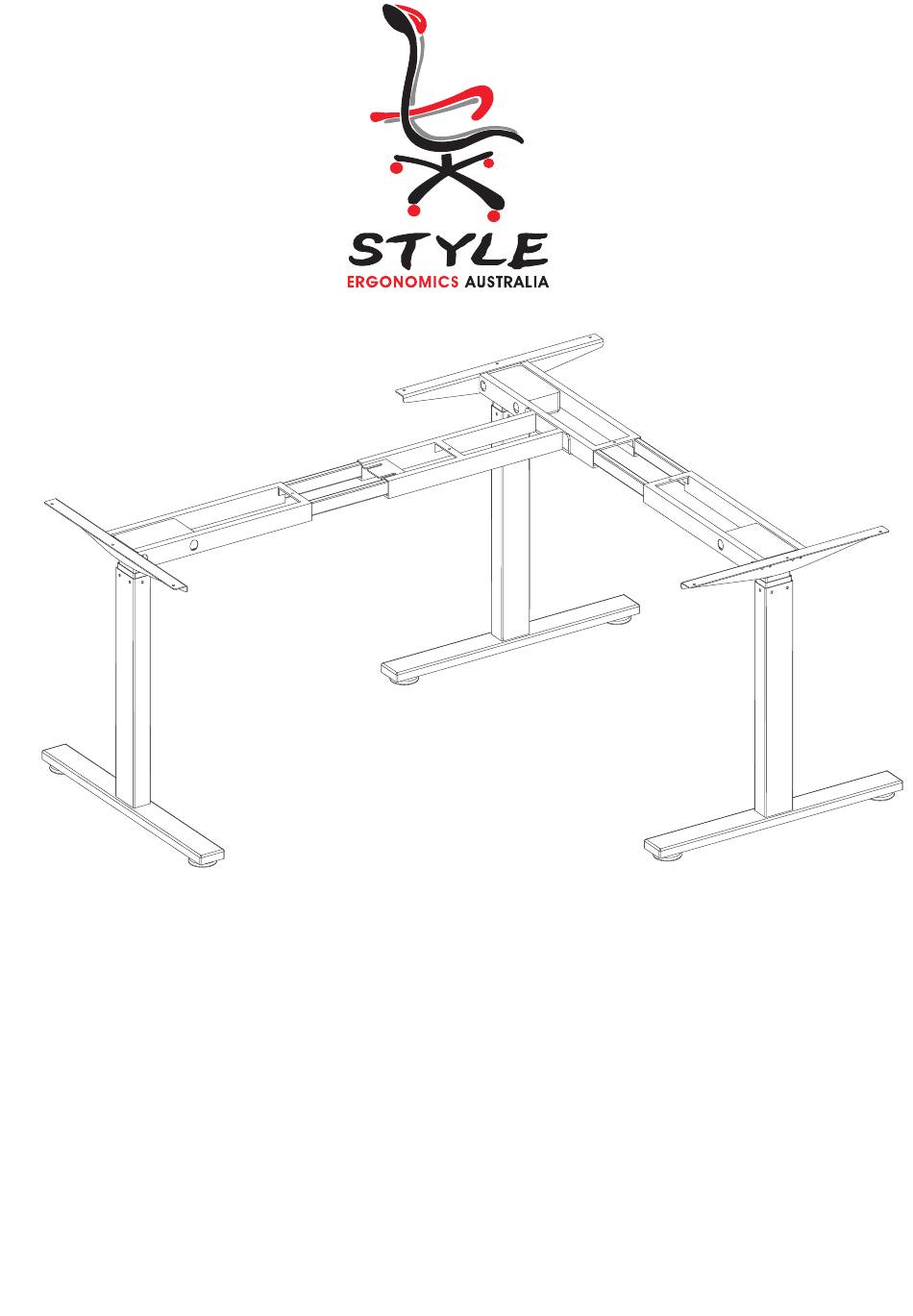

  • Page 1 Electric height adjustable desk ASSEMBLY & USE INSTRUCTIONS...
  • Page 2 CAUTION/INFORMATION Make sure no obstacles are in the desk's path. WARNING Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to PINCH POINT accommodate the change in height. keep hands and fingers clear. Keep children away from electric height-adjustable desks, control units and handsets.

  • Page 3: Tools Required

    PARTS TOOLS REQUIRED 4MM Allen Wrench Tape measure Phillips Head Screwdriver (included) and/or Power Drill COMPONENTS Foot with Legs Center Rail Side Bracket Crossbar End Glides Cables:60cm Programmable Power cord Control Box Handset HARDWARE Machine Screws: Wood Screws: Cable Clips Machine Screws: M6x10 ST M5x16...
  • Page 4 PARTS Part 1Crossbar End 2Leg 3Foot 4Crossbar Center Rail 5Side Bracket 6Control Box 7Programmable Handset 8Power Cord 9Cables Foot Glides 11Machine Screws:M6x12 12Machine Screws:M6x10 13Wood Screws:ST M5x16 14Cable Clips Page3...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP1 Lay out all components and hardware to ensure that you have all components and hardware listed on the parts page. Fully separate the Crossbar Ends (Part #1). You will find the Crossbar Center Rails (Part #4) inside. STEP2 Place one of the Legs (Part #2) into the Crossbar End (Part #1) Line up the holes on each Leg (Part #2) with the holes on each...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP3 Position one of the Crossbar Ends (Part #1) on its side. Tighten the screws(Part #16) from the top. If you drop a screw inside the Crossbar End (Part #1), simply tilt to retrieve the screw. Using the Allen Wrench, rotate each screw just a few turns. Repeat Step 4 with the other assembly.
  • Page 7 ASSEMBLY INSTRUCTIONS STEP4 Lock the position of the Crossbar center Rails (Part #4) using eight (8) M6x10 Machine Screws (Part #12). Remember,maximum width is 180cm. STEP5 Using the M6*10 Machine Screw(part 12) to fix the 3rd central frame. Page6...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP6 Lock the position of the Crossbar center Rails (Part #4) using eight (8) M6x10 Machine Screws (Part #12). Remember,maximum width is 180cm. STEP7 For each leg, attach a foot (Part #3) with four (4) M6x12 Machine Screws (Part #11) and tighten screws in a cross pattern.

  • Page 9: Troubleshooting

    ASSEMBLY INSTRUCTIONS STEP8 Plug the Power Cord into a 240v outlet. Make sure no obstacles are in the desk's path. Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to accommodate the change in height IMPORTANT: You must RESET the desk prior to use.

  • Page 10: Use Instructions

    USE INSTRUCTIONS Up & Down Movement:  Press the UP arrow continuously, the legs will move up  Press the DOWN arrow continuously, the legs will move down  Release arrows to stop movement. Memory Preset Positions:  Use the UP and DOWN arrows to set table at a desired height. ...
