Please follow these tips to get the best performance from your Mustard Dispenser
Assembly:
Priming:
Fill with mustard
without lever
installed.
Washing:
HAND WASH PARTS ONLY! DO NOT PUT PARTS IN
DISHWASHER OR POWER SOAK.
Read Operation Manual for full details on use and care of dispensers.
398-513revF

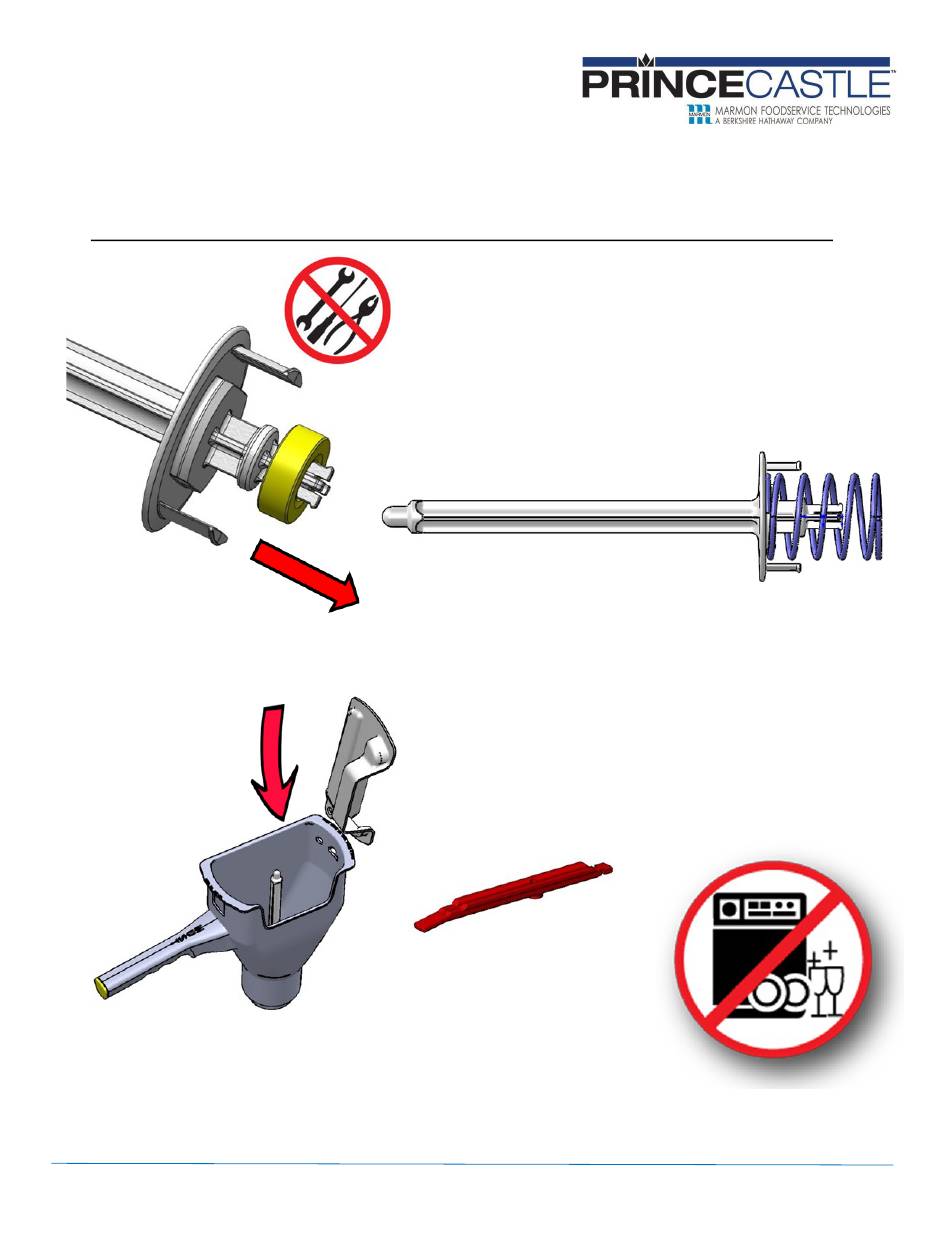

QUICK REFERENCE GUIDE:
398-CN DISPENSERS
Piston ring is now PERMANENTLY ATTACHED!
Do not remove. Make sure spring is attached
but use no tools to install or remove spring. Do
NOT use this rod for KETCHUP Dispenser.
Make sure spring is snapped onto piston rod
NO!
With a clean and empty dispenser add mustard
BEFORE installing lever. If dispenser has run out
of sauce during use it can be refilled without
removing lever.
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Printed in USA 04/19 ©2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prince Castle 398-CN
Summary of Contents for Prince Castle 398-CN
- Page 1 QUICK REFERENCE GUIDE: 398-CN DISPENSERS Please follow these tips to get the best performance from your Mustard Dispenser Assembly: Piston ring is now PERMANENTLY ATTACHED! Do not remove. Make sure spring is attached but use no tools to install or remove spring. Do NOT use this rod for KETCHUP Dispenser.
- Page 2 Setup ......... . . repaired (at the option of Prince Castle, Inc.) without cost to the customer for parts.
- Page 3 Mustard Dispenser Model No. 398-CN Safety Information Important Prince Castle reserves the right to change specifications CAUTION and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, Indicates information important to the operation of the unit.
- Page 4 Mustard Dispenser Model No. 398-CN Operation Setup (continued) This dispenser is used Attach lever so for portion control of rounded corners mustard being face down dispensed on toasted towards buns. adjusting cam. A. Slide lever • After buns are separated and...
-
Page 5: Troubleshooting
WHERE AND HOW TO ORDER REPLACEMENT PRICES PARTS A. All prices are F.O.B. Prince Castle Service Center To order replacement parts, look on back of your Prince or F.O.B. factory, Carol Stream, Illinois. Castle Price List for the name and phone number of your B. - Page 6 Mustard Dispenser Model No. 398-CN Exploded View and Parts List Item Part No. Description Function 398-112 Narrow Container Holds internal parts in proper position and provides a reservoir for mustard 404-070 Lever Pushes plunger rod down and forces piston to push mustard through...
- Page 7 Mustard Dispenser Model No. 398-CN Parts Kits 404B-070S Printed in USA 04/2019 © 2019 398-513revF-EN...
