Summary of Contents for Geemarc ClearSound AMPLICALL 30

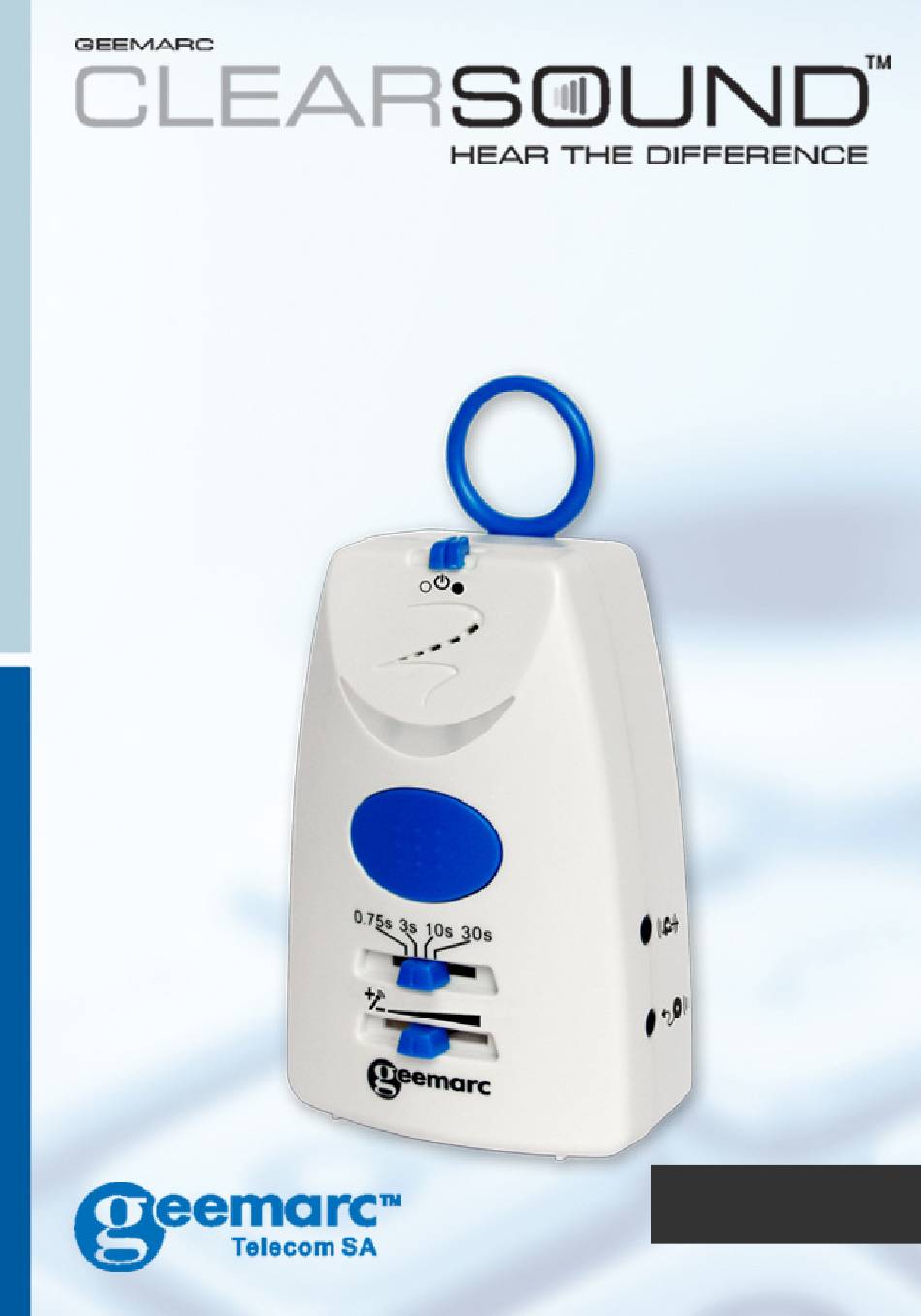

- Page 1 AMPLICALL 30/40 Portable Monitor English...
-
Page 2: Table Of Contents
CONTENTS CONTENTS INTRODUCTION Unpacking the AMPLICALL 30/40 DESCRIPTION General Description INSTALLATION Setting Up Mounting Range PAIRING Pairing Procedure Deregister the Pairing USING THE AMPLICALL Delay Time Setting Sensor Sensitivity Setting AMPLICALL 30 Use USING THE AMPLICALL AMPLICALL 40 Use TROUBLESHOOTING SAFETY INFORMATION GUARANTEE RECYCLING DIRECTIVES... - Page 3 INTRODUCTION Congratulations on purchasing your Geemarc AMPLICALL 30 or AMPLICALL 40. The AMPLICALL is the portable baby unit which listens to your baby and sends a signal to a receiving unit if your baby makes a noise. This enables you to ensure that your baby is comfortable and happy when you are in a different room to the baby.
- Page 4 INTRODUCTION It’s is important that you read the instructions below in order to use your Geemarc AMPLICALL 30/40 its full potential. Keep this user guide in a safe place for future reference.
-
Page 5: Introduction Unpacking The Amplicall
• 1 AMPLICALL 30/40 Unit • 3 AAA batteries (supplied) • 1 External piezo buzzer (AMPLICALL 40 only) For product support and help visit our website at www.geemarc.com Telephone: +44 (0)1707 384438 or Fax +44 (0)1707 832529... -
Page 6: Description
DESCRIPTION General Description Front Description Built in Power On/Off switch microphone Power On/Battery Low/Pairing LED indicator Alarm button Delay switch Sensitivity switch... - Page 7 DESCRIPTION Rear Description Hanger hook Battery Compartment...
- Page 8 DESCRIPTION Right Side Description Left Side Description Power supply Piezo Buzzer Alarm socket (optional) socket socket...
- Page 9 DESCRIPTION External Piezo Buzzer ( AMPLICALL 40 only)
-
Page 10: Installation
INSTALLATION Setting Up For portable child monitoring by parent, remove the battery cover found on the rear of the unit, insert 3 alkaline batteries (AAA size, 1.5V type, these are supplied) into the battery compartment. Check the battery polarity diagrams in the battery compartment when inserting the batteries. -
Page 11: Mounting
INSTALLATION then into a convenient mains outlet. Switch on the mains outlet and slide the Power On/Off switch to On to activate. Mounting Place the AMPLICALL 30 in the room with the baby in order to pick up any noise made by the baby. -
Page 12: Range
INSTALLATION Range Place the unit at least 1 metre away from your baby ensuring all parts are kept out of reach. Under no circumstance should you place any parts of the monitor in or on a cot. For best performance we recommend that the monitor is placed no further away than 4 metres from your baby. -
Page 13: Pairing
PAIRING Pairing Procedure The AMPLICALL 30 can work with either the AMPLICALL 15, AMPLICALL or the AMPLICALL 50. However, the devices must be paired before they can operate together. Pairing with the AMPLICALL Press and hold the Pairing/Test button of the AMPLICALL 15 and the ALARM button of AMPLICALL... - Page 14 PAIRING Press and hold the Pairing/Test button of the AMPLICALL 20, AMPLICALL or CL2L and the ALARM button of AMPLICALL 30 at the same time until the strobe flasher flashes and the unit makes a beep sound to confirm pairing successfully.
- Page 15 PAIRING Deregister from the AMPLICALL AMPLICALL 50 or CL2L 1. Press and hold the Pairing/Test button of the indoor unit/receiver (AMPLICALL 20, AMPLICALL 50 or CL2L) for 5 seconds until all the LED’s flash indicating you have entered the deregister mode. Press Pairing/Test button of the indoor unit/receiver once (AMPLICALL AMPLICALL...
-
Page 16: Using The Amplicall
USING THE AMPLICALL Delay Time Setting You can select one of the 4 delay time settings by sliding the delay time setting switch. This is a very useful feature because you can set the time delay between when the monitor registers the sound and when you are actually notified. -
Page 17: Sensor Sensitivity Setting
USING THE AMPLICALL ’ 3. When the baby s cry is intermittent and irregular and you are aware of this and relaxed enough to know that the baby is fine, you may want to set the delay time to 10s or 30s. The AMPLICALL will transmit a signal at 10s/30s after detecting a cry to alert you. -
Page 18: Amplicall Tm 30 Use
USING THE AMPLICALL ’ 2. When a baby s cry is loud or the unit is installed close to the baby, adjust the sensitivity to a lower position to detect a cry. AMPLICALL 30 Use When the AMPLICALL 30 detects a cry/voice or the ALARM button is pressed, the paired indoor unit will sound an alarm and/or flash to notify you of the noise... -
Page 19: Amplicall Tm 40 Use
USING THE AMPLICALL AMPLICALL 40 Use The AMPLICALL 40 has all the useful features and works in the same way as the AMPLICALL 30. However it is supplied with an additional accessory, an external piezo buzzer. If you plug the piezo buzzer into the AMPLICALL unit and attach the other end near to the sound... -
Page 20: Troubleshooting
TROUBLESHOOTING The Monitor will not switch on • Make sure the batteries are inserted correctly and they have adequate power • Ensure mains power is connected properly The Receiver ( 50) is AMPLICALL making a high pitched (feedback) noise • Ensure the AMPLICALL 30/40 and the AMPLICALL 50 are about 10ft apart... - Page 21 TROUBLESHOOTING • Ensure the AMPLICALL 50 volume is not switched off • Make sure the batteries are inserted correctly and they have adequate power • Ensure mains power is connected properly • The units maybe too far apart, therefore out of range •...
-
Page 22: Safety Information
SAFETY INFORMATION General Do not open the unit (except to replace the batteries). Contact the helpline for all repairs. The AMPLICALL 30 is designed to help monitor your child and is not a substitute for adult supervision. This product is not a toy. Your monitor transmits... - Page 23 SAFETY INFORMATION Cleaning Clean the unit with a soft cloth. Never use polishes or cleaning agents - they could damage the finish or the electrics inside. If connected, please disconnect from power supply before cleaning. Environmental Do not expose to direct sunlight. Always ensure there is a free flow of air over the surfaces of the unit.
- Page 24 SAFETY INFORMATION Take special care to ensure batteries are inserted correctly, observing (+) and (-) polarity marks on battery and product. Remove used batteries from the unit. Do not use rechargeable batteries. Do not mix old (used) and new batteries or batteries of different types Do not put batteries into the household rubbish, pay attention to battery...
-
Page 25: Guarantee
The product must not be tampered with or taken apart by anyone who is not an authorised Geemarc representative. The Geemarc guarantee in no way limits your legal rights. IMPORTANT: YOUR RECEIPT IS PART OF YOUR GUARANTEE AND MUST BE RETAINED AND PRODUCED IN THE EVENT OF A WARRANTY CLAIM. - Page 26 GUARANTEE DECLARATION: Geemarc Telecom SA hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EEC and in particular article 3 section 1a, 1b and section 3.
-
Page 27: Recycling Directives
Thus if you respect these instructions you ensure human health and environmental protection. For product support and help visit our website at www.geemarc.com Telephone: +44 (0)1707 384438 or Fax +44 (0)1707 832529... - Page 28 UGAmplicall30,40_En_Ver 1.2...
