Summary of Contents for MASSEY FERGUSON CENTORA 7282

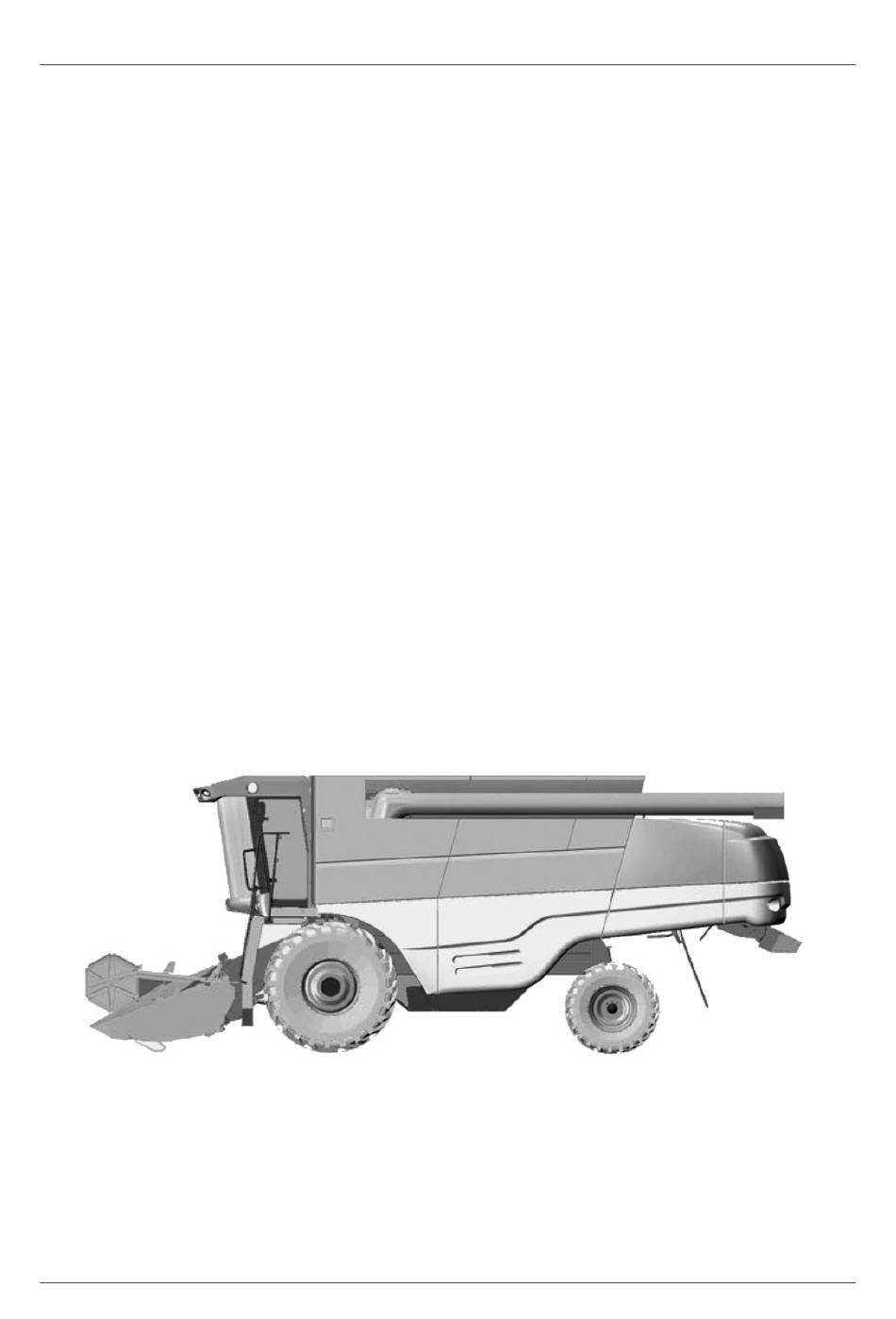

  • Page 1 Workshop Service Manual Combine Range CENTORA 7282 CENTORA 7280 + Auto Level + Rotary Separator Workshop Service Manual for CENTORA 7280-7282 Combine Range - EN_D3111800M2...
  • Page 2 Published January 2010 by AGCO A/S, Dronningborg Allé 2, DK-8930 Randers NØ Publication No. EN_D3111800M2 Edition 2 © AGCO A/S 2008-2010 Workshop Service Manual for CENTORA 7280-7282 Combine Range - EN_D3111800M2 Find manuals at http://best-manuals.com/search?&s=MF-D3111800M2...
  • Page 3 Contents Introduction - Specifications Cutting table Reel Main crop elevator Threshing unit Straw walkers Shaker shoe - Fanning mill Elevators Engine Unloading auger - Grain tank Drive unit Transmissions Undercarriage Hydraulics Machine housing Electrical system Straw chopper General assembly instructions Miscellaneous data Workshop Service Manual for CENTORA 7280-7282 Combine Range - EN_D3111800M2 Find manuals at http://best-manuals.com/search?&s=MF-D3111800M2...
  • Page 4 Contents Workshop Service Manual for CENTORA 7280-7282 Combine Range - EN_D3111800M2 Find manuals at http://best-manuals.com/search?&s=MF-D3111800M2...

  • Page 5: Table Of Contents

    Contents 0: Introduction - Specifications ................. 1 Using the manual ........... 3 General specifications .
  • Page 6 Contents 1.7.4 Replacing the rear rollers and bearings, scraper adjustment ......62 1.7.5 Replacing and aligning the bearing housing, rear rollers ......62 1.7.6 Belt tensioning and running-in .
  • Page 7 Contents Hydraulic reversing ..........108 3.9.1 Removal .
  • Page 8 Contents Crank - front ............145 5.3.1 Removal .
  • Page 9 Contents 7.1.5 Replacing the elevator chain ..........183 7.1.6 Moisture sensor.
  • Page 10 Contents Grain tank covers..........218 9.8.1 Removal .
  • Page 11 Contents 11.3.6 Unloading auger shaft - unloading auger ........253 11.3.7 Unloading auger shaft - rotary screen clutch .
  • Page 12 Contents 12.5.5 Replacing the handbrake shoes ..........311 12.5.6 Adjusting the hydraulic handbrake .
  • Page 13 Contents 14.7 Auto Level ............361 14.7.1 Hydraulic cylinders - machine levelling .
  • Page 14 Contents 16.4.7 Table Calibration............407 16.5 Diagrams overview .

  • Page 15: 0: Introduction - Specifications

    0. Introduction - Specifications 0. Introduction - Specifications Contents Using the manual ........... 3 General specifications .
  • Page 16 0. Introduction - Specifications Workshop Service Manual for CENTORA 7280-7282 Combine Range - EN_D3111800M2...

  • Page 17: Using The Manual

    0. Introduction - Specifications on a combine. The manual’s sections follow the layout of Using the manual the spare parts catalogue. General The purpose of the manual is to help dealers and work- shops start up, service and repair AGCO’s equipment as efficiently and effectively as possible.

  • Page 18: General Specifications

    0. Introduction - Specifications General specifications Cutting table Unit CENTORA Quick-attach type, can be attached and removed directly on the ground 7280/7282 Power take-off with transmission shaft Cutting height PowerFlow -40 to +148 Knife speed strokes/ 1138 min. Hydraulically balanced by pressure accumulators Electrohydraulic cutting height presetting Reel Unit...
  • Page 19 0. Introduction - Specifications Rear beater Unit CENTORA 7280/7282 Diameter 37.5 Rotary separator Unit CENTORA 7280/7282 Speed, normal Speed, reduced Width Diameter Separation area cm² 10400 Straw walkers Unit CENTORA 7280/7282 Number units Area cm² 7400 Area with rotary separator cm²...
  • Page 20 0. Introduction - Specifications Shaker shoe Unit CENTORA 7280/7282 Work light Fanning mill Unit CENTORA 7280/7282 Two-sectioned centrifugal blower Electrical speed adjustment from operator seat or at shaker shoe (left-hand side) Speed 460-1150 Reduced speed 310-790 Grain tank Unit CENTORA 7280/7282 Capacity litres...
  • Page 21 0. Introduction - Specifications Engine Unit CENTORA 7280/7282 Gross power* (with Power Boost**) 348 (378)/382 (413) Gross power* (with Power Boost**) 256 (278)/281 (304) Engine oil, capacity litres Rotary screen units Exhaust-aspirated air cleaner on air intake Fuel tank, capacity litres Coolant litres...
  • Page 22 0. Introduction - Specifications Brakes CENTORA 7280/7282 Hydraulically activated independent brakes Mechanically activated parking brake Electric/mechanical parking brake Operator cab CENTORA 7280/7282 Integrated operator environment with rubber suspension for platform and cab Electrical control of all functions DATAVISION Fully automatic air conditioning "Sealed Beams"...

  • Page 23: Tyre Pressure

    Pressure, bar CENTORA 7280 650/75 R32 CONTINENTAL DW21Ax32 800/65 R32 GOODYEAR DW27Ax32 900/55 R32 GOODYEAR DW27Ax32 1050/50 R32 MICHELIN DW36Ax32 CENTORA 7282 650/75 R32 CONTINENTAL DW21Ax32 800/65 R32 GOODYEAR DW27Ax32 900/55 R32 GOODYEAR DW27Ax32 CENTORA 7280AL 620/75 R34 GOODYEAR DW20Ax34...
  • Page 24 0. Introduction - Specifications Tyre pressure Wheels, table trailer Model Tyre size Make Pressure, bar 10.0/75-15.3 9.00x15.3 11.5/80-15.3 9.00x15.3 Without brakes 185/60R12 6.00Ix12H12 With brakes 195/50R13 5.5Jx13H2 Workshop Service Manual for CENTORA 7280-7282 Combine Range - EN_D3111800M2...

  • Page 25: Dimensions And Weight

    0. Introduction - Specifications Dimensions and weight Dimensions Unit CENTORA 7280/7282 Length With PowerFlow table, without torpedo dividers, (A) 10203 Machine without table and spreader hood, (C) 8266 Machine with table on trailer, dependent on table width, (D) max. 18750 Machine with spreader hood in working position +479 Width, (H) (I)
  • Page 26 17405 With 22’ PowerFlow table 17475 With 25’ PowerFlow table 17585 With 30’ PowerFlow table 18240 Weight distribution for CENTORA 7280-7282 Weight distribution CENTORA 7280 CENTORA 7282 Table width, PowerFlow Grain tank, Front Rear Total, Front Rear Total, axle, kg...

  • Page 27: Safety Precautions

    0. Introduction - Specifications This symbol together with the word CAU- Safety precautions ¥ TION indicates a potentially dangerous situ- ation that, unless avoided, may result in MINOR OR MODERATE PERSONAL INJURY This safety warning symbol means ATTEN- OR DAMAGE to equipment. ¥...

  • Page 28: Considerations With Regard To Equipment

    0. Introduction - Specifications Hearing protection unless the right type of nozzle is fitted and safety glasses are being worn. • Loud noise can damage your hearing, with the extent of the damage increasing with volume. If you think • Compressed air is not a cleaning agent and only there is too much noise, wear hearing protection.

  • Page 29: Operational Considerations

    0. Introduction - Specifications Housekeeping • You must never work under a combine that is stand- ing on a soft surface. Always take the unit to an area • Many injuries are the result of people falling or slip- with a firm, flat surface on which to work - concrete is ping on items or materials carelessly left lying about.

  • Page 30: Maintenance Techniques

    0. Introduction - Specifications 0.4.10 Maintenance techniques Do NOT rotate bearings using compressed air. The cen- trifugal force can cause a ball or roller to fly outwards with Maintenance safety enough force to cause injury. Relevant maintenance methods and correct repair meth- Fitting a bearing can be classified in two ways: Press fit ods are important for both reliable operation of all agricul- on rotating parts such as shafts and gears, for example,...

  • Page 31: Practical Advice

    0. Introduction - Specifications Practical advice Safety When working on any machine, the first thing you must be aware of is your own safety and that of others. In order to work without risk, it is important to understand what the work actually involves, to use implements and any equipment needed correctly, and, finally, to use your head at all times.
  • Page 32 0. Introduction - Specifications Forged lifting eye fittings (A) Load - (B) Shackle - (C) Shackle holding plate (3 mm thick) - (D) Connector (may be welded to the plate). In some cases special lifting accessories are available to ensure that balance is maintained and handling can take place without risk.
  • Page 33 0. Introduction - Specifications Seals The holes in flat seals must match up with the lubrication channels in the relevant parts. If the seals have to be made, choose a suitable type and thickness of material and make cuts in the right places. If seals are cut incor- rectly, serious malfunctions can result.
  • Page 34 0. Introduction - Specifications Securing and locking nuts and bolts To prevent nuts and bolts working loose, use retaining washers, lock plates and split pins. In addition to these mechanical devices, use locking paste, e.g. Loctite. In order to work effectively, the locking plate has to be bent down over the edge of the object.

  • Page 35: Start-Up Instructions

    0. Introduction - Specifications 15. Check the tightening of hoses and connections in the Start-up instructions cooling system. 16. Slip clutches for main crop elevator/returns system, after dismantling and cleaning. 0.6.1 General 17. Check that the clutch for the cutting table/table auger To ensure that the machine is maintained regularly during does not slip, after dismantling and cleaning.

  • Page 36: Instruction Of Combine Operator

    0. Introduction - Specifications 42. Check that pre-set cutting height is in accordance with 1. Stress the importance of all the safety guards being in DATAVISION. Zero and then set to 10 cm cutting place when the machine is in operation, and demon- height.

  • Page 37: Stone Trap

    0. Introduction - Specifications 20. Instruct in use of DATAVISION system. 40. Demonstrate and explain how to change the speed of the table auger and how to adjust the slip clutch for 21. Demonstrate how to use the systems by running the table auger.

  • Page 38: Auto Level

    0. Introduction - Specifications 67. Explain that the tension of all nuts and bolts should be checked every day, including wheel bolts, particularly as time goes by and the components settle. 68. Explain the importance of correct tyre pressure. 69. Explain the operation and calibration of optional equip- ment fitted on the machine, e.g.: Straw chopper, chaff spreader, Constant Flow, Auto Level table, Auto Level machine, etc.

  • Page 39: Conversion Tables

    0. Introduction - Specifications Conversion tables 0.7.1 Conventional units of measurement Units of measurement (international system) Force in N (newtons) Conversion: = 0.1019 kg 1 kg = 9.81 N Power in kW (kilowatts) Conversion: 1 kW = 1.36 HP Other units: HP (horsepower) 1 kW = 1.34 HP...
  • Page 40 0. Introduction - Specifications Conversion values for Imperial measurement system 0.1 mm = 3.937 mils 1 mm = 0.991 inch = 3.281 ft 1 km = 0.621 miles 1 cm³ = 0.061 cu.in = 1.759 pts (0.88 imp. qts) 1 bar = 14.5038 psi = 0.035 oz.

  • Page 41: Locking And Sealing Agents
