- Page 1 V2.1 18/10/31 USER MANUAL WELDING RECTIFIER Inverter TIG 201P AC / DC Sherman...
- Page 2 WARNING! Before installing and commissioning, please read these instructions 1. GENERAL Commissioning and operation of the device can be made only after a careful reading of this handbook. Due to the continuous development of technical equipment, some of its functions can be modified and operation may differ in detail from the description in the manual.
- Page 3 • Use protective curtains of non-combustible materials, and properly selected colors wall absorbing the harmful radiation. Poisoning prevention vapors and gases evolved at the time of welding of coatings for welding electrodes and evaporation of metals: • Use ventilation and exhaust installed in limited air exchange. •...
-
Page 4: Specifications

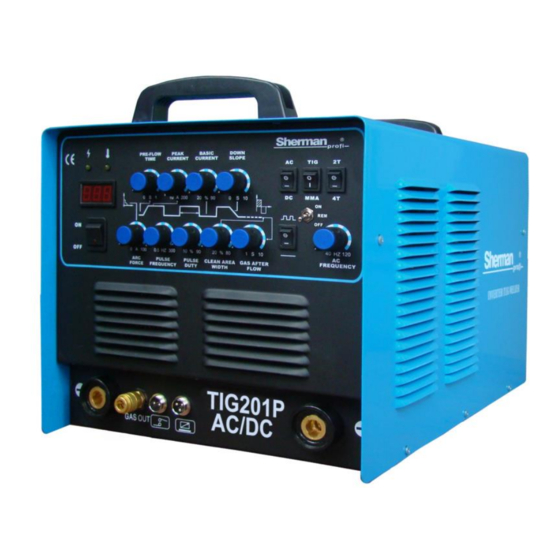

3. GENERAL DESCRIPTION TIG device 201P AC / DC converter is used for manual welding DC structural steel coated electrodes (MMA method) and quality steels, copper and its alloys tungsten inert gas (TIG), and aluminum and its alloys alternating current. This is the inverter device, manufactured with the most technologically advanced components made in MOSFET technology. -
Page 5: Connection To The Mains
1. A device to be used only in a single-phase, three-wire, with earthed neutral. 2. Rectifier inverter TIG 201P AC / DC converter is adapted to cooperate with a network of 230V 50 Hz fused 16 A time-delayed action. Power supply should be stable, with no voltage drops 3. - Page 6 The front panel is also a LED (15) indicating a malfunction or failure of the device (eg. The voltage drop power supply short circuit fault., And the LED (16) indicating to turn off the welding device as a result of overheating. Inflammation diodes when attempting ignition arc indicates a malfunction. 1.
- Page 7 8. protection against overheating The power source is equipped with a thermal overload protection switch. When the temperature of the welding device is too high, the security disconnects the welding current and the LED will overheat indicator (16). After falling temperature will automatically reset the circuit breaker. 9.
- Page 8 Control of the source may be the mode or dwutaktu czterotaktu. Mode control source to make the switch (7) 10.3. Initiation and maintenance of the arc welding process TIG device 201P AC / DC converter is equipped with an ionizer enabling non-contact arc ignition. To ignite the arc mode dwutaktu must approach the electrode to the workpiece at the distance of 2 millimeters and press the button to turn on the torch handle ionizer.
- Page 9 12. OPERATION MANUAL Operation of the device TIG 201P AC / DC converter should be carried out in an atmosphere free of corrosive components and dusty. Do not place the device in dusty, near the working grinders, etc. Dust and pollution control boards metallic filings, wires and connections inside the unit may cause an electrical short, and consequently damage to the welding machine.
- Page 10 The device should be stored at -10 ° C to + 40 ° C and relative humidity 80% free of corrosive fumes and dusts. Transportation of packaged devices should be covered means of transport. For transport the packaged unit must be secured against slipping and ensure the correct position. 15. COMPLETE SPECIFICATION 1. Source TIG 201P AC / DC 1 piece. 2. Holder for TIG welding 1 piece.
-
Page 11: Electric Scheme
16. ELECTRIC SCHEME... - Page 12 17. GUARANTEE Guarantee granted for a period of 12 months for business entities but excluding claims related to or guarantee of 24 months for the consumer from the date of sale. The guarantee will be respected by the advertiser after the presentation of proof of purchase (invoice or receipt) and warranty card inscribed with the product name, serial number, date of sale and point of sale bearing the stamp.
-
Page 13: Declaration Of Conformity
41-909 Bytom ul. 3 Cross POLAND Declare that the said product: inverter welder Trade name: TIG 201P AC / DC Type: TIG 200P AC / DC Manufacturer's trademark: to which this declaration relates complies with the following directives of the European Union and...
