Summary of Contents for Best Hoist Pro-3 Series

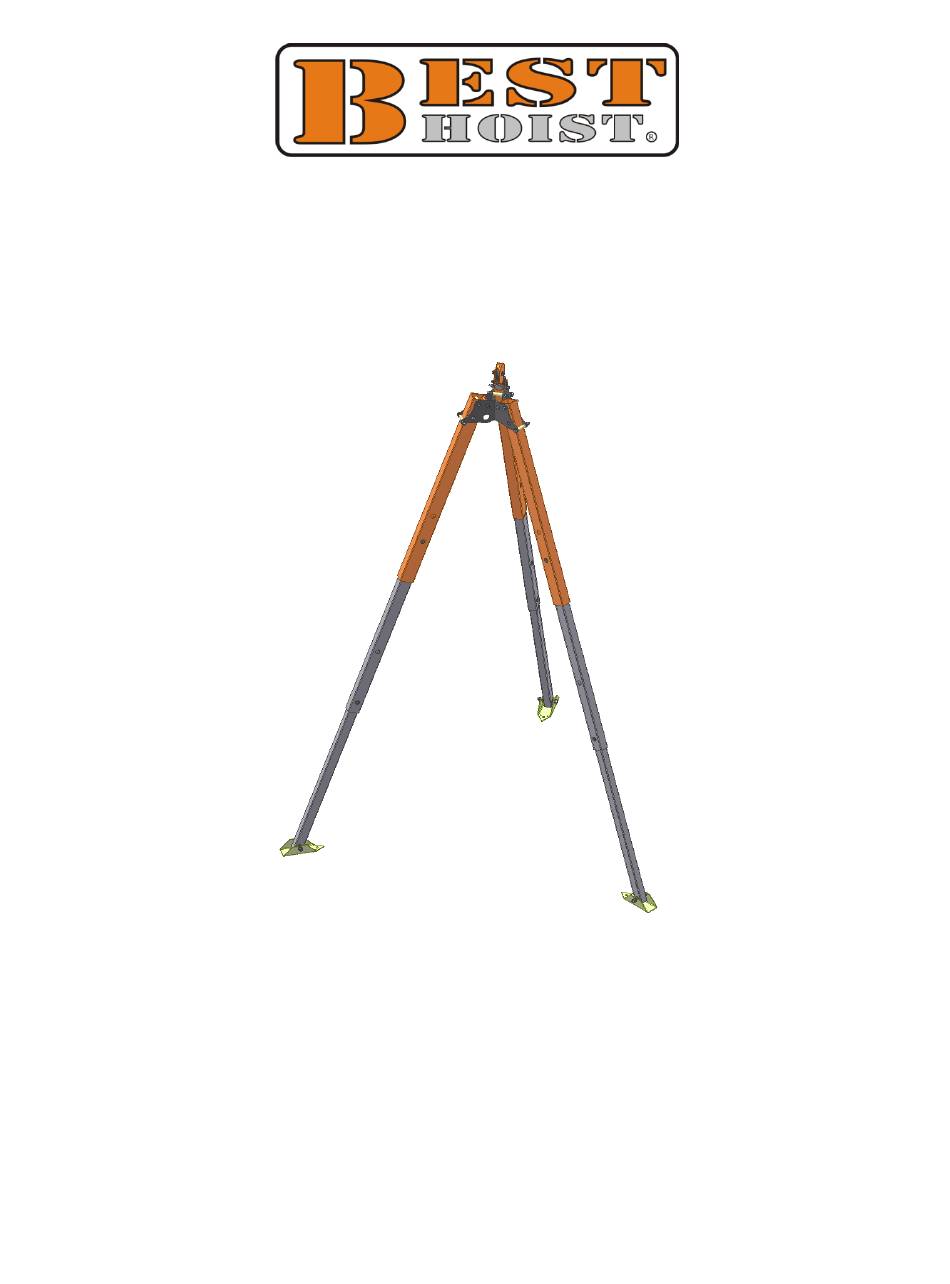

- Page 1 Pro-3 Series Tripod Operator’s Manual Man-Rated for: Work Positioning Confined Space Entry / Retrieval Rescue Fall Protection Also Rated for Material Handling Applications...
-
Page 2: Table Of Contents
Pro-3 Series Tripod Operator’s Manual Table of Contents 1. INTRODUCTION to TRIPOD APPLICATIONS 2. APPLICATION RESTRICTIONS 3. GENERAL SYSTEM REQUIREMENTS 4. SET-UP and ACCESSORY INSTALLATION and OPERATION 5. TRAINING 6. INSPECTION 7. MAINTENANCE LUBRICATION and STORAGE 8. SPECIFICATIONS March 21, 2011, Rev 01... -
Page 3: Introduction To Tripod Applications
Operator’s Manual 1. INTRODUCTION to TRIPOD APPLICATIONS Congratulations on your purchase of a Best Hoist Pro-3 Series Tripod as part of your Safety-at-Heights equipment. This tripod is constructed of high quality aluminum tubing for light weight, and features patent pending Tuff-Klik®... -
Page 4: Application Restrictions
Pro-3 Series Tripod Operator’s Manual 1.6 MATERIAL HANDLING The Tripod, when equipped with a winch, may be used for the raising and lowering of tools, equipment, and other material not exceeding the rated Working Load Limit of any system accessories. Various jurisdictions may not allow the use of the same equipment to move personnel and material. -
Page 5: General System Requirements
Pro-3 Series Tripod Operator’s Manual 2.1.3 FALL ARREST This tripod is designed and rated to support an ultimate static test load in excess of 5000 lbs, and is rated for fall arrest with a Safety Factor of 2:1 for up to 3 users when used with a Self Retracting Lifeline (SRL) or energy absorber with a Maximum Arrest Force (MAF) rating of 900lbs (4kN) or less. - Page 6 Pro-3 Series Tripod Operator’s Manual 3.4 FALL PROTECTION Activities involving working at heights require the use of equipment to protect the worker in the event of a fall. Suitable fall protection must be provided as required by applicable local regulations when using the Tripod.
- Page 7 Pro-3 Series Tripod Operator’s Manual 4.0 ANCHORAGE REQUIREMENTS This Tripod is designed for use in conjunction with various accessories to meet different requirements. These may include winches, self-retracting lifelines (SRL’s), energy absorbers, and full-body harnesses. All installations must be approved by a Qualified Person.
-
Page 8: Training
Pro-3 Series Tripod Operator’s Manual 4.2 ACCESSORY INSTALLATION If you are using a Tuff Built Pro-Series winch with your Tripod, install the winch onto the tripod by inserting the tab on the bracket installed on the tripod into the slot on the bracket installed on the winch. - Page 9 Pro-3 Series Tripod Operator’s Manual 6. INSPECTION 6.1 DAILY INSPECTION The Tripod must be inspected before each use as described in Sections 6.1.1 to 6.1.5. Report any problems or concerns to your supervisor, and do not use the equipment until they have approved doing 6.1.1 Cleaning and Lubrication...
- Page 10 Pro-3 Series Tripod Operator’s Manual 6.2 ANNUAL INSPECTION At least annually, and more frequently if subjected to harsh conditions or excessive use, the Tripod MUST BE given a detailed inspection by a competent person as described below, and the results recorded in an Inspection Log.
-
Page 11: Maintenance Lubrication And Storage
Pro-3 Series Tripod Operator’s Manual 7. MAINTENANCE, LUBRICATION and STORAGE This Tripod has been designed to provide many years of trouble free service, and requires little in the way of routine maintenance. Any loose fasteners should be tightened, with the Tripod being sent to a factory authorized service center for structural repair if necessary. -
Page 12: Specifications
Steel parts are either powder coated or zinc plated for corrosion resistance. All hardware is zinc plated and is either Grade 5 or Grade 8 quality. The Pro-3 Series tripod weighs 39lbs (17.7 kg). Dimensions are as shown in Figure 5 below. - Page 13 Pro-3 Series Tripod Operator’s Manual March 21, 2011, Rev 01...
- Page 14 Pro-3 Series Tripod Operator’s Manual TRIPOD INSPECTION LOG Tripod Model Number:_________________________________________ Tripod Serial Number:__________________________________________ Date of Manufacture (dd/mm/yy):_________________________________ Purchase Date (dd/mm/yy):______________________________________ INSPECTION ITEM PASS FAIL DETAILS / LOCATION DISPOSITION APPROVED of DAMAGE (REPAIRED/SCRAPPED) FOR USE BY Physical Damage to Leg Tubes,...
