DIN Rail DMX512 Constant Voltage Decoder
DIN Rail DMX512 Constant Voltage Decoder
(Please read through this manual carefully before use)
Brief lntroduction

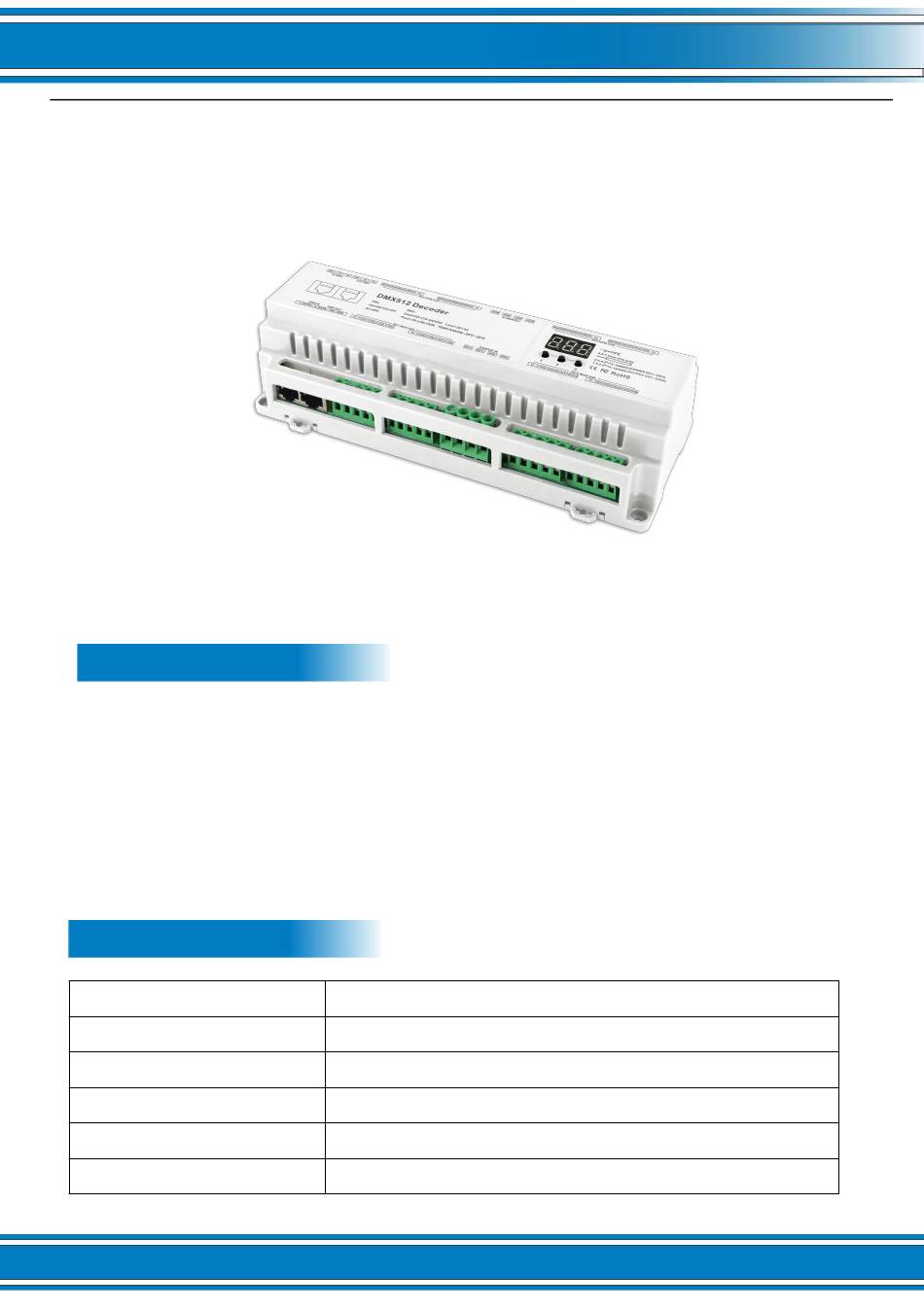

Welcome to use the DIN Rail high Power DMX512 constant voltage decoder is
specially developed for constant voltage LED lamps. It adopts advanced
microcomputer control technology to convert universal DMX512/1990 digital
signal to PWM signal. 32 output channels, can be used to control constant
voltage single color, color temperature, RGB, RGBW type lamps. DIN Rail/screw
dual-use installation method for easy installation.
Specifications
Model
Input voltage
Max load current
Max output power
Input signal
Output Signal
- 1 -
User Manual
32CH DMX512 Decoder
DC12V-24V
3A×32CH
1152W (12V)/2304W(24V)
DMX512/8 bit/16 bit selectable
Constant Voltage PWM×32CH
