Operating and maintenance manual for

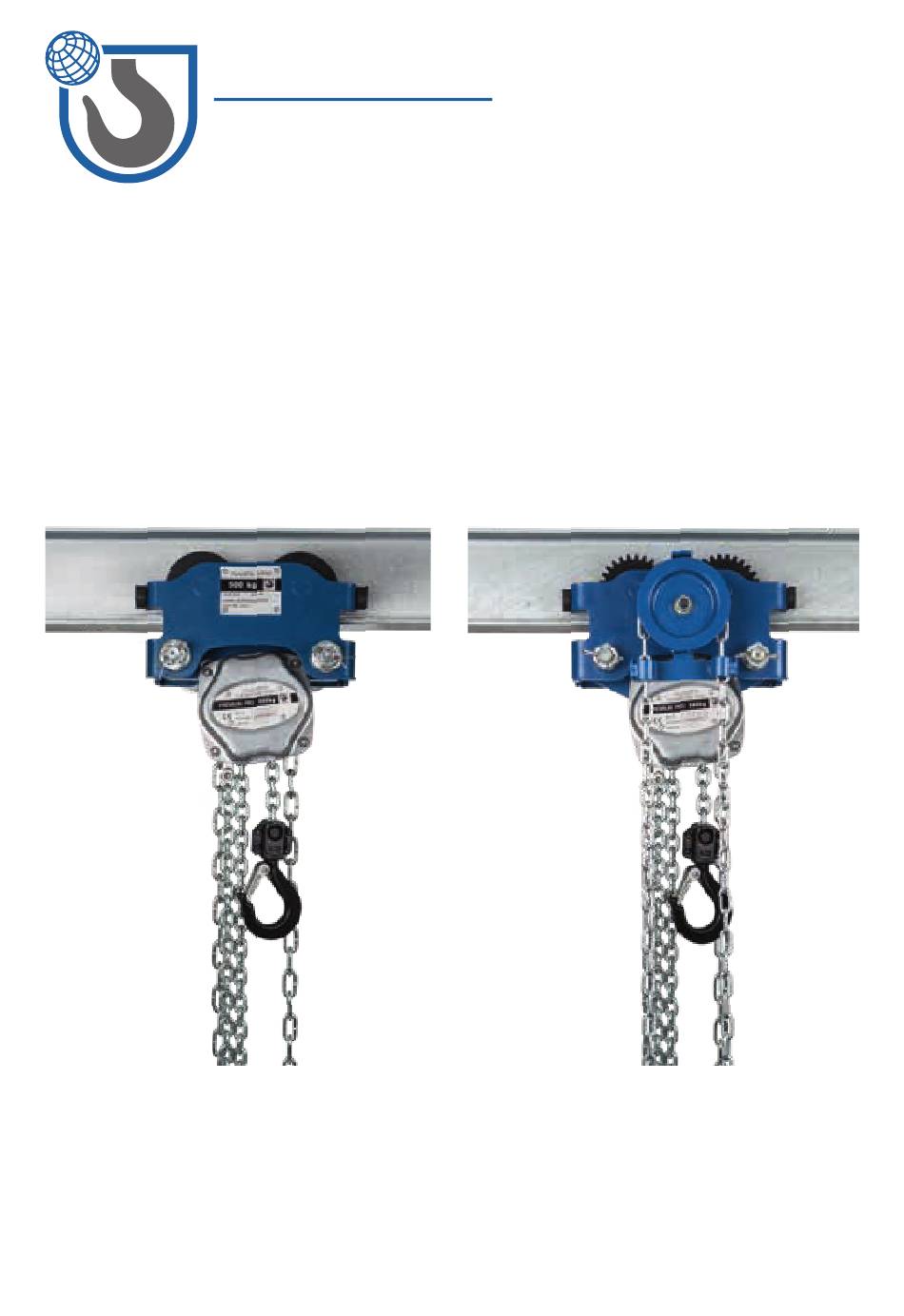

LHT combination trolley
Installation - Operation - Maintenance
IMPORTANT - READ BEFORE USE!
PLANETA-Hebetechnik GmbH • Resser Str. 17 & 23 • D-44653 Herne
Tel. +49 (0)2325 9580-0 • Fax +49 (0)2325 77077 • info@planeta-herne.de • www.planeta-hebetechnik.de
© Copying, even in part, is only allowed with the written permission of PLANETA-Hebetechnik GmbH
01-06-01-0004-0119-100-BA-EN-PLA
Advertisement
Table of Contents
Related Manuals for Planeta LHT-H
Summary of Contents for Planeta LHT-H
- Page 1 PLANETA-Hebetechnik GmbH • Resser Str. 17 & 23 • D-44653 Herne Tel. +49 (0)2325 9580-0 • Fax +49 (0)2325 77077 • info@planeta-herne.de • www.planeta-hebetechnik.de © Copying, even in part, is only allowed with the written permission of PLANETA-Hebetechnik GmbH 01-06-01-0004-0119-100-BA-EN-PLA...
-
Page 3: Table Of Contents
4. Assembly information before commissioning ............. 7 5. Installation ........................7 6. Maintenance and inspection ..................8 7. Overload safety device ....................9 8. Technical data LHT-H / LHT-G .................. 10 Annual inspection CE DECLARATION OF CONFORMITY EC DECLARATION OF COOPERATION... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Read before Do not Do not work Never pull the Never work use! overload under a load! chain from the with a side! damaged hoist! Never lift human Never throw Do not wrap Never work up 10. Never attach with this hoist! the hoist the load chain... -
Page 5: General Information
1. General information Hoists, whether integrated or hooked into the trolley, are used solely for the raising and lowering of loads. The LHT combination trolley is an inseparable of the LST trolley and the PREMIUM PRO hoist. Intellectual property Designs, drawings and technology are the sole property of the manufacturer. It is expressly prohibited to copy or utilise this type of information, or pass it on to third parties, without express written permission. -
Page 6: Important Notes
2. Important notes – Before installation and use, you must read through the operating manual and make it available to the operator of the equipment. – The operator must be properly instructed in how to use the equipment. – Never exceed the working load limit (WLL) on the product label. –... -
Page 7: Assembly Information Before Commissioning
– NEVER use without the hook safety latch – NEVER remove the warning notices – NEVER use the chain as a lifting sling – NEVER leave a suspended load unattended Geared LHT trolley: – NEVER operate the hand chain in a angle contrary to the travel direction of the trolley 4. -
Page 8: Maintenance And Inspection
6. Maintenance and inspection Chains and hook – The chains and hooks must be inspected on a regular basis! Clean the chain before inspection. Slightly lubricate the load chain from time to time! Never oil or grease the brake! – The load chain must not crack when load is attached. –... -
Page 9: Overload Safety Device
Hooks can be bent open or elongated due to heavy loading and improper handling of the equipment. If the original dimension „G“ is exceeded by 10%, the hook must be replaced. If this is the case, then the overloading has also damaged other load-bearing parts and the hoist must be checked thoroughly for deformations in all components. -
Page 10: Technical Data Lht-H / Lht-G
8. Technical data LHT-H / LHT-G (Geared trolley) LHT-H 0.5 - 3 t LHT-G 0.5 - 3 t LHT-H 5 t LHT-G 5 t... - Page 11 50 - 203 64 - 203 88 - 203 88 - 203 Min. curve radius 0,85 Dimension H min. LHT-H Dimension H min. LHT-G Weight with 3 m lift LHT-H 13,5 Weight with 3 m lift LHT-G 14,8 23,5 43,7 43,7 TYPE LHT...-H/-G...
- Page 12 ANNUAL SAFETY INSPECTIONS Name & Signature Type of test Date Result the examiner...
- Page 13 PLANETA 1861 Heben ohne Grenzen CE DECLARATION OF CONFORMITY in accordance with the EC Machinery Directive 2006/42/EC, Annex II A PLANETA-Hebetechnik GmbH, Resser Straße 17, 44653 Herne hereby declare that the product Combination trolley Model series LHT-H Capacity 500 kg – 20.000 kg...
- Page 14 EC DECLARATION OF INCORPORATION Declaration for the installation of an incomplete machine according to EC Directive 2006/42/EC, Annex II B PLANETA-Hebetechnik GmbH, Resser Straße 17, D-44653 Herne that the following items of partly completed machinery Combination trolley Model series LHT-H in payload range 500 kg –...
- Page 16 Supplier responsible © PLANETA-Hebetechnik GmbH...
