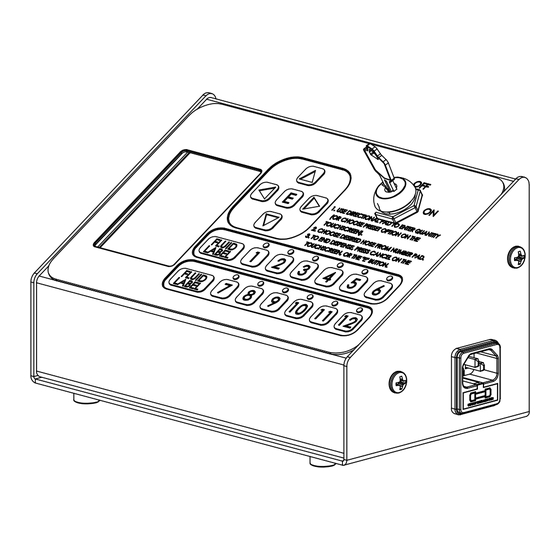

- Page 1 671108 SErViCE GuidE AFCS Fluid GuArd 2 Model 343596 Alemite, LLC • 167 Roweland Drive, Johnson City, Tennessee 37601 • www.alemite.com Copyright © 2016 by Alemite, LLC FORM: 671108 Version 1 SER 343596...
-
Page 2: Table Of Contents
Minimum current 0.25 A avoided, could result in minor or moderate Maximum current 2.0 A injury. Pulse switch voltage 24 V Pulse switch current 5.1 mA Valve output voltage 24 V Maximum valve output current 1.85 A 671108 Alemite, LLC... -
Page 3: Controller Overview
Pulse valve 8 Air valve Air valve valve 2 meter 2 meter 1 Fluid Fluid Air pump Air pump valve 1 valve 7 (hoses 1 (hoses 7 thru 6) thru 12) Site tank 2 Site tank 1 Alemite, LLC 671108... -
Page 4: Overview
Pulse switch input 2 (inactive for single fluid system, hoses 7-12 for dual fluid system) Yellow Hose 1 Brown Hose 2 Blue Hose 3 Orange Hose 4 Green Hose 5 White Hose 6 Hose 7 Black Hose 8 White/blue Hose 9 Slate Hose 10 Pink Hose 11 Hose 12 671108 Alemite, LLC... - Page 5 Change Fluid Mode Total: 547.8 Total: 547.8 Reset Trip: 70.3 Trip: 70.36 Reset Change Volume Units Change Volume Units Change Quick Select Values Change Quick Select Values System Configuration System Configuration Change PPU Values Change PPU Values < < Alemite, LLC 671108...
- Page 6 Trip: 70.3 Reset or choose preset option on touchscreen). 2. Choose desired hose from number pad. Fluid 2 Volume (Qt.) 3. To end dispense, press cancel on touchscreen, or “E” button. Total: 547.8 Trip: 70.3 Reset System Configuration 671108 Alemite, LLC...
- Page 7 1. Use directional pad to enter quantity or choose preset option on touchscreen). 2. Choose desired hose from number pad. 3. To end dispense, press cancel on touchscreen, or “E” button. Frequently Used Values Quick Select Values 10.0 Alemite, LLC 671108...
- Page 8 1. Use directional pad to enter quantity or choose preset option on touchscreen). 2. Choose desired hose from number pad. 3. To end dispense, press cancel on touchscreen, or “E” button. (Qt.) Of Requested Have Been Dispensed End Dispense 671108 Alemite, LLC...
- Page 9 2. Choose desired hose from number pad 2. Choose desired hose from number pad. 3. To end dispense press cancel button on 3. To end dispense, press cancel on touchscreen touchscreen, or “E” button. Frequently Used Values Quick Select Values 10.0 Alemite, LLC 671108...
- Page 10 This page left intentionally blank 671108 Alemite, LLC...
- Page 11 This page left intentionally blank Alemite, LLC 671108...
- Page 12 Alemite, LLC • 167 Roweland Drive, Johnson City, Tennessee 37601 • www.alemite.com...
