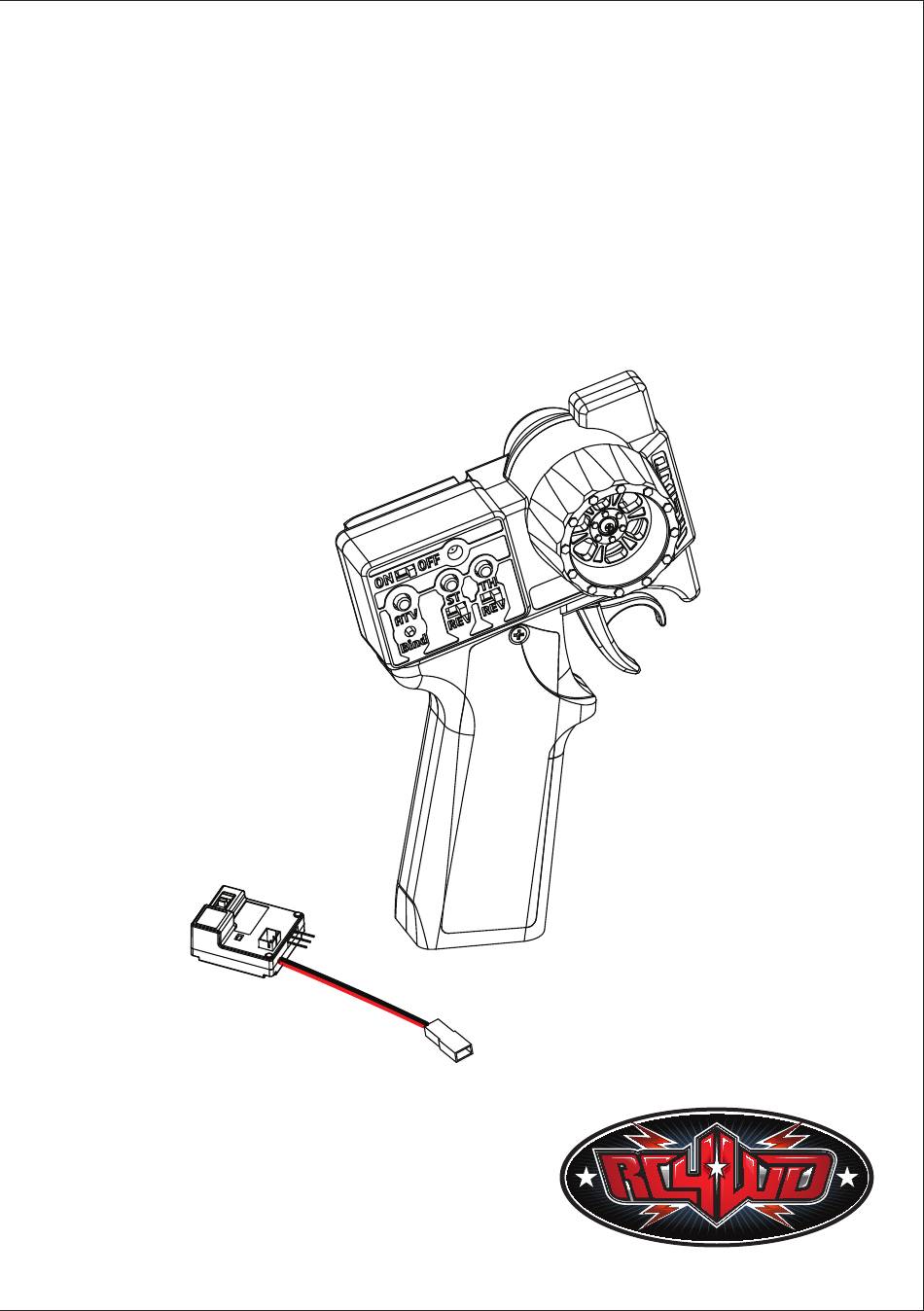

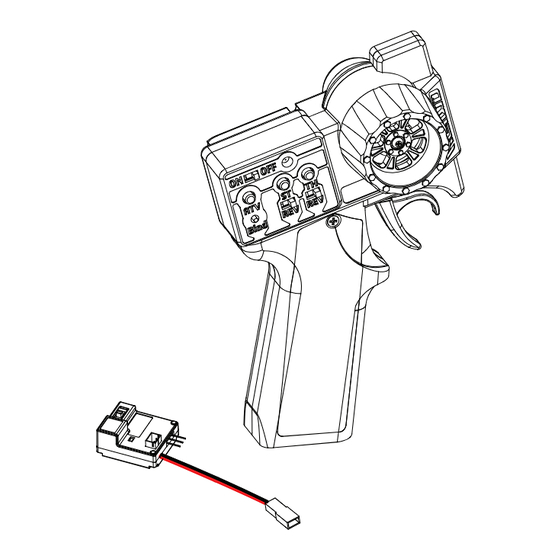

- Page 1 RC4WD XR2 Ultimate Micro Radio and ESC/Receiver...
-
Page 2: Warranty
This warranty lasts 30 days after arrival for original purchaser. In the event of a defect under this warranty, RC4WD will, at our discretion, replace the product, provided our inspection indicates that an original defect exists. RC4WD reserves the right to replace any product which is no longer available with a product of comparable value and function. -
Page 3: Battery Charging
DC7.4V 800mA This charger is designed to charge only 7.4V 850mAh 2S LiPo Battery. Do not use this charger with other batteries. RC4WD can not guarantee compatibility with other batteries. Never let children operate unsupervised while charger is in use. Adult supervision is recommended at all times. - Page 4 Failure to follow instructions associated with this symbol risks injury or even death! Avoid battery liquid contact with skin and clothing. If contact occurs, remove contaminated clothing and wash skin thoroughly with water. Before Use: Read and understand the battery and charger operating instructions before recharging. ONLY use genuine charger unit for NEVER place a battery into water.
- Page 5 The following is an overview of the various functions and adjustments found on XR2 Ultimate Micro radio system for RC4WD models. It is important to read and understand about all of these functions and adjustments before driving. 1. Transmitter Functions...
-
Page 6: Electrical Specifications
XR2 Ultimate Micro ESC/Receiver 1. ESC/Receiver Features Type 2.4GHz RX with Crawler ESC Servo Port Standard 3 Pin Servo Port BEC For Servo 5V,1A Battery 7.2V NiMH or 2S LiPo, JST connector (Use setup key to select battery type) 2. ESC/Receiver... - Page 7 2. Pairing to TX Power off the TX Press and hold the program button of the RX/ESC and turn on RX/ESC, the LED will flash slowly. Program Button Hold the Bind button of TX and then power on TX. When the RX LED Solid On, this means RX has TX LED will flash when binding starts.
- Page 8 3. Setup Your Radio a) Reverse Switches, Trim and ATV Knob If the truck turns the wrong direction when driving, Use the steering trim to make minor adjustments you can reverse the direction with the reverse to keep truck going in a straight line when not switch.
- Page 9 b) Programming the End-points To set the Right End-point of Steering Turn on TX and RX. Hold the steering wheel at right-most position and then hold the setup key for 10+ seconds until LED flashes. Move the steering wheel until the front wheel is at The LED will blink 4 times and then return the TX the right-most position.
-
Page 10: Safety Precautions
Do not use damaged or leaking batteries. Z-S1718 RC4WD AA Batteries Safety Precautions THIS MODEL IS ONLY SUITABLE FOR PEOPLE 14 YEARS OLD AND UP. THIS RADIO CONTROL MODEL IS NOT A TOY. It is recommended that beginners seek advice from an experienced person in order to assemble the model or parts correctly. - Page 11 UK DE DK BG SE CZ ES NL SK HU RO FR PT EE LV LT PL AT CY GR MT IE LU FCC ID: 2AOMDCTX01 FCC Statement: Manufacturer name: RC4WD Inc. Company address: 720 N. Gateway St. Visalia, CA 93291 Contact information: support@rc4wd.com Applicable environment: Toy Frequency range: 2.4GHz...
