Yeacomm P11 User Manual

YEACOMM P11 User Manual

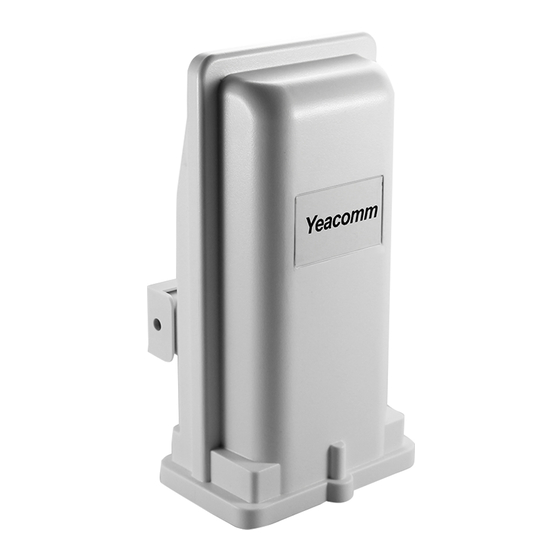

Thank you for choosing Yeacomm YF-P11 4G wireless router,
please read and keep the user manual carefully.

1. Main Technology Parameters

●Working temps : -30℃ -- +60℃
●Relative humidity: 5%--95%
●Working frequency :
LTE: B1/2/3/5/7/8/20/38/40
LTE: B1/2/3/5/7/8/28/38/39/40/41(Optional)
●Power supply : input AC :100V~240V，50Hz~60Hz
Output DC: 15V, 500mA
●Size:252mm*112mm*58mm
●Weight: 560g
● Rate of uplink and downlink: LTE(Cat 4) 150Mbps/DL ；
50Mbps/UL

2. Product Interface and Indicator

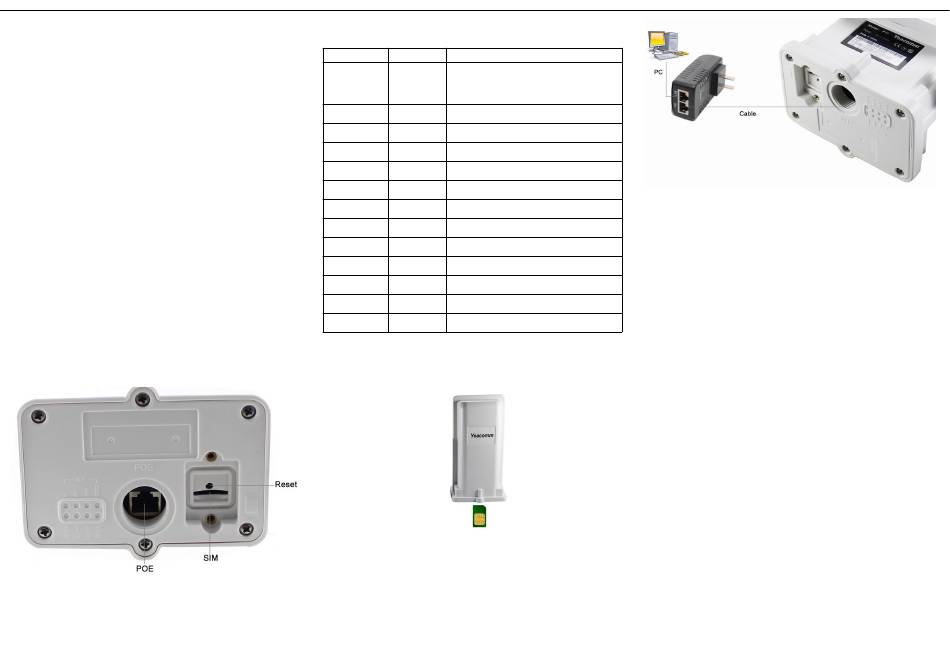

2.1 Product interface
2.2 Indicator
Type Status Description
no signal (the signal status can be
RF All off
checked in the terminal configuration
page)
Signal is poor
One on
Signal is moderate
Two on
Signal is good
Three on
Signal is very good
All on
Power abnormal, the router power off
SYS Off
Power normal, the router power on
On
No SIM or can not detect SIM card
SIM Off
Device read the SIM normally
On
Device doesn't connect to PC
ETH Off
Device connects to PC
On
Device is not running
RUN Off
Device is running
On

3. Installation

3.1 Insert the sim card as below. When you hear a clicking sound,
it means that the USIM card has been installed successfully.
3.2 Connect the power adapter's POE port to outdoor cpe router's
POE port by Cate5e cable.
3.3 Place the unit outside in open space, the front panel face to the
base station. Make sure the unit is fixed well.
3.4 Power on the device, the system will automatically runs in 1~2
minutes.
Attention:
1) Do not insert the SIM card or remove it if power is
connected to the device.
2) Please use the power adapter that came with the device.

4. Quick Config Guide

Connect your PC to the router via Ethernet port. The router supports
Windows XP, Windows 7/8/10, MAC OS, Linux, Android and so on.
First Step：
(1) Make sure the computer obtain IP address automatically. Once
the computer get IP, input CPE IP address into the browser,
press"enter"to access CPE home page. Pls see the username
and password as follows:
Web: 192.168.0.1
Username: admin
Password: admin
