Mebulbs Compass High Bay 100-277V Install Instructions

COMPASS HIGH BAY • 100-277V
INSTALL INSTRUCTIONS
PLEASE FIND A QUALIFIED ELECTRICIAN FOR INSTALLATION. Please read
the instructions before you install and use the luminaire.
WARNING, CAUTIONS AND OPERATING INSTRUCTIONS
• To reduce the risk of death, personal injury or property damage from
fire, electric shock, falling parts, cuts/abrasions, and other hazards read
all warnings and instructions included with and on the fixture box and all
fixture labels.
• Before installing, servicing, or performing routine maintenance upon this
equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires should be
performed by a qualified licensed electrician.
• For The installation: If you are unsure about the installation or maintenance
of the luminaires, consult a qualified licensed electrician and check your
local electrical code.
• To prevent wiring damage or abrasion, do not expose wiring to edges of
sheet metal or other sharp objects.
• Do not make or alter any open holes in an enclosure of wiring or electrical
components during kit installation.
WARNING DISCONNECT POWER BEFORE INSTALLING OR SERVICING.
!

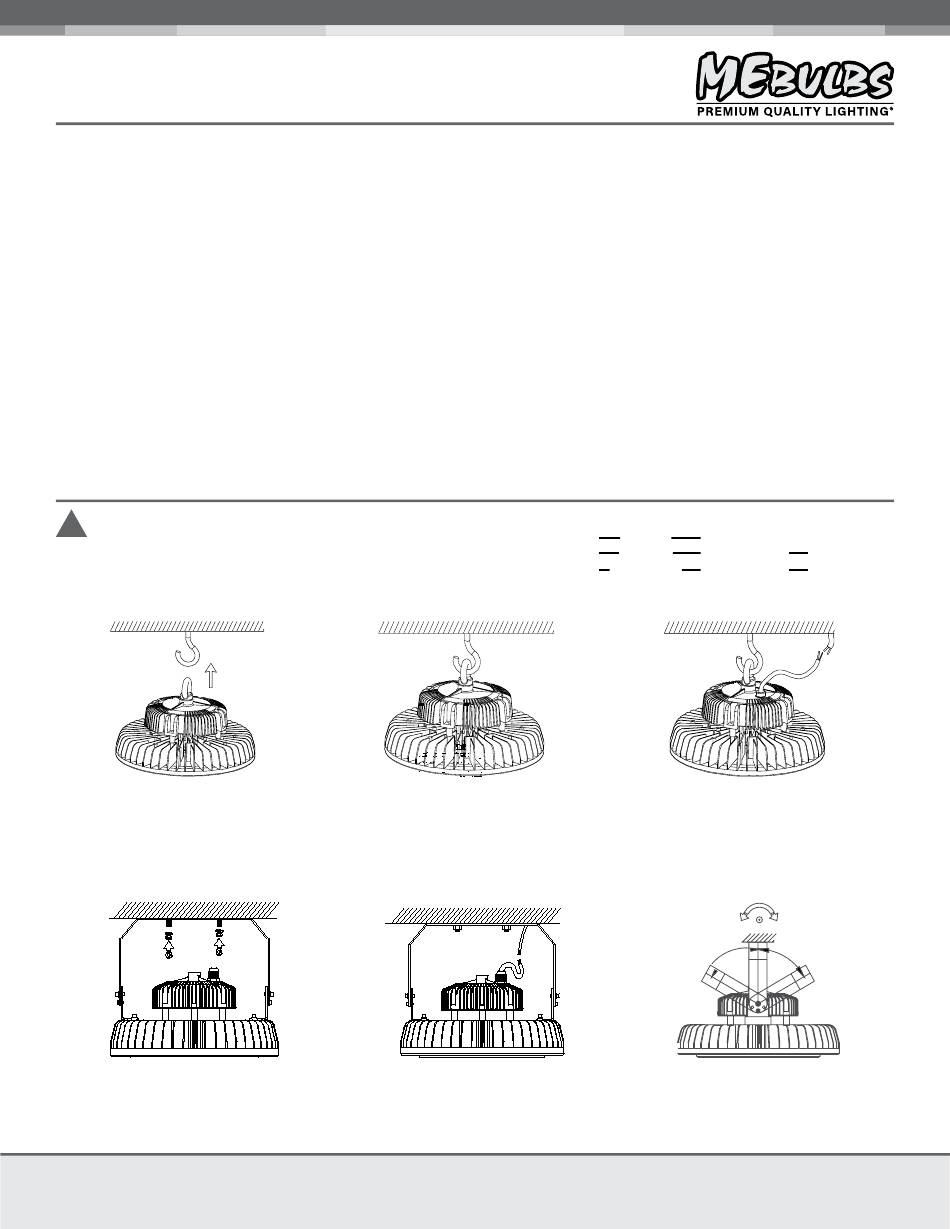

HOOK INSTALLATION • 100W / 150W / 200W / 240W
1. Drill a hole into the ceiling for the
appropriate size hook. (hook provided by
installer)
BRACKET INSTALLATION • 100W / 150W / 200W / 240W *bracket not included
1. Attach the bracket to the mounting
surface.
MEBULBS • WWW.MEBULBS.COM
© 2018 MEBULBS division of Premium Quality Lighting 3001 S University Dr • Fargo ND, 58104 • 1800-MEBULBS
WARNING: RISK OF FIRE OR ELECTRICAL SHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture
to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire
label information.
• Make all electrical and grounded connections in accordance with the
National Electrical Code and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire
connectors.
CAUTION: RISK OF INJURY
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be
hazardous to children.
• Mounting surface should be of sufficient strength to hold more than the
weight of the fixture.
• Suitable for Wet locations.
TO LINE VOLTAGE
100-277V
G
L N
2. Secure hook to the ceiling and hang the
fixture from the hook.
G
L N
2. Connect the electrical cables; Brown-L,
Blue-N, Yellow/Green-Ground. If using in wet
locations, ensure all electrical connections
and installation holes have a water tight seal.
GENERAL WIRING DIAGRAM
Brown (Line)
Blue (Neutral)
Yellow/Green (Grd)
*CAP DIMMING WIRES SEPARATELY IF NOT USING THE DIMMING FUNCTION.
3. Connect the electrical cables; Brown-L,
Blue-N, Yellow/Green-Ground. If using in wet
locations, ensure all electrical connections
and installation holes have a water tight seal.
3. Adjust the bracket to the beam angle you
need.
Specifications are subject to change without notice. Photos and line
drawings may not be to scale and are for general reference only.
TO DIMMER 1-10V
Blue (DIM+) 1-10V dimmable
White (DIM-) 1-10V dimmable
120° adjustable
beam angle
