CO/Tech 50075 Operating Instructions Manual

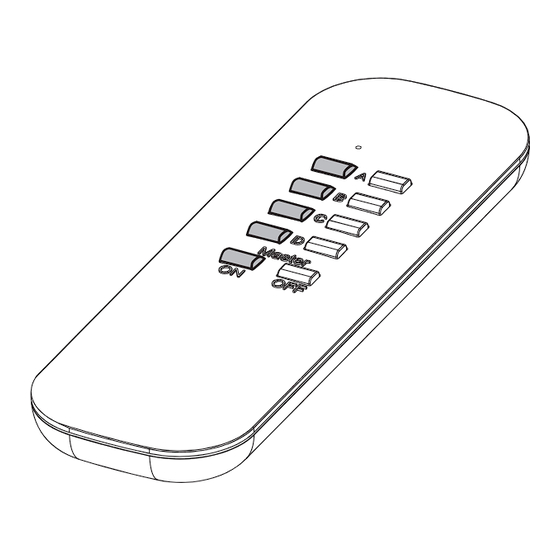

4-Channel Remote Control
Art.no 36-6361 Model
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Things to consider:
• Other wireless equipment using the same frequency band
can reduce the transmission range.
• The range of all wireless equipment depends on the type of
obstacles located between the transmitter and the receiver
(e.g. a concrete wall will interfere with the signal more than
a plasterboard wall).
If you experience problems, try the following:
• Turn off any other existing wireless equipment to check
whether this is the cause of the problem.
• Reposition the wireless equipment, shorten
the distance between the transmitter and the receiver
or reduce the number of obstacles (walls, furniture, etc.)
between them.
Operating instructions
Pairing the remote control to a receiver
1. Remove the plastic tab to
activate the battery.
2. Make sure that the receiver
that you are going to use
the remote control with
is ready to be paired to
the remote control (refer
to the user manual of
the receiver).
GREAT BRITAIN • CUSTOMER SERVICE tel. 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
3. Press [ ON ] on the remote
control to select the channel
(A, B, C or D) which
50075
you want to pair with
the receiver. An infinite
number of receivers
can be paired to each
of the channels on
the remote control but
they will all be switched on
and off at the same time.
4. Switch the receiver on/off using the [ ON ]/[ OFF ] buttons on
the remote control. The [ Master ON/OFF ] button switches
all the paired receivers on or off simultaneously.
Dimming a connected light
If the receiver you are using is dimmable, you can use
the remote control to dim the light connected to the receiver.
What to do:
1. Switch the light on by pressing [ ON ] on the remote control.
2. Press [ ON ] on the remote control again to cause the light
level to alternately increase and decrease.
3. Press [ ON ] once again when the desired light level has
been reached.
Deleting a receiver from the remote control
1. Make sure that the receiver that you wish to delete from
the remote control is in the correct mode for removing
devices (refer to the manual of the receiver).
2. Press [ OFF ] on the remote control.
Care and maintenance
• Clean the exterior of the remote control by wiping it
with a damp cloth. Use only mild cleaning agents,
never solvents or corrosive chemicals.
• Remove the battery and store the remote control out of
reach of children if it is not to be used for a long time.
Changing the battery
1. Remove the cover of the battery compartment from
the back of the remote control.
2. Insert a new battery (1 × CR2032). Insert the battery with
the (+) facing upwards.
3. Refit the battery cover.
Troubleshooting guide
The remote • Check the battery and replace it if
control is not necessary.
working. • Has the receiver been paired with
a remote control as described above?
Try pairing them again.
• Check that the device (e.g. light) which is
connected to the receiver is switched on
and not faulty.
• Is the remote control too far from
the receiver?
• Is the signal being blocked by furniture or
furnishings?
Responsible disposal
This symbol indicates that this product should not
be disposed of with general household waste.
This applies throughout the entire EU. In order
to prevent any harm to the environment or
health hazards caused by incorrect waste
disposal, the product must be handed in for
recycling so that the material can be disposed
of in a responsible manner. When recycling your
product, take it to your local collection facility
or contact the place of purchase. They will
ensure that the product is disposed of in
an environmentally sound manner.
Specifications
Frequency 433.92 MHz
Range 25 m
Battery 1 × CR2032 (included)
Channels 4 +1 master switch
