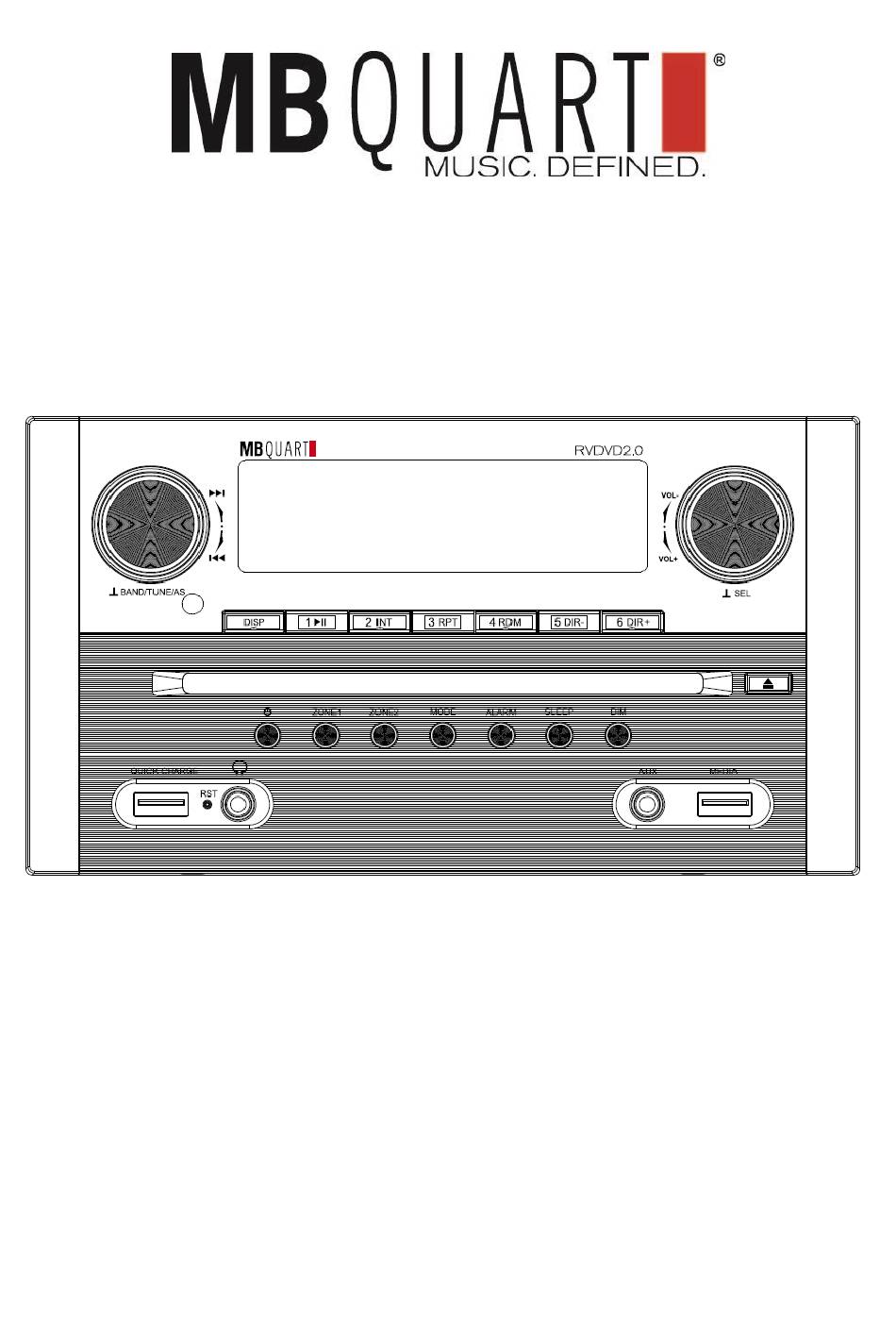

- Page 1 RVDVD2.0 USER MANUAL AM/FM/WB ● Bluetooth ● USB ● HDMI● Multi-Zone ® RV DVD Player and Media Receiver...
-
Page 2: Pre-Installation Checklist
PRE-INSTALLATION CHECKLIST Thank you for purchasing the MB Quart RVDVD2.0 multi-zone RV radio with AM/FM, USB, Bluetooth audio streaming and a built-in DVD player. Please take a few minutes to review the user manual before attempting installation and operation. Additional support documentation can be found at MBQUART.com or by emailing support@maxxsonics.com. -
Page 3: Wiring And Installation
WIRING & INSTALLATION REAR PANEL DETAIL... -
Page 4: Install The Unit
WIRING & INSTALLATION INSTALL THE UNIT Please note: This unit requires a minimum 6-3/4” mounting depth which includes space for the electrical/speaker plugs and any A/V input and output connections. 1. Cut or utilize a mounting opening 7”(H) x 2” W). 2. -
Page 5: Front Panel Controls & Inputs
FRONT PANEL CONTROLS & INPUTS... - Page 6 FRONT PANEL FUNCTIONS (BY MODE) BUTTON ACTION RADIO DISC/USB AUX IN 1/2 BT MUSIC Power ON/ Power ON/ Power ON/ Power ON/ Short Mute ON/OFF Mute ON/OFF Mute ON/OFF Mute ON/OFF POWER Long Power OFF Power OFF Power OFF Power OFF Zone 1 Zone 1 Zone 1...
- Page 7 OPERATION POWER AND BASIC ADJUSTMENTS Turn the Unit ON or OFF Press button to turn the unit ON. When the unit is switched on, press and hold button for 2 seconds to switch the unit OFF. A “GOOD BYE” message is displayed to confirm power down.
- Page 8 OPERATION POWER AND BASIC ADJUSTMENTS (Continued) Setting Adjustments (AM/FM Source ONLY) The AM/FM source adds additional settings to the adjustment menu. Press and hold VOLUME/SEL button for the setting menu: BEEP ON/OFF- CLOCK 12/24 - P_VOL – CT SYNC or CT INDEP – AREA USA or AREA EUR– DX or LOC – STEREO or MONO ...
- Page 9 OPERATION ZONES, DISPLAY, ALARM & SLEEP ZONE 1 Operation ZONE 1 is connected to the unit’s on-board FRONT speaker and preamp-level RCA outputs. Quickly press and release the ZONE 1 button to select between the zone being active or disabled. The LCD screen will indicate the status of the zone above the button.
- Page 10 OPERATION Alarm Time Setting Procedure When ALARM is set to “ON”, press and hold the “ALARM” button again to set the time. If the ALARM setting is “OFF”, simply press and hold the “ALARM” button to go directly to setting the alarm. This will not turn the alarm on, it will only set the time. If no alarm time has begun setting within 5 seconds, the alarm time setting mode is automatically cancelled.
- Page 11 OPERATION DVD PLAYER, HDMI ARC, AUX INPUTS & HEADPHONES DVD/CD Player This unit plays DVDs and audio CDs. For DVDs, the V-OUT 1 and/or HDMI output must be connected to a monitor to display the picture. You can connect both outputs and two separate TVs if you wish - one via HDMI and the other via V-OUT 1 (Composite Video).
- Page 12 OPERATION AM/FM/WB RADIO Receive a Radio Station There are 3 FM station groups - FM1, FM2 and FM3. There is one weather band (WB) selection. There are 2 AM station groups - AM1 and AM2. To select a radio station group, press the MODE button to select the radio mode. Next press BAND button to select desired group (FM1, FM2, FM3, WB, AM1 or AM2).
- Page 13 OPERATION USB Sources Connecting a USB Device This unit supports USB source devices such as a thumb drive or portable media player. Insert the USB device into the front panel USB port labeled “MEDIA.” If the USB drive only contains music files, these will begin to play automatically. Playing or Viewing USB Files The unit supports playback of MP3 and WMA files.
- Page 14 OPERATION USB Sources (Continued) Random (RDM) Function The RANDOM function simply randomizes all files. This is also called “shuffle” on some devices. Press 4/RDM button to choose RDM on/off. o RDM ON: Plays all files in random order. o RDM OFF: Turns off the random function. Directory+/- Function (for MP3/WMA files only) If you have a USB device set up with folders (such as by artist or playlist), the Directory function allows you to navigate the folders for MP3 and WMA music files.
- Page 15 OPERATION USB Sources (Continued) Search MP3/WMA Songs – Numeric Search Mode (NUM) The unit allows users to directly input a song number or rotate through the dial to quickly get to a specific song (file) on the USB device. To numerically search songs on a USB device, press and hold the DIM button on the front panel.
- Page 16 You must first pair a Bluetooth-enabled device to stream music to your unit. Select “search” or “discover” on the Bluetooth device while the unit is in the BT MUSIC mode. “RVDVD2.0” should appear in the list of available devices. Select “RVDVD2.0.” If a password is required, input “0000.”...
-
Page 17: Remote Control
REMOTE CONTROL IR Remote Operation... - Page 18 REMOTE CONTROL KEYS RADIO DISC AUX IN BT MUSIC ACTION Power ON/ Power ON/ Power ON/ Power ON/ Power ON/ Short Mute ON/OFF Mute ON/OFF Mute ON/OFF Mute ON/OFF Mute ON/OFF POWER Power OFF Power OFF Power OFF Power OFF Power OFF Long Zone 1 Active /...
- Page 19 REMOTE CONTROL Recall M2 Short INT On/Off/SCH:2 INT On/Off/SCH:2 Station 2/INT Save Station to Long Recall M3 RPT(ONE/ALL)/ RPT(ONE/ALL)/ Short Station SCH:3 SCH:3 3/RPT Save Station to Long Recall M4 Short Station On/Off/SCH:4 On/Off/SCH:4 4/RDM Save Station to Long Recall M5 Short DIR-/SCH:5 DIR-/SCH:5...
- Page 20 REMOTE CONTROL Short Alarm ON/OFF Alarm ON/OFF Alarm ON/OFF Alarm ON/OFF Alarm ON/OFF ALARM Long Alarm Setting Alarm Setting Alarm Setting Alarm Setting Alarm Setting Short Sleep ON/OFF Sleep ON/OFF Sleep ON/OFF Sleep ON/OFF Sleep ON/OFF SLEEP Sleep Setting (1- Sleep Setting (1- Sleep Setting (1- Sleep Setting (1-...
-
Page 21: Specifications
SPECIFICATIONS GENERAL Power Supply Requirements: DC 12 Volts, Negative Ground Current Drain: 10 Ampere (max.) Maximum Output Power: 4 x 16 watts into 4 Ohms @ 14.4V DC Preamp Output Voltage: 2.2V (with AUX, USB, or AM/FM/WB Source) 1.5V (with BT Source) or 2.1V (with DVD Source) 6-3/4”... - Page 22 The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use such marks by MB Quart is under license. All product names, logos, and brands are property of their respective owners. All company, product and service names used in this literature are for identification purposes only.
