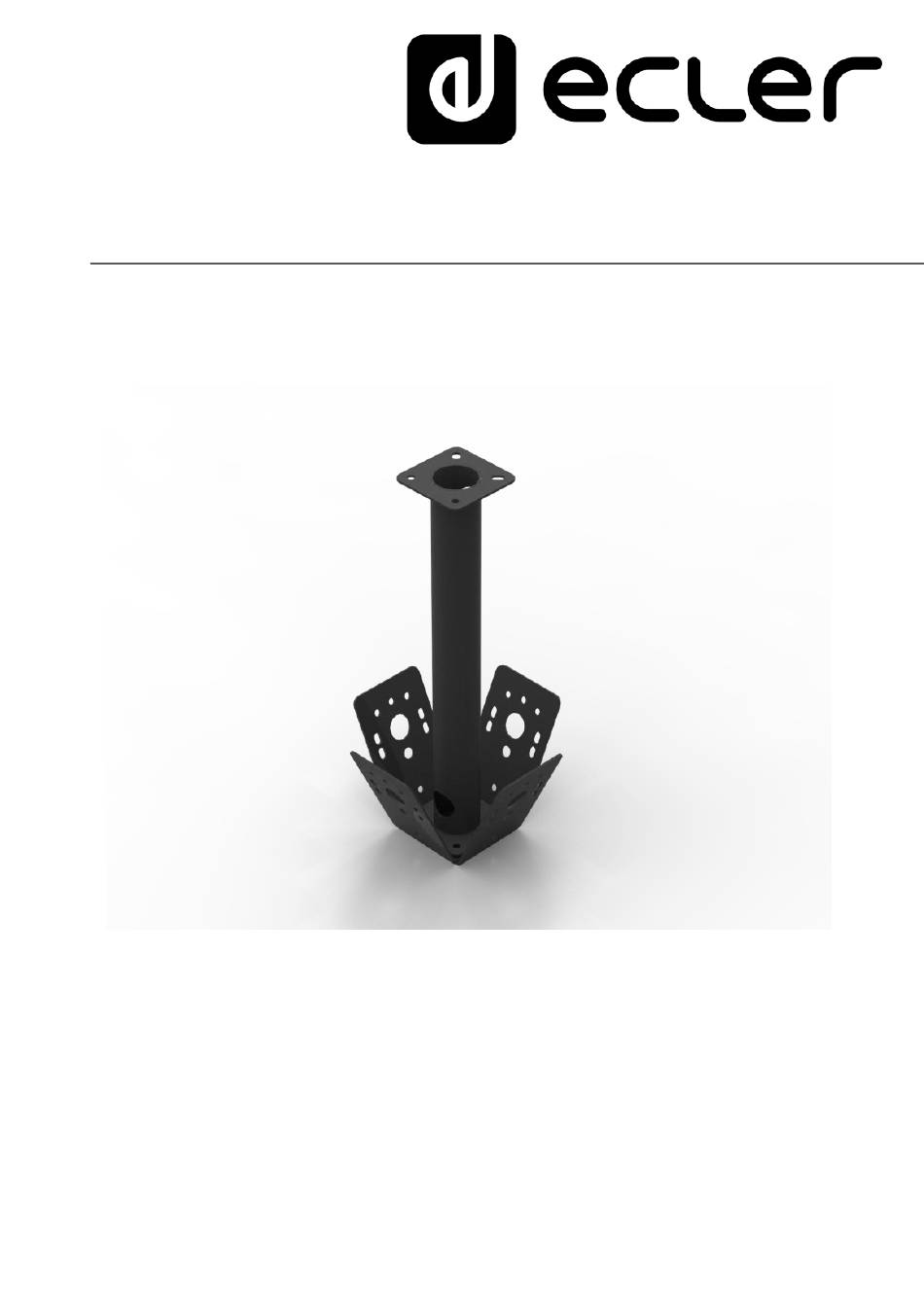

- Page 1 PCS124 LOUDSPEAKERS HARD WAR E Pendant Cluster Mounting Kit INSTALLATION QUICK GUIDE...
-
Page 2: Table Of Contents
CONTENT Important note Precautions Introduction Installation Technical specifications... -
Page 3: Important Note
IMPORTANT NOTE Congratulations. You now own the result of a well-designed, carefully produced manufacture. We thank you for your trust by having chosen our PCS124 mounting kit. PRECAUTIONS Read these instructions Keep these instructions Pay attention to all the warnings ... -
Page 4: Installation
INSTALLATION Attach the U-brackets needed to the pole: 2 x U-brackets included in the kit. - Page 5 Route the audio cables through the holes in the bar to connect the loudspeakers. Screw the PCS124 to the ceiling.
- Page 6 Screw the loudspeaker wall-mount brackets to the PCS124. It will be necessary 2 screws M6x30 for the AUDEO103 or AUDEO106 (left), or 3 screws M5x30 for the eMOTUS wall-mount bracket (right).
-
Page 7: Technical Specifications
All product characteristics are subject to variation due to production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 information@ecler.es www.ecler.com...
