Summary of Contents for Hill Audio RPD-2200

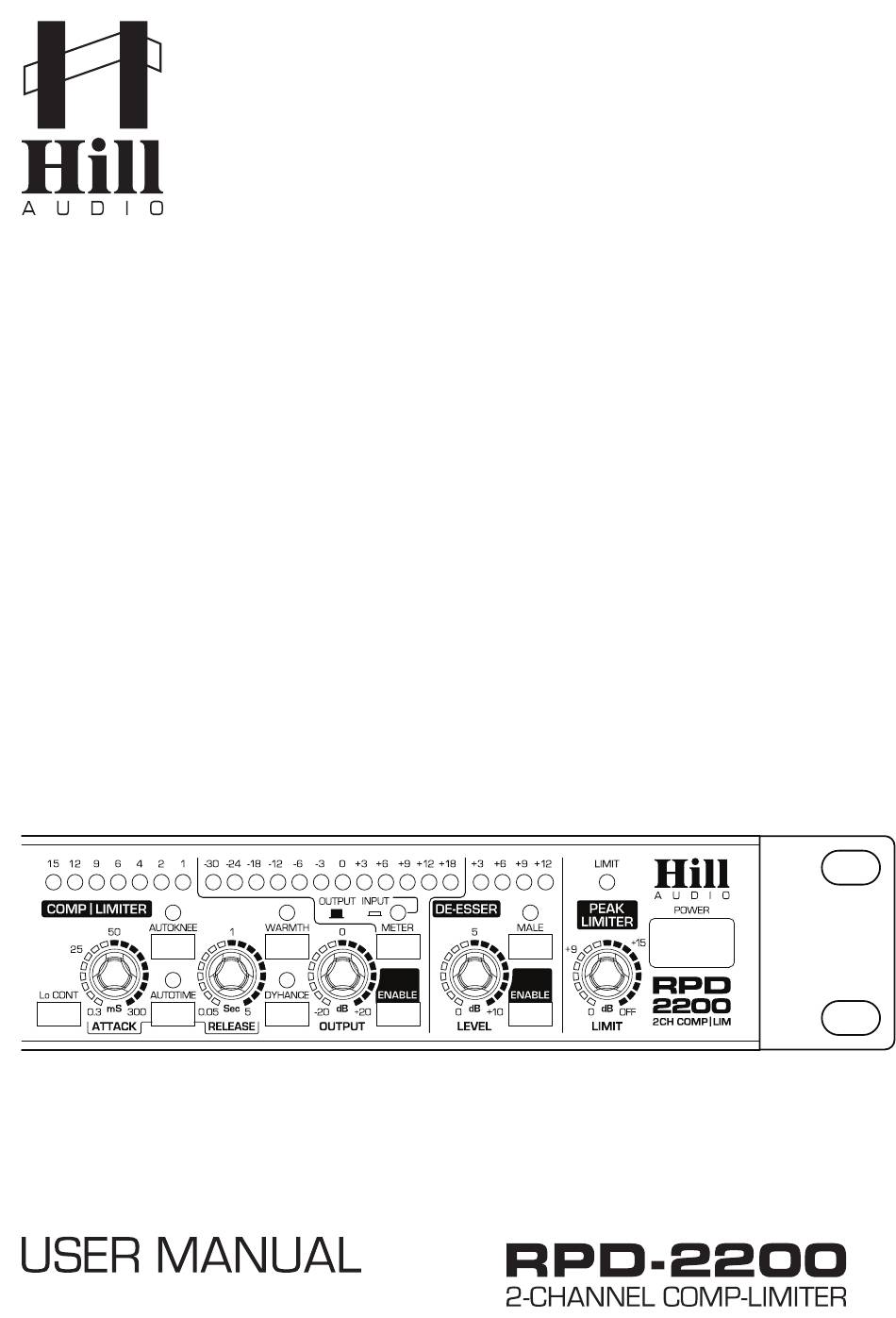

- Page 1 RevA 06-2017...
-
Page 2: Important Safety Instructions
USER MANUAL - RPD2200 COMPRESSOR LIMITER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English. -
Page 3: Health Advice
USER MANUAL - RPD2200 COMPRESSOR LIMITER Description The RPD-2200 is a dual dynamics processor with link option for expansion, gating, compressing, peak limiting, de-essing and enhancing of audio signals. Automation functions for compression parameters and comprehensive manual parameter adjustment options as well as level virtualizations make this unit a versatile companion for all dynamics management tasks. -
Page 4: Controls And Connections
USER MANUAL - RPD2200 COMPRESSOR LIMITER Controls and Connections 13 15 PAGE 3... -
Page 5: Functional Description
USER MANUAL - RPD2200 COMPRESSOR LIMITER Functional Description The RPD-2200 is a dual dynamics processor with link option for expansion, gating, compressing, peak limiting, de-essing and enhancing of audio signals. Automation functions for compression param- eters, comprehensive manual parameter adjustment options and level virtualizations make this unit suitable for a large variety of applications in recording, live sound and installation environments. - Page 6 USER MANUAL - RPD2200 COMPRESSOR LIMITER COMPRESSOR THRESHOLD DISPLAY. These three LEDs indicate whether the input signal is above or below the adjusted compressor threshold. The white LED in the middle refers to the AUTOKNEE’s “soft knee” range (if AUTOKNEE is on). COMPRESSOR SC EXT (SIDECHAIN EXTERNAL) switch with LED.
- Page 7 USER MANUAL - RPD2200 COMPRESSOR LIMITER COMPRESSOR INPUT/OUTPUT meter. This 12-digit LED display reads both the level of the incoming audio signal and the level at the dynamics processor output. The range is from -30 to +18 dB. COMPRESSOR IN/OUT meter switch with LED. This selects whether the gain LEDs read the input signal (switch pressed) or the output signal (switch not pressed).
-
Page 8: Operation
USER MANUAL - RPD2200 COMPRESSOR LIMITER Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately. - Page 9 USER MANUAL - RPD2200 COMPRESSOR LIMITER Connections The RPx series processors use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.
-
Page 10: Technical Specifications
USER MANUAL - RPD2200 COMPRESSOR LIMITER Technical Specifications Signal/Noise......>95dBu (unwgtd 22Hz-22KHz) A C IN ..........115V/230~ 50/60Hz Crosstalk Damping........＞85dB (Line) Power consumption..........max. 20W THD............＜0.01% (Line) Dimensions......W483xH44.5xD162.0mm Frequency response........20Hz – 20 kHz Weight..............2.40 kg Maintenance and warranty While we have chosen the best components to make this product as rugged and reliable as possible, some parts in audio products (potentiometers, faders, switches) are subject to wear which is a matter of operation cycles, and not of time. - Page 11 USER MANUAL - RPD2200 COMPRESSOR LIMITER PAGE 10...
-
Page 12: Ec Declaration Of Conformity
Burnham-on-Crouch, 30.06.2017 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...
