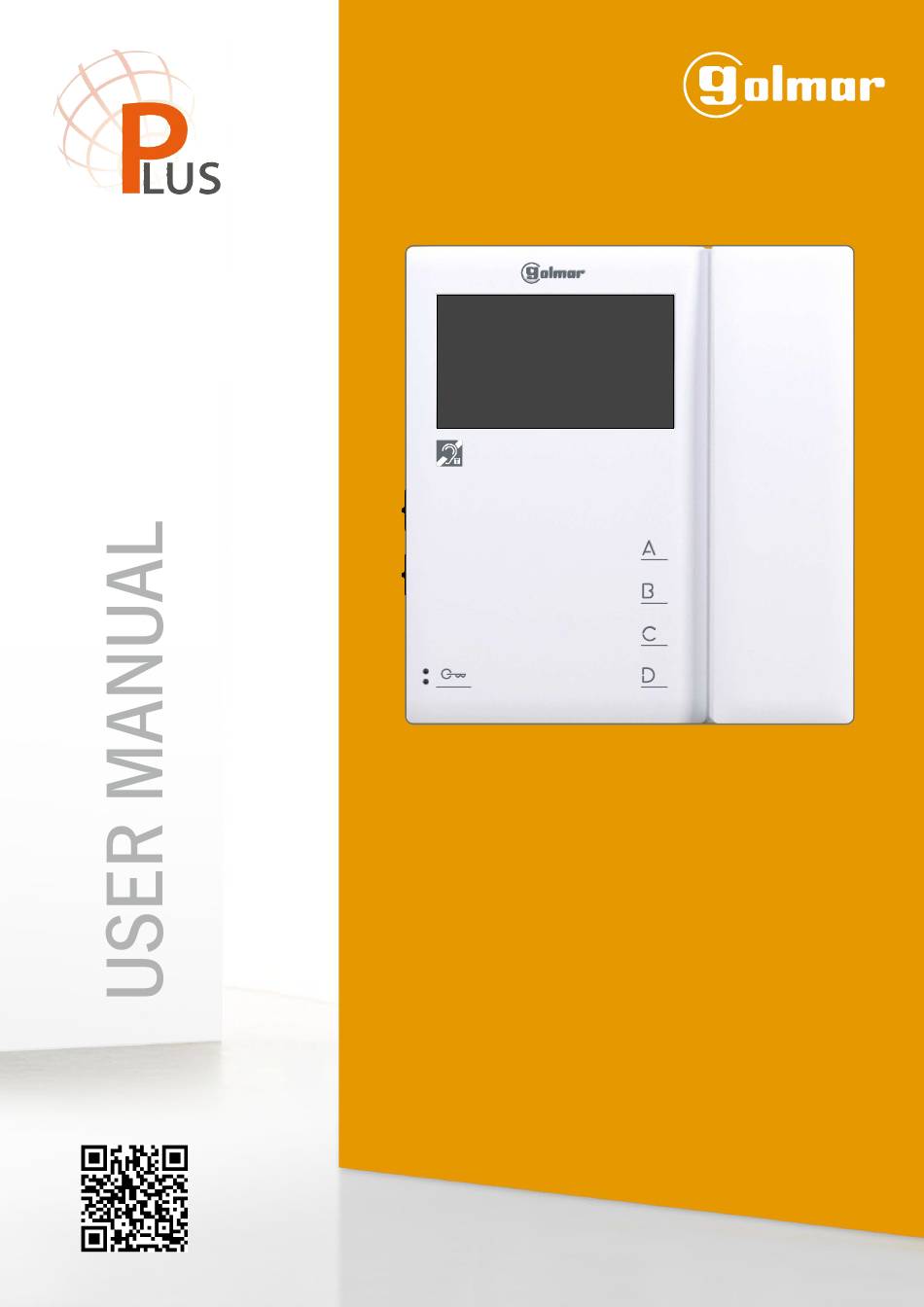

  • Page 1 TECHNOLOGY TEKNA-S PLUS MONITOR Code 50122251 REV.0219 TEKNA PLUS...

  • Page 2: Table Of Contents

    TEKNA-S PLUS MONITOR INTRODUCTION First of all, we thank and congratulate you for purchasing this product manufactured by Golmar. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification and the manufacture of products like the one you have just purchased.

  • Page 3: Characteristics

    TEKNA-S PLUS MONITOR CHARACTERISTICS Monitor for Plus / Uno installation. 4.3” TFT colour screen. Monitor with 3 common wires plus coaxial cable. Monitor with 4 common wires plus twisted pair. Monitor with UTP cabling plus RJ-45 connector. Enables communication with hearing aids equipped with T-mode, making conversation possible (inductive loop).

  • Page 4: Description Of The Monitor

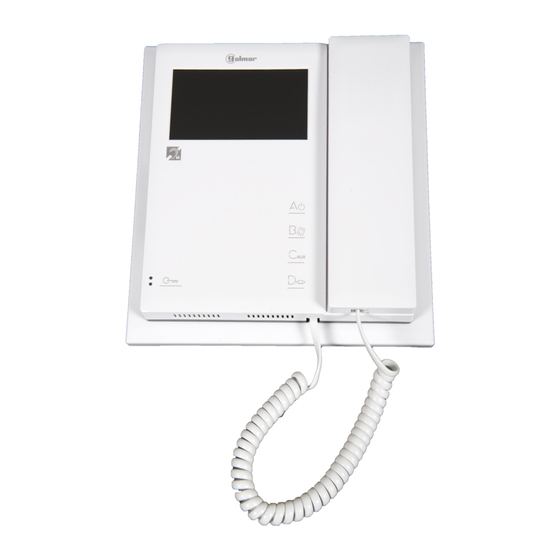

    TEKNA-S PLUS MONITOR DESCRIPTION OF THE MONITOR Description of the Tekna S Plus monitor: TEKNA-S PLUS 11742126 15090200000 ADDRESS INTER SLAVE MASTER ESCALERA PISO PUERTA STAIR FLOOR DOOR ATENCIóN Alta tensión. No abrir la tapa. Manipular sólo por personal del servicio técnico.

  • Page 5: Function Buttons

    TEKNA-S PLUS MONITOR DESCRIPTION OF THE MONITOR Function buttons: One long press for 2 seconds: with the monitor in standby and the handset on the hook, this activates ringtone volume mode, with a tone indicating the volume selected. Then each long 2-second press (before 5 seconds elapse) selects a volume level: maximum, no volume 'night mode,' minimum and medium, and so on (carousel mode).

  • Page 6: Sw1 Dip Switch

    TEKNA-S PLUS MONITOR DESCRIPTION OF THE MONITOR Description of the SW1 DIP switch: The SW1 DIP switch is located at the back of the monitor on the right-hand side. It enables the monitor to be configured as master/slave and an address to be assigned.

  • Page 7: Rj-45 Connector (Installation With Utp Cable)

    TEKNA-S PLUS MONITOR DESCRIPTION OF THE MONITOR Description of the RJ-45 connector (installation with UTP cable): The monitor features an RJ-45 connector for installation with a UTP cable. It is located at the back of the monitor on the right-hand side.

  • Page 8: Installing The Monitor In A Wall Mounting Connector

    TEKNA-S PLUS MONITOR INSTALLING THE MONITOR IN A WALL MOUNTING CONNECTORE Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the connector must be positioned at a height of 1.60 m. The minimum distance between the sides of the connector and the closest object must be 5 cm.

  • Page 9: Installing The Monitor In An Embedding Box

    TEKNA-S PLUS MONITOR INSTALLING THE MONITOR IN AN EMBEDDING BOX Avoid dusty or smoky environments or locations near sources of heat. Location of the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5 cm.
  • Page 10 TEKNA-S PLUS MONITOR PROGRAMMING THE MONITORS Programming the TEKNA S PLUS monitor: Locate the SW2 DIP switch on the EL632 Plus sound module of the door panel or the EL500SE microprocessor and set to ON. In systems with more than one door panel, only perform this procedure on the main panel of each building.
  • Page 11 TEKNA-S PLUS MONITOR PROGRAMMING THE MONITORS Continued from previous page. To programme it as Slave without video (in call), press button and the status LED will blink (green) once. If button is pressed again, the monitor will return to being programmed as...

  • Page 12: Advanced Programming (Monitor Functions)

    TEKNA-S PLUS MONITOR ADVANCED PROGRAMMING (MONITOR FUNCTIONS) Advanced programming of the functions of the Tekna S Plus monitor: Advanced programming enables the monitor's default settings to be changed: Turn off the monitor to be programmed (press button for 3 seconds).

  • Page 13: Changing The Function Of Button

    TEKNA-S PLUS MONITOR ADVANCED PROGRAMMING (MONITOR FUNCTIONS) Continued from previous page. Men 2: Then adjust the settings as required: Button has no function. No function. Changing the function of button : Intercom function (default setting). Select the function to assign to button...

  • Page 14: Repeating The Ringtones

    TEKNA-S PLUS MONITOR ADVANCED PROGRAMMING (MONITOR FUNCTIONS) Continued from previous page. Men 3: Then adjust the settings as required: Repeating the ringtones: One repeat (default setting). To 'repeat the ringtone' on the monitor: Each press on button selects a repeat of the ringtones which is indicated with blinks (1 to 3 blinks) of the programming LED and in the following order: 1, 2 or 3 repeats.
  • Page 15 TEKNA-S PLUS MONITOR ADVANCED PROGRAMMING (MONITOR FUNCTIONS) Continued from previous page. Men 4: Then adjust the settings as required: Setting to the 'default setting' all of the monitor's advanced programming options: Setting to the 'default setting': Press button and the monitor will indicate with two audible tones that all of the options of the monitor's advanced programming (pp.

  • Page 16: Optional Connections

    TEKNA-S PLUS MONITOR OPTIONAL CONNECTIONS Activating auxiliary devices with Tekna S Plus monitors: Auxiliary device activation requires the use of an SAR-12/24 relay unit. If the feature is shared by all monitors, connect their A1 terminals; if, however, each monitor has its own feature, use an SAR-12/24 relay for each one and do not connect their A1 terminals.

  • Page 17: Button For Receiving Calls From The Apartment Front Door

    TEKNA-S PLUS MONITOR OPTIONAL CONNECTIONS Continued from previous page. Intercom between two points in the same apartment: The Tekna S Plus monitor features as standard an intercom function between two points in the same apartment. To enable this function, the following is necessary: One of the monitors needs to be configured as master and the other as slave with intercom, as described on p.

  • Page 18: Activating A Second Camera

    TEKNA-S PLUS MONITOR OPTIONAL CONNECTIONS Continued from previous page. Activating a second camera: To activate a second camera, it is necessary to use an SAR-12/24 relay unit and to change the configuration of function button on the monitor, as described on p. 13.

  • Page 19: Wiring Diagrams

    TEKNA-S PLUS MONITOR WIRING DIAGRAMS Video door entry system with coaxial cable: Remove the JP1 jumper from all of the distributors except the last. Tekna S Plus Tekna S Plus D4L-PLUS Tekna S Plus Tekna S Plus D4L-PLUS M =Master.
  • Page 20 TEKNA-S PLUS MONITOR WIRING DIAGRAMS Video door entry system without coaxial cable: Tekna S Plus Tekna S Plus EL562S EL562S Remove the JP1 jumper from all of the distributors except the last. D6L-Plus/2H Tekna S Plus Tekna S Plus EL562S...

  • Page 21: Notes

    TEKNA-S PLUS MONITOR NOT S:...

  • Page 22: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
