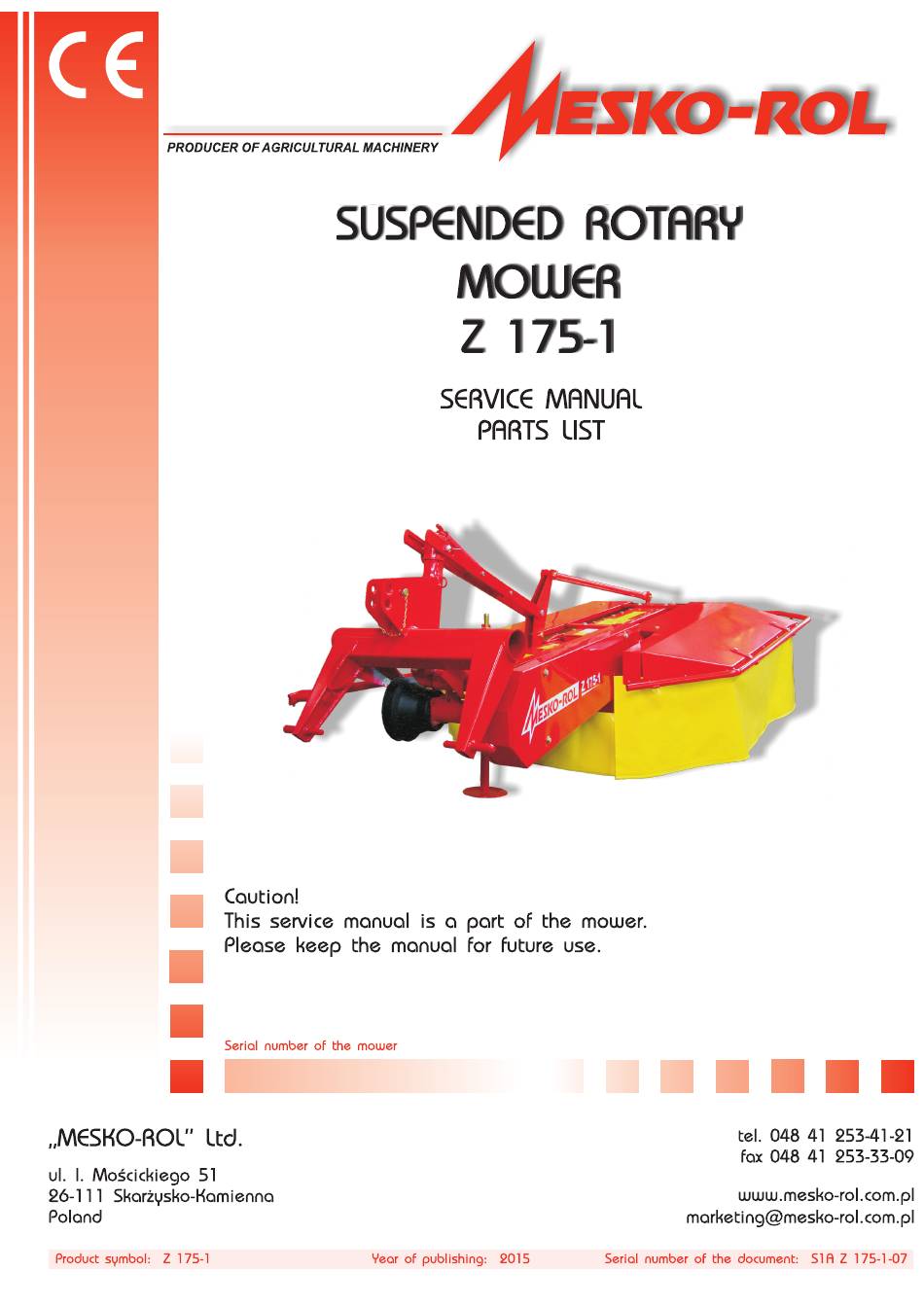

Mesko-Rol Z 175-1 Service Manual And Parts List

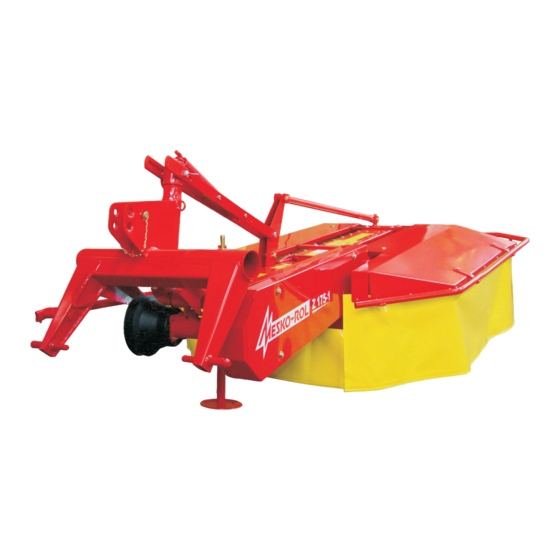

Suspended rotary mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z 175-1 and is the answer not in the manual?

Questions and answers

stephen hurley
June 20, 2025

drum loose

0
stephen hurley
June 20, 2025

drum loose and digging into bottom pan on other side

0

Summary of Contents for Mesko-Rol Z 175-1

  • Page 2: Table Of Contents

    CONTENTS: 1. EU DECLARATION OF CONFORMABILITY ………………………………………. 2. INTRODUCTION ………………………………………………………………………... 3. APPROPRIATE USE OF THE MACHINE ……………………………………………. 3 4. SAFETY OF USE …………..…………………………………………………………….. 4.1. General safety principles ………………………………………………………. 4.2. Detailed safety principles ……………………………………………………… 4.2.1. Preparation for work ……………………………………………………. 4.2.2. Transporting …………………………………………………………….. 4.2.3.

  • Page 3: Eu Declaration Of Conformability

    1. EU DECLARATION OF CONFORMABILITY FOR MACHINES: We, the company “MESKO-ROL” Sp. z o.o. 26-111 Skarżysko-Kamienna, ul. I.Mościckiego 51, Poland declare with full responsibility that machine SUSPENDED ROTARY MOWER Z 175-1 № ………………………… which this declaration refers to, complies with requirements of: ...

  • Page 4: Introduction

    0048 41 2533309 e-mail: marketing@mesko-rol.com.pl webpage: www.mesko-rol.com.pl „MESKO-ROL“ Ltd. constantly tries to improve its products. We reserve ourselves the right to introduce any changes and improvements which we consider necessary. We have no obligation for modernizing already sold machines.

  • Page 5: Safety Of Use

    4. SAFETY OF USE IMPORTANT INFORMATION FOR A USER THE WARNING SYMBOL This warning symbol points important information referring danger to body or life of people and animals, which is showed in the service manual. If you see the symbol – be aware and read carefully the given information.

  • Page 6: Detailed Safety Principles

    4.2. DETAILED SAFETY PRINCIPLES. 4.2.1. PREPARATION FOR WORK  CAREFULLY read the service manual. Be absolutely sure that you are acquainted with all the safety and mower operating instructions referring the preparation for work, transport and storage of the machine. If you do not follow the given instructions the producer do not answer for the possible harms or damages.

  • Page 7: Transporting

     ALWAYS use front weights, when the front axle of the tractor is too lightened.  YOU CAN APPROACH the mower only when the tractor’s engine and the mower’s drums are totally still.  NEVER operate the mower while being under alcohol, drugs or medicines that can restrain the ability of concentration.

  • Page 8: Disconnecting The Mower From The Tractor For The Stop And Storage

    4.2.4. DISCONNECTING THE MOWER FROM THE TRACTOR FOR THE STOP AND STORAGE.  DISCONNECT THE PTO SHAFT only after you put the mower on the ground, stop the engine, immobilize the tractor and take the ignition key off.  BEFORE YOU DISCONNECT the mower from the tractor lower the support and block it with a pin.

  • Page 9: Safety Signs

    4.2.6. SAFETY SIGNS The warning and information labels are put on the mower in places showed at Fig.1. Warnings and information are given as pictograms that show clear instructions where to put especial attention to work safely with the mower. Carefully watch every label and thoroughly check the meaning in this chapter of the service manual.
  • Page 10 Fig.1. Placing the warning and information labels on the mower.

  • Page 11: Mower Operating

    GENERAL CHARACTERISTICS AND DESCRIPTION OF THE MOWER. The Z 175-1 rotary mower cooperates with an over 23 kW tractor of II category. It is assigned for mowing grass and low-stem green forage on even and sloped up to 12° fields and meadows.

  • Page 12: Preparation For Transport And Transporting

    The mower is supplied partly disassembled. Assemble the machine in accordance with Fig. 12., 13. and 16. of the parts list. The three-point frame 1. is attended for mounting the mower on tractor. The power is transmitted to the power take-off shaft through the jointed shaft, belt transmission (indirect drive 2.) to the main drive 3.

  • Page 13: Assembling A Pto Driver Shaft

    Fig. 3. Linking of the mower and the tractor into a working unit. 1 – transport rod, 2 – mandrel, 3 – pin, 4 – support, 5 – yoke. 5.2.2. ASSEMBLING A PTO DRIVE SHAFT For driving the mower use the PTO drive shaft of the type given in the manual. CAUTION! Always use shields of the PTO shaft and tractor’s drive shaft.

  • Page 14: Setting The Mower In Working Position

    5.3. SETTING THE MOWER IN WORK POSITION CAUTION ! Before releasing the transport rod from the mandrel, position the mower and tractor horizontally; if necessary, secure the mower against unintended departing.  Lower the mower to the ground, release the transport rod 1., mount the PTO shaft on the yoke 9.

  • Page 15: Mowing

    Fig. 6. Correct setting of the mower. CAUTIONS !  Start the mower only when set in working position.  Before working with the machine read the service manual carefully.  It is inadmissible to lift the mower on a hydraulic lift with power feed on and rotating drums.

  • Page 16: Preparation For The Stop And Disconnecting The Mower From The Tractor

    5.5. PREPARATION FOR THE STOP AND DISCONNECTING THE MOWER FROM THE TRACTOR. To disconnect the mower from the tractor proceed as follows:  Set the mower in the transport position.  Set up the support 4 (Fig. 3.) in position for the stop. ...

  • Page 17: Routine Technical Maintenance

    6.1. ROUTINE TECHNICAL MAINTENANCE  Regularly check the condition of knives. Each drum should be equipped with three new or uniformly worn CMA 120 knives. A suitable wrench is provided for replacing the knives (Fig. 8.). Correctly settled knife should easily spin on the knife-holder pin. Fig. 8. shows how to replace the cutting knives.

  • Page 18: Lubrication

    6.2. LUBRICATION.  During the operational use the mower should be lubricated every day (the lubricating points are shown in Fig.10.) The main frame filled with grease “Liten EPX 00” ORLEN OIL doesn’t require checking.  If a repair has been conducted, the amount of lubricant should be refilled! The lubricant should level up to the bottom part of the horizontal shaft (5,5 kg).
  • Page 19 NOTES...

  • Page 20: Parts List

    PARTS LIST When ordering parts, please advise the name and number of the part and the year of production of the mower.
  • Page 33 NOTES...
