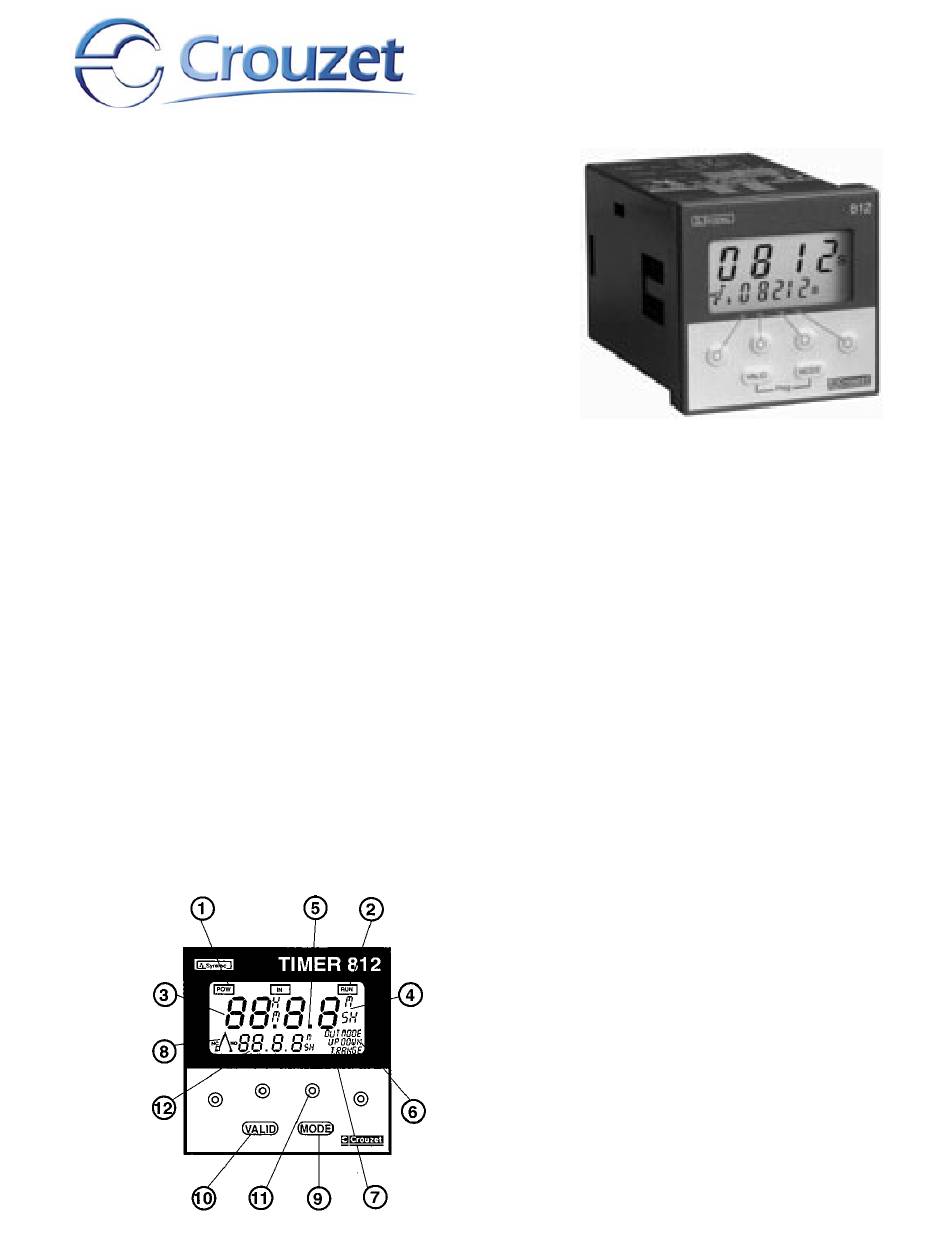

TIMER 812
GENERAL
FUNCTION: A, Delay on Make
TIME RANGES:
Simultaneous and constant display of the current value and pre-selection
-
value (internal battery, minimum life span 10 years at 20°C)
Up count (Up) or down count (Down) display
-
8 A, 250 VAC relay output (10 A UL)
-
Power supply: 24 VAC/DC, 110 VAC, or 220 VAC (tolerance + 10 % - 15 %)
-
Front panel protection rating IP 64
-
READOUT LEGENDS
99.99 s
9999 s
99.99 min
9999 min
9999 hrs
Note: The 99.99 s time range is not available
in the Repeat Cycle Mode
1: Power On Indicator
2: Timing Indicator
3: Timing Display
4: Timing Range Unit
5: Decimal Point
6: Up or Down Timing
7: Timing Range
8: Relay Output Status
9: Program Mode
10: Validation
11: Preset Keyboard
12: Preset Value Display
1/3
999.9 s
99 min 59 s
999.9 min
99 h 59 min
999.9 hrs
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Crouzet TIMER 812
- Page 1 TIMER 812 GENERAL FUNCTION: A, Delay on Make TIME RANGES: 99.99 s 999.9 s 9999 s 99 min 59 s 99.99 min 999.9 min 9999 min 99 h 59 min 9999 hrs 999.9 hrs Note: The 99.99 s time range is not available...
- Page 2 MOUNTING REQUIREMENTS RUN MODE = Press one of Configuration mode the 4 keys T RANGE Time Display Sec., Min., Hr., Hr : Min, Hr : Min : Sec UP DOWN U = Up Count d = Down Count Incrementation of value T by pressing one of the 4 keys corresponding to each digit.
- Page 3 MODES OF OPERATION Function A: Delay on Make Input Power S1 Relay DIMENSIONS AND ASSEMBLY Panel cut-out WIRING:...
