SAFIRE 3200B AND 3800A FUEL OIL HEATER
INSTALLATION, OPERATION AND MAINTENANCE
You have selected the new generation
Although our goal is to take into account all problems arising from normal installation during designing the
product, it is important that persons using this product familiarise themselves with these instructions.
Correct installation and use ensure that the heater works flawlessly for many years to come.
1.
INSTALLATION
1.2
PLACEMENT
Place the heater so that warm air circulates in the best possible way in the heated space.
Flue gases can be led to a chimney or directly out through the wall.
The heater should preferably be connected directly to the battery with a dedicated power
cable.
The tank and pump should be placed under the heater. It is advisable to place them outside
the heated space.
There should be 70-100 mm clearance behind and on the sides of the heater in order to help
keep its environment clean and free from foreign objects.
There must be at least one metre of clearance above the heater.
DUCT INSTALLATION
1.3
1.
Drill a suitably sized hole for the flue gas pipe to the chimney. Note that the flue gas pipe is not
laterally in the centre of the heater.
2. Seal the flue gas pipe into place with heat-resistant material (e.g. mineral wool or mortar). The flue
gas pipe must lead to the top of the chimney, and it should preferably be insulated with vermiculite.
This will avoid the condensation of the flue gas in the cold chimney, as well as failures and weathering
of the chimney resulting from the condensation.
3. Install a piece of thermal insulation cut to a suitable length.
4. Mount the heater and tighten the flue gas pipe and a potential air intake pipe with their fasteners.
5. The combustion air can be led to the heater e.g. from under the floor. In this case, the air intake must
be protected so that it cannot be clogged (snow, leaves, mice, birds, mosquitoes etc.). The intake pipe
must be insulated indoors in order to prevent condensation on the surface of the pipe.
December 2014
SF-LÄMMITIN OY Tilhenkatu 1 20610 Turku Finland Tel./Fax 02-2443282
SAFIRE
oil heater as your heating solution.

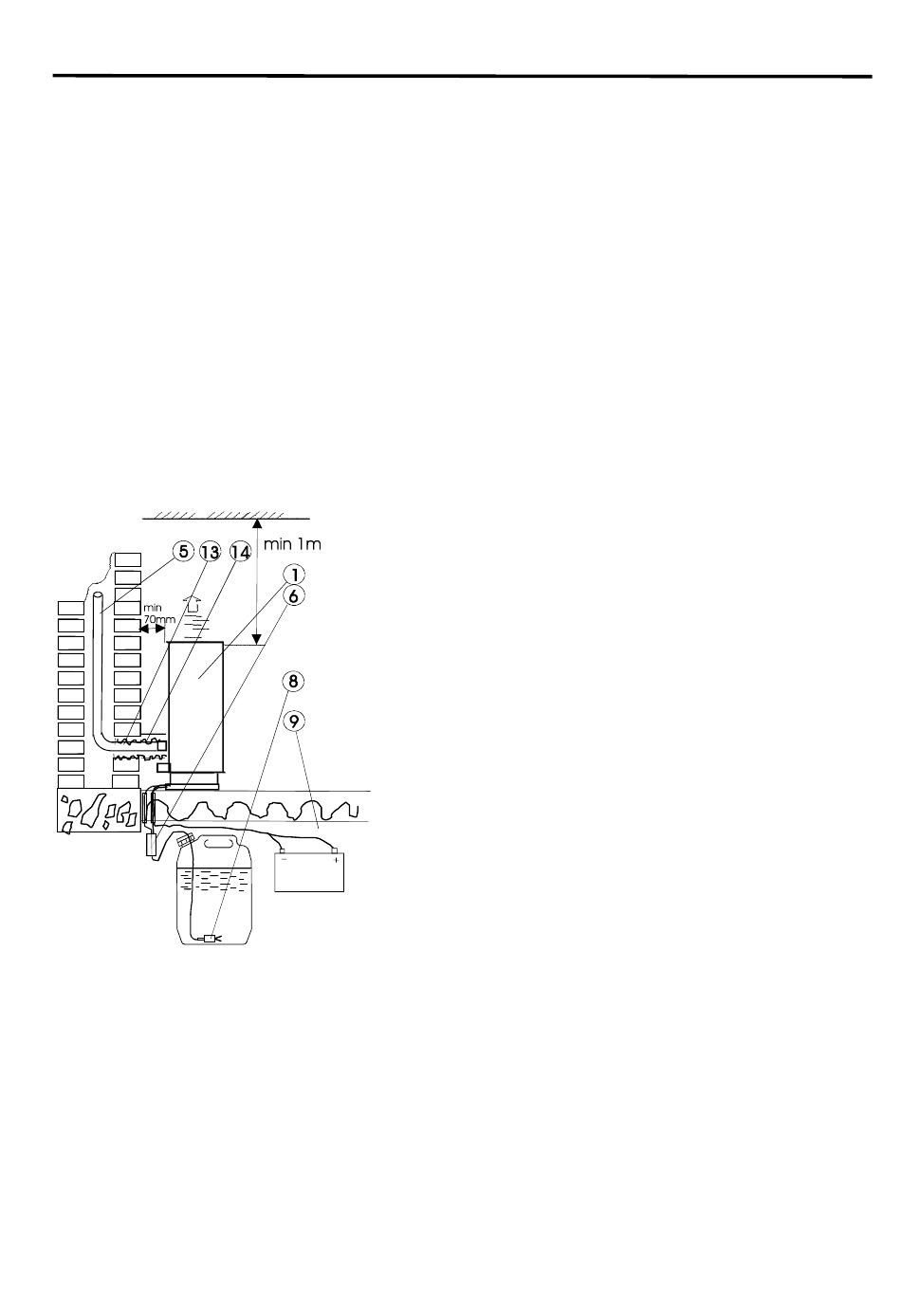

1. HEATER
5. FLUE GAS PIPE
6. PUMP
8. FILTER
When using a chimney, the combustion air can be
taken from the outside or inside, because there is no
danger of flue gas returning to the inside air due to the
wind pressure, even in case of a power outage.
As the combustion air is taken from the heated space,
the heater functions as a ventilation unit as well, which
reduces the amount of moisture.
It is preferable that the tank is placed outside the
heated space. However, the tank and the pump must
be placed under the bottom of the heater. The lifting
height must be under 2 metres.
If the fuel line is mounted inside the structures or
outside the building, it must be protected with e.g.
electric installation pipe or metal pipe.
A longer fuel line can be used, but the maximum length
between the pump and the fuel tank is 6 metres.
9. BATTERY
13. SEALING
14. THERMAL INSULATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3200B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Safire 3200B

  • Page 1 SAFIRE 3200B AND 3800A FUEL OIL HEATER INSTALLATION, OPERATION AND MAINTENANCE SAFIRE You have selected the new generation oil heater as your heating solution. Although our goal is to take into account all problems arising from normal installation during designing the product, it is important that persons using this product familiarise themselves with these instructions.
  • Page 2: Wall Sleeve Installation

    SAFIRE 3200B AND 3800A FUEL OIL HEATER INSTALLATION, OPERATION AND MAINTENANCE WALL SLEEVE INSTALLATION 1 HEATER 2 THERMOSTAT TEMPERATURE SENSOR 3 FLUE GAS PIPE 6 PUMP 7 TANK 8 FILTER 9 BATTERY 12 FLUE GAS WALL SLEEVE 14 THERMAL INSULATION WALL SLEEVE: When using wall sleeves, the combustion air must be led through a wall sleeve from the outside as well.
  • Page 3: Tank Connection

    SAFIRE 3200B AND 3800A FUEL OIL HEATER INSTALLATION, OPERATION AND MAINTENANCE 1.5.1 30L TANK (475x315x295mm) Can be used either upright or horizontally. The heater comes with tank connection parts (filter, vacuum hose, air hose and threaded ring). The tank must be placed under the heater, e.g. in the basement of the house.
  • Page 4 USAGE COMMISSIONING Make sure before commissioning that: - the tank is properly installed - the heater is attached so that all safety distances are taken into account and there is no risk of fire - all connections are attached - there are no foreign objects or materials, which could cause a fire hazard or unpleasant smells nearby or inside the heater or the funnel.
  • Page 5: Power Selection

    2.1.2.2 INDICATORS 2.1.3.1 STARTING WITH A REMOTE The green indicator light START-UP DEVICE the base of the heater blinks during start-up. If the indicator is not lit during start-up, the heater is most When enabling the start-up device, likely not powered. make sure that the heater is ready for use and that air circulation is Indicator lights on the heater's...
  • Page 6 The most common error is the lack of a flame, which 3 ERRORS, FAILURES leads to error code 3 being shown on the display. (Identification of indicators: see wiring diagram) Please note! If you have turned off the heater after the malfunction was shown, you can bring up the error 3.1 NORMAL OPERATION: code again by turning the switch to the AUTO position.
  • Page 7: Maintenance

    4 INSPECTIONS, MAINTENANCE AND SERVICE 4.1 INSPECTIONS If there is reason to believe that the heater does not get Check from time to time, especially if the flame in the enough fuel (power reduced, change in combustion), burner has changed, that: check the amount of fuel going to the heater.
  • Page 8: Burner Maintenance

    4.21 BURNER MAINTENANCE 1. Disconnect the power so that the circuit board is powerless. 2. Remove the control panel of the heater. Disconnect the wire connectors of the circuit card. 3. Disconnect the fuel inlet line (2). 4. Open the burner compartment cover (3 screws, force the top of the cover open from the protrusions) mounting plate 5.
  • Page 9 INSPECTING AND CLEANING THE PUMP The functioning of the pump can be inspected by letting air bubbles inside the hose. The fuel progresses 18-20 mm per pump stroke. Slow movement is a sign of a blockage and air bubbles show that there is an air leak in the suction side or pump. Small sized bubbles do not pose a problem. Back and forth movement is caused by a leaking non-return valve.
  • Page 10: Electrical Connections

    INSPECTING AND CLEANING THE PUMP 4.4 ELECTRICAL CONNECTIONS (3800A)
