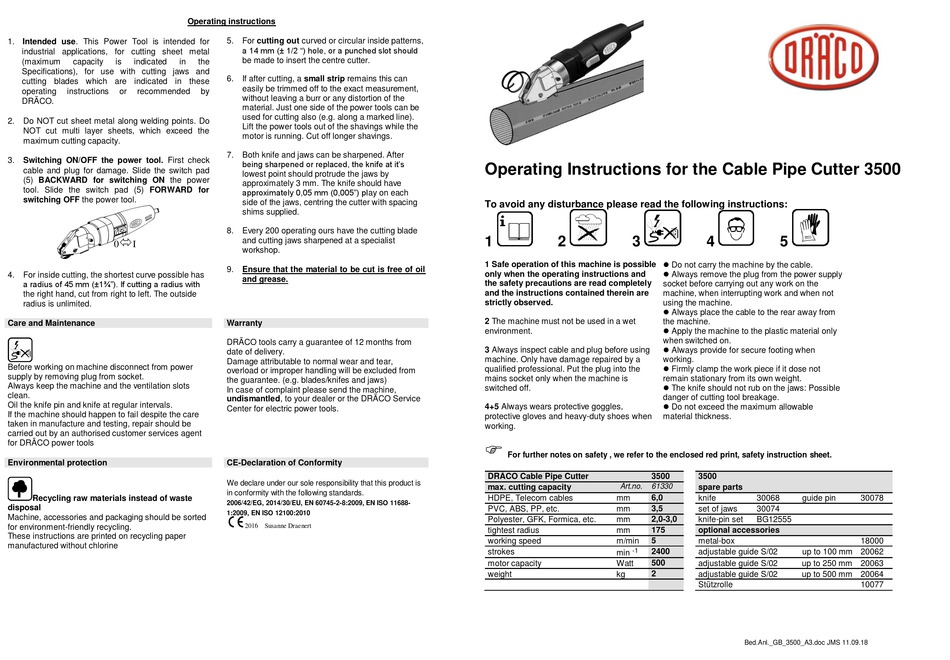

Draco 3500 Operating Instructions

1. Intended use. This Power Tool is intended for
industrial applications, for cutting sheet metal
(maximum capacity is indicated in
Specifications), for use with cutting jaws and
cutting blades which are indicated in these
operating instructions or recommended
DRÄCO.
2. Do NOT cut sheet metal along welding points. Do
NOT cut multi layer sheets, which exceed the
maximum cutting capacity.
3. Switching ON/OFF the power tool. First check
cable and plug for damage. Slide the switch pad
(5) BACKWARD for switching ON the power
tool. Slide the switch pad (5) FORWARD for
switching OFF the power tool.

0 I
4. For inside cutting, the shortest curve possible has
a radius of 45 mm (±1¾"). If cutting a radius with
the right hand, cut from right to left. The outside
radius is unlimited.

Care and Maintenance

Before working on machine disconnect from power
supply by removing plug from socket.
Always keep the machine and the ventilation slots
clean.
Oil the knife pin and knife at regular intervals.
If the machine should happen to fail despite the care
taken in manufacture and testing, repair should be
carried out by an authorised customer services agent
for DRÄCO power tools

Environmental protection

Recycling raw materials instead of waste
disposal
Machine, accessories and packaging should be sorted
for environment-friendly recycling.
These instructions are printed on recycling paper
manufactured without chlorine
Operating instructions
5. For cutting out curved or circular inside patterns,
a 14 mm (± 1/2 ") hole, or a punched slot should
be made to insert the centre cutter.
the
6. If after cutting, a small strip remains this can
easily be trimmed off to the exact measurement,
by
without leaving a burr or any distortion of the
material. Just one side of the power tools can be
used for cutting also (e.g. along a marked line).
Lift the power tools out of the shavings while the
motor is running. Cut off longer shavings.
7. Both knife and jaws can be sharpened. After
being sharpened or replaced, the knife at it's
lowest point should protrude the jaws by
approximately 3 mm. The knife should have
approximately 0,05 mm (0,005") play on each
side of the jaws, centring the cutter with spacing
shims supplied.
8. Every 200 operating ours have the cutting blade
and cutting jaws sharpened at a specialist
workshop.
9. Ensure that the material to be cut is free of oil
and grease.

Warranty

DRÄCO tools carry a guarantee of 12 months from
date of delivery.
Damage attributable to normal wear and tear,
overload or improper handling will be excluded from
the guarantee. (e.g. blades/knifes and jaws)
In case of complaint please send the machine,
undismantled, to your dealer or the DRÄCO Service
Center for electric power tools.

CE-Declaration of Conformity

We declare under our sole responsibility that this product is
in conformity with the following standards.
2006/42/EG, 2014/30/EU, EN 60745-2-8:2009, EN ISO 11688-
1:2009, EN ISO 12100:2010
2016 Susanne Draenert
Operating Instructions for the Cable Pipe Cutter 3500
To avoid any disturbance please read the following instructions:
1 2 3
1 Safe operation of this machine is possible
only when the operating instructions and
the safety precautions are read completely
and the instructions contained therein are
strictly observed.
2 The machine must not be used in a wet
environment.
3 Always inspect cable and plug before using
machine. Only have damage repaired by a
qualified professional. Put the plug into the
mains socket only when the machine is
switched off.
4+5 Always wears protective goggles,
protective gloves and heavy-duty shoes when
working.

For further notes on safety , we refer to the enclosed red print, safety instruction sheet.
DRÄCO Cable Pipe Cutter 3500
Art.no. 61330
max. cutting capacity
6,0
HDPE, Telecom cables mm
3,5
PVC, ABS, PP, etc. mm
Polyester, GFK, Formica, etc. mm 2,0-3,0
tightest radius mm 175
working speed m/min 5
-1
strokes 2400
min
500
motor capacity Watt
weight kg 2
4 5
 Do not carry the machine by the cable.
 Always remove the plug from the power supply
socket before carrying out any work on the
machine, when interrupting work and when not
using the machine.
 Always place the cable to the rear away from
the machine.
 Apply the machine to the plastic material only
when switched on.
 Always provide for secure footing when
working.
 Firmly clamp the work piece if it dose not
remain stationary from its own weight.
 The knife should not rub on the jaws: Possible
danger of cutting tool breakage.
 Do not exceed the maximum allowable
material thickness.
3500
spare parts
knife 30068 guide pin
set of jaws 30074
knife-pin set BG12555
optional accessories
metal-box
adjustable guide S/02 up to 100 mm 20062
adjustable guide S/02 up to 250 mm 20063
adjustable guide S/02 up to 500 mm 20064
Stützrolle
Bed.Anl._GB_3500_A3.doc JMS 11.09.18
30078
18000
10077
