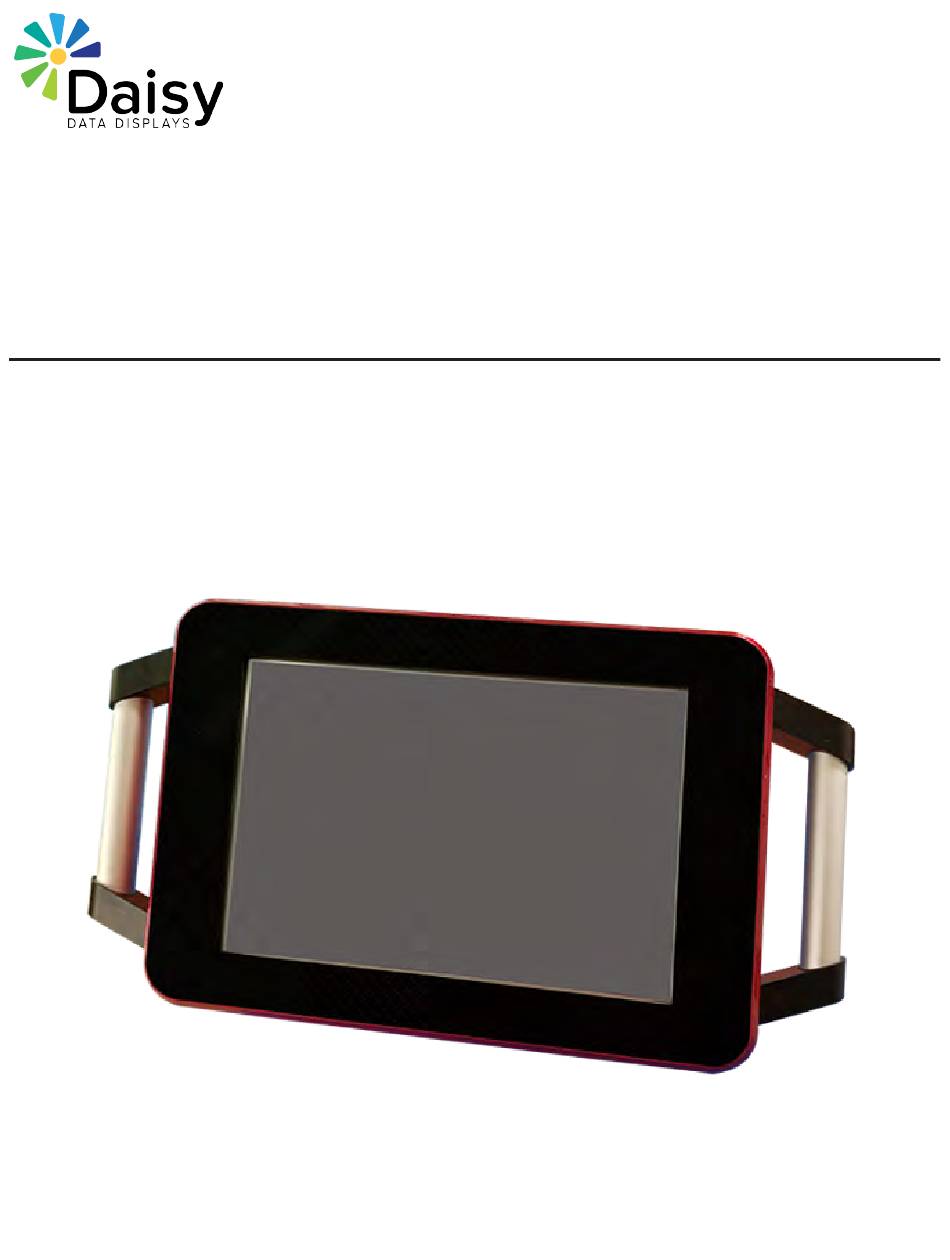

Model 4123 Series Portable PC User Manual
Includes Models:
4123: Carbon Fiber, Intel Core i7, 128GB Slim Sata, 16GB RAM, Battery B/U
4123AC: Cast Aluminum, Intel Core i7, 256GB 2.5" SSD, 16GB RAM, WiFi
4123AD: Cast Aluminum, Intel Atom, 128GB Slim Sata, 8GB RAM, Wi-Fi
4123AE: Cast Aluminum, Intel Core i7, 256GB 2.5" SSD, 16GB RAM
4123AF: Machined Aluminum, Intel Core i7, 128GB Slim Sata, 16GB RAM, Wi-Fi
Daisy Data Displays, Inc.
2850 Lewisberry Road
York Haven, PA 17370
717.932.9999
www.daisydata.com
DECEMBER 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4123 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daisy 4123

  • Page 1 DECEMBER 2018 Includes Models: 4123: Carbon Fiber, Intel Core i7, 128GB Slim Sata, 16GB RAM, Battery B/U 4123AC: Cast Aluminum, Intel Core i7, 256GB 2.5” SSD, 16GB RAM, WiFi 4123AD: Cast Aluminum, Intel Atom, 128GB Slim Sata, 8GB RAM, Wi-Fi 4123AE: Cast Aluminum, Intel Core i7, 256GB 2.5”...
  • Page 2 Daisy Data Displays, Inc. reserves the right to revise this publication and to make changes to its content, at any time, without obligation to notify any person or entity of such revisions or changes.
  • Page 3 4123 Series User Manual LIMITED WARRANTY AND LIABILITY STATEMENT To the original purchaser, Daisy Data Displays, Inc., hereinafter referred to collectively as SELLER, warrants each of its manufactured products, and all components therein contained to be free from defects in materials and/or workmanship for a period of 12 months from the date of purchase.

  • Page 4: Table Of Contents

    7.1 Base Model 4123 Series Configurations ..............5 7.2 Model 4123(xx) Critical Components ...................6 7.3 Glandplate Components ......................8 7.4 Model 4123(xx) Series Field Wiring Diagrams ..............9 7.4.1 Model 4123 Field Wiring Diagram ..................9 7.4.2 Model 4123AC Field Wiring Diagram ..................10 7.4.3 Model 4123AD Field Wiring Diagram ..................11 7.4.4 Model 4123AE Field Wiring Diagram ..................

  • Page 5: Introduction

    4123 Series User Manual Introduction 1.0 Introduction This manual will detail the the Model 4123 Series Portable PC manufactured by Daisy Data Display, Inc. Product Description The Model 4123 Series Portable PC is a mobile HMI PC certified for a Zone 2 (Information Technology) enviornment.

  • Page 6: Customer Service

    Serial Numbers. Figure 1 — Daisy Data Product ID Tag Daisy Data Displays Inc. prides itself on offering best in class support for your products. Our technical support team can help you with installation, configuration, troubleshooting, and other support issues for all Daisy’s products.

  • Page 7: Unit Certifications

    Models 4123AC, 4123AD, 4123AE, 4123AF Model 4123 Special Conditon Due to the front enclosure on the Model 4123 Portable PC having a carbon fiber faceplate, a Daisy Data Option 821 (Sun Visor) needs to be installed if exposure to ultraviolet light is anticipated. This Sun Visor (Option 821) Special Condition is specifically for the Model 4123 to meet the Resistance to Light, EN-IEC 60079-0 (clause 7.3) requirement.

  • Page 8: Certificate Of Compliance

    Rating: Ex nA IIC T4 Gc 0°C<Ta<+40°C X Models: 4123AC, 4123AD, 4123AE, 4123AF Rating: Ex nA IIC T4 Gc -20°C<Ta<+55°C The Daisy Data Displays Series 4123(xx) Portable PC fully complies with the following directives: • EMC Directive 2014/30/EU • Low Voltage Directive 2014/35/EU •...

  • Page 9: Specifications

    24 bit 7.0 Models/Components The Model 4123 Series Portable PC is based upon five (5) unique base models incorporating a standard set of components/options for each model. In addition to the standard components/options, each model has a specific glandplate designed for it.

  • Page 10: Model 4123(Xx) Critical Components

    Models/Components 4123 Series User Manual Model 4123(xx) Critical Components Each of the five (5) Model 4123 Series Portable PCs are constructed around a set of standard critical components. These components are shown in Table 4. Table 4 — 4123(xx) UL Listed, ATEX Zone 2 Certified Critical Components MODEL PART NO. DESCRIPTION 110VAC Power Supply...
  • Page 11 P050-200007 Intel i7 2nd gen module P062-120001 Storage (128GB Slim SATA) A314-318000 8GB DDR3 Memory (used with 2nd gen i7 module) E907-000001 Antenna P050-000286 Wireless Card * Shaded parts represent critical components common in ALL Model 4123 Series units D004-000017...

  • Page 12: Glandplate Components

    4123 Series User Manual Glandplate Components Each 4123 Series Portable PC model is designed with specific user connections. These connections are pentrations through the enclosure that are specifically designed to seal the the internal components from any possible outside hazardous enviroment that could exist. Each model has a specific glandplate (1 of 4) designed for it as shown in Table 3.

  • Page 13: Model 4123(Xx) Series Field Wiring Diagrams

    4123 Series User Manual Models/Components Model 4123(xx) Series Field Wiring Diagrams The Model 4123 Series gland plate provides all the recepticles for external connections. Each recepticle is a standard component provided to meet the hazardous location-rated connection the unit was designed for. The customer is responsible obtaining and making all external connections. In addition, care must be taken when making the external connections to the Model 4123xx.

  • Page 14: Model 4123Ac Field Wiring Diagram

    Models/Components 4123 Series User Manual Model 4123AC Field Wiring Diagram 7.4.2 Figure 9 — Model 4123AC Field Wiring Diagram D004-000017...

  • Page 15: Model 4123Ad Field Wiring Diagram

    4123 Series User Manual Models/Components Model 4123AD Field Wiring Diagram 7.4.3 Figure 10 — Model 4123AD Field Wiring Diagram D004-000017...

  • Page 16: Model 4123Ae Field Wiring Diagram

    Models/Components 4123 Series User Manual Model 4123AE Field Wiring Diagram 7.4.4 Figure 11 — Model 4123AE Field Wiring Diagram D004-000017...

  • Page 17: Model 4123Af Field Wiring Diagram

    4123 Series User Manual Models/Components Model 4123AF Field Wiring Diagram 7.4.5 Figure 12 — Model 4123AF Field Wiring Diagram D004-000017...

  • Page 18: Model 4123(Xx) Series Block Diagrams

    4123 Series User Manual Model 4123(xx) Series Block Diagrams The Model 4123 Series Portable PC comes in five standardized configuations as described in “7.1 Base Model 4123 Series Configurations” on page 5. The following block diagrams detail each of the base models and the components contained in each.

  • Page 19: Model 4123 Block Diagram

    4123 Series User Manual Models/Components Model 4123 Block Diagram 7.5.1 Figure 14 — Model 4123 Block Diagram D004-000017...

  • Page 20: Model 4123Ac Block Diagram

    Models/Components 4123 Series User Manual Model 4123AC Block Diagram 7.5.2 Figure 15 — Model 4123AC Block Diagram D004-000017...

  • Page 21: Model 4123Ad Block Diagram

    4123 Series User Manual Models/Components Model 4123AD Block Diagram 7.5.3 Figure 16 — Model 4123AD Block Diagram D004-000017...

  • Page 22: Model 4123Ae Block Diagram

    Models/Components 4123 Series User Manual Model 4123AE Block Diagram 7.5.4 Figure 17 — Model 4123AE Block Diagram D004-000017...

  • Page 23: Model 4123Af Block Diagram

    4123 Series User Manual Models/Components Model 4123AF Block Diagram 7.5.5 Figure 18 — Model 4123AF Block Diagram D004-000017...

  • Page 24: Model 4123(Xx) Series Mechanical Drawings

    Models/Components 4123 Series User Manual Model 4123(xx) Series Mechanical Drawings Model 4123 Mechanical Drawings 7.6.1 Figure 19 — Model 4123 Mechanical Drawing (1 of 2) D004-000017...
  • Page 25 4123 Series User Manual Models/Components Figure 20 — Model 4123 Mechanical Drawing (2 of 2) D004-000017...

  • Page 26: Model 4123Ac Mechanical Drawings

    Models/Components 4123 Series User Manual Model 4123AC Mechanical Drawings 7.6.2 Figure 21 — Model 4123AC Mechanical Drawing (1 of 2) D004-000017...
  • Page 27 4123 Series User Manual Models/Components Figure 22 — Model 4123AC Mechanical Drawing (2 of 2) D004-000017...

  • Page 28: Model 4123Ad Mechanical Drawings

    Models/Components 4123 Series User Manual Model 4123AD Mechanical Drawings 7.6.3 Figure 23 — Model 4123AD Mechanical Drawing (1 of 2) D004-000017...
  • Page 29 4123 Series User Manual Models/Components Figure 24 — Model 4123AD Mechanical Drawings (2 of 2) D004-000017...

  • Page 30: Model 4123Ae Mechanical Drawings

    Models/Components 4123 Series User Manual Model 4123AE Mechanical Drawings 7.6.4 Figure 25 — Model 4123AE Mechanical Drawing (1 of 2) D004-000017...
  • Page 31 4123 Series User Manual Models/Components Figure 26 — Model 4123AE Mechanical Drawing (2 of 2) D004-000017...

  • Page 32: Model 4123Af Mechanical Drawings

    Models/Components 4123 Series User Manual Model 4123AF Mechanical Drawings 7.6.5 Figure 27 — Model 4123AF Mechanical Drawing (1 of 2) D004-000017...
  • Page 33 4123 Series User Manual Models/Components Figure 28 — Model 4123AF Mechanical Drawing (2 of 2) D004-000017...

  • Page 34: Supply Power Connection (100-240Vac)

    Maintenance and Warnings before installing or making any connections to the unit. The Model 4123 Series units accomodates two different ways the customer can supply 100-240VAC power to the unit. Depending on the connection configuration (Glandplate) required by the customer, control power can be connected to the units by either: •...

  • Page 35: Connecting Kpt/Kpse Bayonet-Style Quick Connect

    Figure 30 — 100-240AC Power Connected Sealcon Cord Grip/Internal Power Connection Two of the five Model 4123 Series configurations have the 100-240VAC power source connected inside the unit enclosure. The power source cable passes through the enclosure via an Sealcon Cord Grip installed on the glandplate and attaches to a power terminal block.

  • Page 36: Installing Internally Connected Power Source Cable

    Supply Power Connection (100-240VAC) 4123 Series User Manual Installing Internally Connected Power Source Cable 8.2.1 Models that require an internal power source connection need to have the cable passed through the glandplate and attached to the internal power terminal connection. Where the cable passes through the glandplate, a Sealcon Cord Grip is provided to securely hold the cable in place and provides a tight seal where the cable penetrates the glandplate.
  • Page 37 Supply Power Connection (100-240VAC) 4123 Series User Manual Figure 34 — Locate and Unplug Power Terminal Connector NOTE: Before connecting your 100-240VAC power source to the connector plug removed in step 3, you must thread the power source cable through the cord grip, glandplate, and the cord grip seal nut. Step 4) Thread power source cable through the Sealcon Cord Grip assembly, glandplate, and Cord Grip Seal Nut. Figure 35 — Installing Power Source Cable through the glandplate Step 5) Insert Sealcon Cord Grip back into the glandplate (See step 2 removal) and secure in place with the cord grip seal nut.
  • Page 38 Supply Power Connection (100-240VAC) 4123 Series User Manual Step 6) Connect power source cable to the power source connector plug removed in step 3. Figure 36 — Connect Power Source Cable to Power Source Connector Plug Step 7) Plug power source connector plug (with power source cable attached) into the power source terminal in the enclosure (See step 3 removal and related figures).

  • Page 39: Keypad Layout

    4123 Series User Manual Keypad Layout 9.0 Keypad Layout Figure 37 — Keyboard Membrane Layout D004-000017...

  • Page 40: Installation And Warnings

    (AHJ.) 11.0 Battery Storage and Operation (Model 4123) The standard battery incorporated into the ATEX certified 4123 is designed as a backup power source. In the instance of a loss of primary power, the computer will run off of its Lithium-Ion battery. The battery pack is a 14.4VDC, 2.9 Ah pack in a compact form factor.

  • Page 41: Maintenance

    4123 Series User Manual Repair, Maintenance and Warnings 12.2 Maintenance Maintenance should be performed by authorized personnel. The only maintenance is periodic inspections for damage and proper operation. Any damaged parts or damaged cabling entering into the unit, need to be replaced promptly to ensure that the safety methods used, and their integrity are still valid.

  • Page 42: 4123(Xx) General Trouble Shooting

    Verify the display No video output Connect an external PC is powered on. monitor directly to the resolution is set for motherboard and verify 1024x768. output. Contact Daisy Customer Support for further assistance. Phone: (717) 932-9999 x222 Email: support@daisydata.com D004-000017...

  • Page 43: Revisions

    4123 Series User Manual 14.0 Revisions Revision Description Date Author Initial Release 7/20/2018 July 2018 D004-000017...
