Summary of Contents for Pasqualicchio Cantinola Touch Series

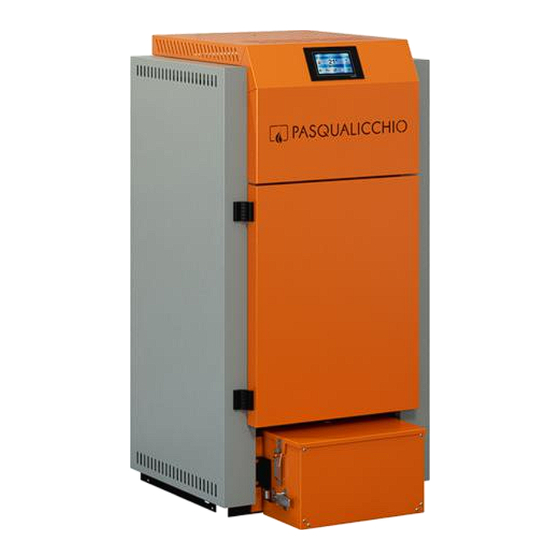

- Page 1 Cantinola Touch boiler Manual use and maintenance Manual use and maintenance _2016 Manuale uso e manutenzione Cantinola Touch 010015 del 28/04/2016...
- Page 2 Table of contents Manual use and maintenance _2016 Manuale uso e manutenzione Cantinola Touch 010015 del 28/04/2016...
- Page 3 We, Pasqualicchio srl, located in Via Vannara – Paolisi (BN), D E C L E A R E That the all the boilers manufactured by Pasqualicchio are in compliance with the following European standards: 2014/30 UE (ex 2004/108/ CE), (EMCD) ...
- Page 4 The Pasqualicchio boiler is a boiler for use in domestic environment, it is not suitable for use in medial environments: it CANNOT be installed in bedrooms but only in suitable premises (boiler room) Product warranty For warranty terms, refer to the "warranty activation"...
- Page 5 operate in perfect physical conditions and verify that the personal accident-prevention devices are intact and perfectly functional; must wear accident-prevention gloves; must wear accident-prevention shoes; must use tools fitted with electrical insulation; must make sure that the assembly and disassembly area is free from obstacles. Warnings for the maintenance technician Follow the instructions indicated in this manual.
-
Page 6: Handling And Transport
CHARACTERISTICS II.1 FUELS USED II.1.1 Pellet Pasqualicchio srl boilers are a good alternative to traditional gas (methane, lpg) or liquid (gas oil) fueled boilers, since they are cheap to operate, thanks to the low market price of the fuels used. -
Page 7: Production Features
The combustion chamber is surrounded by water within a cavity; during the combustion process, the heat is divided into two types: a first one, which is provided by conduction and radiation from flames to the water; a second one, which is provided by the hot exhaust gases by convection on their way towards the chimney. - Page 8 Circulator Membrane expansion vessel Electronic unit control, complete of panel and 3 temperature probes. Smoke temperature Water boiler temperature Safety valve (3 bar) Smoke Draught Pressure sensor Manometer for checking the loading pressure (not more than 1,5 bar) Water pressure sensor Smoke extractor Automatic cleaning system of smoke pipes...
- Page 9 Expansion vessel, Expansion vessel, Circulater, Brush, Semi- Circulater, Brush, Semi- Standard automatic shel and tube automatic shel and tube cleaning system. cleaning system. Electric Power [W] 480 W 480 W Ignition 110 W 115 W ...
- Page 10 Scheme and measurements Cantinola Cantinola Dimensions [mm] Touch 24 Touch 29 1305 1556 Smoke output diameter Any reproduction, even partially, is not permitted without authorization. The manufacturer reserves the right to make changes or improvements to the products without this can be disputed. Manual use and maintenance _2016 Manuale uso e manutenzione Cantinola Touch 010015 del 28/04/2016...
- Page 11 THE ELECTRONIC CONTROL UNIT The electronic temperature controller allows to manage both the fuel and combustion air supply through a “subsequence stages” logic of operation, showing the operating parameters on the display, such as the boiler temperature and the combustion power, as well as the time and displaying with special led the smoke extractor, pump and spark plug functions.
- Page 12 Navigation buttons: Back to Home page Upper level Scrolling / Increasing Value Scrolling / Decreasing Value Exit and save data Menu exit – not saving data Moving to the left Moving to the right The display Below the picture of the Touch Screen keyboard with the legend of the key functions: Main screen: Manual use and maintenance _2016 Manuale uso e manutenzione Cantinola Touch 010015 del 28/04/2016...
- Page 13 Date and time; Chrono Mode (D–Daily, W–Weekly, WE–Week end); Power, Selected recipe of combustion (Pellet 1); Function phase of the system; Error that may occur; Boiler Thermostat value Boiler temperature detected by the boiler probe System Functions : Checkup; Ignition; Stabilization;...
- Page 14 Led On: Wood Function Led On: Clima Function Operating User Menu To access to the SETTINGS menu, press the key DESCRIPTION MENU It allows to change the power combustion. Combustion Pellet Power management It’s Automatic in default. Setting the recipe of combustion when deciding Pellet recipe to use a different combustible from the pellet according to the manual recommendations...
- Page 15 Pellet Combustion Management Menu The following menu allows you to change the combustion recipe, the power combustion and the boiler operate manually. It is possible to set two different recipes, one for the pellets and one for the olive pits. Down below the Combustion Management menu screen Note: T h e b o i l e r i s s e t u p f o r u s i n g p e l l e t b y d e f a u l t .
- Page 16 Heating management menu To change the heating parameters, as follows: Boiler Thermostat How to change the values of the boiler Thermostat Instructions DISPLAY Enter the menu contents by touching the key “Settings” Select “Heating management “on the display Cantinola Touch 2016 operating and maintenance manual...
- Page 17 Enter the submenu “Boiler thermostat” Set the parameter with the temperature value using the keys + and - Confermare impostazione parametro premendo sul tasto di conferma. Exit menu BOILER THERMOSTAT RANGE MIN (°C) MAX (°C) The value is normally set at the factory to 70° c. Cantinola Touch 2016 operating and maintenance manual...
- Page 18 The temperature set up for the boiler thermostat will turn the boiler in ' modulation 'mode. The boiler gets switched off but there is always a minimum flow of fuel make the temperature be stable, or it could let the temperature raise up of some degrees the temperature. In specific operating conditions, such as the use in particular period of the year or for domestic hot water production (through boiler), these may cause an overheating.
- Page 19 Enter the sub menu “Room thermostat” and press it Choose your temperature using the + and - Confirm Exit menu Cantinola Touch 2016 operating and maintenance manual...
- Page 20 Heating power Menu for changing the room fan operation. INSTRUCTIONS DISPLAY Enter the menu contents by touching the key “Settings” Press on “Heating Management” key Choose “ Heating Power” to access to the flow-fan regulation Choose the power Cantinola Touch 2016 operating and maintenance manual...
- Page 21 Confirm Exit menu Cantinola Touch 2016 operating and maintenance manual...
-
Page 22: Chrono Menu
CHRONO Menu In Chrono menu you can set the time for the automatic switch on and off of the boiler. It has 5 entries related to the Daily, Week and W,End types of setting. To Enable / Disable the CHRONO, press the “Enable CRONO”. If disable the Led is off , if enabled the Led is red . - Page 23 To save the time set and exit from the menu, press the key If you do not want to save the new setting, just press the key The three different settings (Daily, Week and W.End) are saved separately. If changing the modes in one of them, it won’t have any effect on the other’s.
- Page 24 Functions parameters The display allows you to see the main values (smokes temperature, power, etc.) detected by the boiler sensors. To enter this function, press the key "Information" when the page is shown on the display System Menu Down below how to access to the System Menu: Insert the secret passw (0000) and confirm with the key (√) to access to the menu Cantinola Touch 2016 operating and maintenance manual...
- Page 25 INSTALLATION GUIDE The boiler must be installed in compliance with all local regulations, including those referring to national and European rules. Carrying out installation according to the instructions of good technique and Standard UNI 10683 (Heat generators fed with wood or with other solid biomass fuels).
-
Page 26: General Features
DISTANCES TO STRICTLY FOLLOW IN THE ROOM OF INSTALLATION Objects which could cause fires must not be put in contact or near the boiler. The boiler is not designed for a build-in installation, so the following distances are only to be considered as safety distances from objects which could cause a fire and not as minimum sizes of a housing to recess the stove. - Page 27 boiler. Moreover, given high efficiency of boiler, the smoke gas temperatures will be very low. For this reason it is necessary to take appropriate countermeasures designed to avoid the creation of condensation in the chimney. It is also recommended to place an emissions control after installation of the boiler.
-
Page 28: Air Intake
- it is recommendable to have a circular internal section. Squared and rectangular sections must have rounded corners and their radii cannot be smaller than 20 mm and the maximum ratio of the sides is 1.5; - do not install the appliance on a shared flue If an existing brick flue is used, it must be ducted using an AISI 316 stainless steel smooth pipe. -
Page 29: Connection To The Heating System
The combustion air intake can also be realised in a room next to the installation room, but air must be free to flow through permanent openings, connected to the outside and having the same features as those above described. In this case, the room cannot be used as a garage, storage of combustion materials or for any other activity implying a fire risk. - Page 30 Hopper loading The Cantinola Touch has a large tank for pellet storage. Open up the top cover to fill the fuel in. To reload the boiler, open the chute (closed with knob), pour the fuel in the inlet, close the slide to load complete.
-
Page 31: Electrical Connection
the loading pressure of the boiler must not exceed 1.2 bar and can be detected on the pressure gauge behind the stove. In addition, the loading pressure of the system can be checked on the display by pressing for some seconds the key P6 To remove the top panel PIC.1 To open the valve... - Page 32 to protect the circuit of the supply socket, a general protection device must be installed. Its contact opining distance must be at least 3 mm; it must be a differential magneto-thermal circuit- breaker with differential intervention current of 0.03 A; Down below the electric unit control diagram: SY250 ENCODER...
-
Page 33: Operation And Functions
OPERATION AND FUNCTIONS The start of the boiler is very simple as described in the following short procedure: START After completing the installation and carrying out all the checks needed and verifying the correct installation, the power supply plug can be connected. The general connection switch on the rear panel can be activated (the display will light up and, after a few seconds, the time will be shown). -
Page 34: Switch Off
2) boiler water temperature, 3) room temperature (if an external thermostat is installed), do not exceed the default levels. If one or more of these circumstances happen, the boiler starts in the "MODULATION" phase. MODULATION OPERATING STATUS From the NORMAL phase, the system turns into the "MODULATION" status with the message "MODULATION"... -
Page 35: Room Thermostat Connection
The function is to be then restorers at the moment the power failure, in the following sequence: Switch Off---Check-up (initial cleaning) ---Switch on SAFETY When a malfunction is detected by one of the safety devices installed on the boiler, BLOCK - when: -There has been a security operation and the time of 120sec for the cleaning is expired. -
Page 36: Troubleshooting
TROUBLESHOOTING In order to facilitate the diagnostic phase, refer to the error messages list and their description, possible solution and probe detecting the error. ERRORS MESSAGES ERRORS ERROR DESCRIPTION PROBE SOLUTIONS SHOWN OPERATING 1) Check the condition of manual reset It refers to the Manual Reset Safety thermostat and re-activate Thermostat has intervened (it is... - Page 37 1) Water temperature is too high (over 85 °C), reduce the temperature set in the boiler. BOILER WATER Er04 2) Check that no air has The machine turns off because the TEMPERATURE formed inside the system water temperature in the boiler is too PROBE circuit.
- Page 38 MAINTENANCE GENERAL RULES The boiler is to be maintained in cold condition, in order to avoid both burns and thermal shocks. Before starting, disconnect the power supply. To ensure a correct use and function of the boiler and provide a cleaning periodically by a qualified technician preferably.
- Page 39 Ash collector drawer (Pic 4). Ash draw (Pic 5). Pull it out to clean (Pic 6). Note: When closing the drawers after the cleaning, be careful that the rotation of knobs is complete and that drawers are locked in their position. If, after cleaning, the drawers are not properly closed, the boiler would not work properly.
- Page 40 Operation of maintenance to be carried out by a qualified technician - Every 6 months • Inside/outside cleaning of the chimney • To clean accurately the brazier and its compartment • Inspection, cleaning and descaling of the ignition coil and its compartment •...
- Page 41 PRACTICAL TIPS GENERAL RULES After installation has been completed, a test ignition of the machine must be carried out for at least 45 minutes, in order to check the general sealing. The installer must provide for verbal instructions to the end user, before the use of the boiler.
-
Page 42: Demolition And Disposal
Make sure the brazier is well positioned in its seat. In Normal operation status, too Make sure the gasket under the brazier has not much fuel is loaded detached. (the brazier tends to be overfilled) Make sure there are no problems for the flue Check that the pellet is of a good quality. - Page 43 Cantinola Touch 2016 operating and maintenance manual...
