User's instrUctions

SCOLA™ FM SySteM

SCOLA CLASSMATE

Table of Contents

Need help?

Do you have a question about the SCOLA CLASSMATE and is the answer not in the manual?

Questions and answers

Summary of Contents for Widex SCOLA CLASSMATE

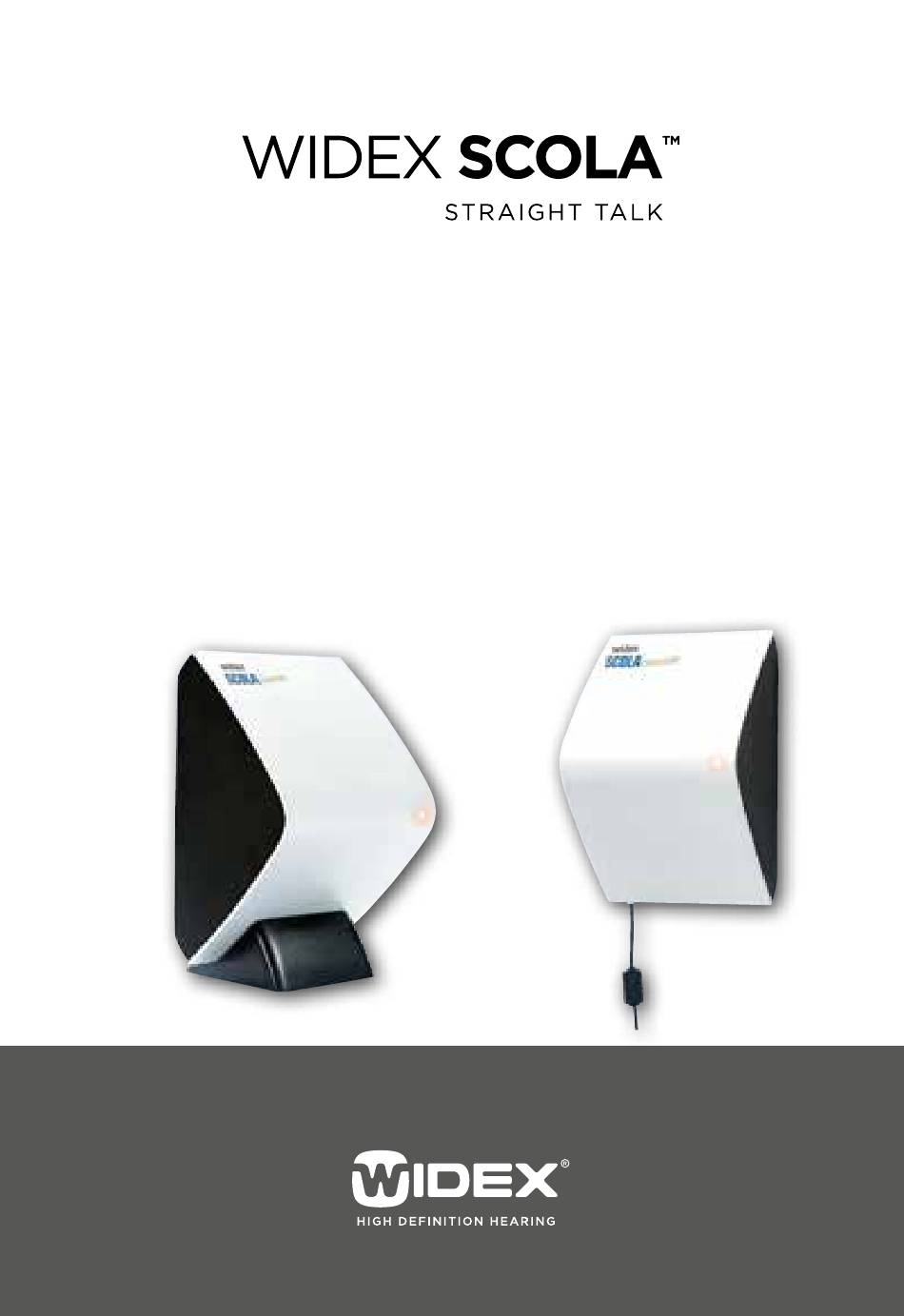

Page 1 User’s instrUctions SCOLA™ FM SySteM SCOLA CLASSMATE...
Page 2 The SCOLA CLASSMATE and accessories shown in these user’s instructions may differ from the ones you have. We furthermore reserve the right to make any changes considered necessary.
Page 3: Table Of Contents
Mechanical design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 How does SCOLA CLASSMATE work? . . . . . . . . . . . . . . 8 Response to synchronization signals .
Page 4 The SCOLA™ FM communication system from Widex provides hearing aid users with additional opportuni- ties in difficult listening situations. SCOLA CLASSMATE and the other parts of the SCOLA system are developed specifically for children and educational environments. These instructions therefore primarily address parents and teachers.
Page 5: Scola Classmate
CLASSMATE helps ensure that the same channel is used for both transmitting and receiving the FM signal in a given location. SCOLA CLASSMATE can be of particular advantage in schools where more than one student uses the SCOLA FM system.
Page 6: Scola Classmate And Accessories
CLAssMAte And ACCessories SCOLA CLASSMATE Stand Wall mount Screws and fasteners Power supply and extension cord User´s instructions...
Page 7: Description
desCription Mechanical design The maximum thickness of the unit is 7 inches. LED indicator behind the front plate. The LED indicates different conditions depending on sta- tus. The size of the rear plate is 5 x 8 inches. Holes for the wall mount. 1.
Page 8: How Does Scola Classmate Work
This is done with a SCOLA TEACH33, SCOLA TEACH44 or SCOLA PROGRAMMER. After one minute, the SCOLA CLASSMATE starts to send out the channel synchronization signal. This sig- nal will be repeated 3 times per second and will set all SCOLA FLEX or Amigo ear-level FM receivers within range to the programmed channel.
Page 9: Response To Synchronization Signals
FM switch or re- move the SCOLA FLEX from the hearing aid. When the user returns to the lesson, the SCOLA CLASSMATE will set the SCOLA FLEX to the channel used in that class- room and switch on the direct audio program, allowing the FM signal to become audible.
Page 10: Installation
We recommend that it is placed about 1.6 yards above the floor. The best way to ensure correct channel synchroniza- tion is to place the SCOLA CLASSMATE close to the en- trance door. If a wall socket is not within reach of the power supply...
Page 11: Wall Mounting
Wall mounting 1. Find a convenient location for mounting the SCOLA CLASSMATE. 2. Use the wall mount as a guide to mark the loca- tion of the two holes. 3. Drill the holes in the wall. 4. In case of brick, concrete or similar walls, drill the holes with a diameter that will allow the fasteners to fit into the holes.
Page 12 7. Plug the power supply into the wall socket and switch on the mains power. 8. Align the SCOLA CLASSMATE with the wall mount. 9. When the SCOLA CLASSMATE has been placed on the wall mount, slide the unit first to the left and then downwards to lock it in place.
Page 13: In The Stand On A Shelf
If the SCOLA CLASSMATE is not intended to be located permanently in one place, for example if it is needed for testing in different classrooms, it can be placed in its stand as shown.
Page 14: Led Legend
Led Legend The LEd indicates as follows: Constant red: 1. Normal function on external power 2. In programming mode (first minute after power is switched on) on external power and battery back- Flashing red: Normal function on battery back-up Triple blink: Channel synchronization done No light: Off or malfunction (see page 19, Troubleshooting)
Page 15: Operation
After one minute the LED will: • be constantly lit if the power supply is on • flash if the SCOLA CLASSMATE is running on batter- ies. To switch the SCOLA CLASSMATE off, just press the...
Page 16: Programming
During the first minute after the SCOLA CLASSMATE is switched on, it is possible to set / change the synchro- nization channel. Set the SCOLA TEACH33 or SCOLA TEACH44 to the required channel, or set the SCOLA PROGRAMMER to the appropriate channel in “Set channel” under the “FLEX programming”...
Page 17: Care, Maintenance And Safety Instructions
It is a good idea to clean the FM system on a daily basis. Furthermore, there are special precautions to be taken. 1. Clean the SCOLA CLASSMATE with a dry, soft cloth. 2. Do not disassemble the SCOLA CLASSMATE, other SCOLA units or the hearing aid, as this will void the guarantee.
Page 18 6. Please be sure to keep all SCOLA units, accessories and hearing aids out of the reach of children, who might place them in their mouths. 7. Do not use SCOLA CLASSMATE on airplanes or in hospitals without permission. 8. If you use the SCOLA FM system together with...
Page 19: Troubleshooting
LEd: • Check that the SCOLA CLASSMATE is turned on. • Check mains supply (power outlet). • Check that the power supply is connected to the SCOLA CLASSMATE. • (Check that you are using the correct power supply) no receiver synchronization: •...
Page 20: Warranty
WArrAnty A two-year warranty is provided. The warranty covers all material and manufacturing defects. Defects arising from improper handling or repairs carried out by an un- authorized party are not covered by this warranty.
Page 21: Specifications And Compliance
SCOLA product is in full compliance with the es- sential requirements and other relevant provisions of Directive 1999/5/EC (R&TTE directive). A declara- tion of conformity can be downloaded from the Widex homepage: www.widex.com or ordered from Widex (please see the back page).
Page 22: Statements For Use In The Usa And Canada
1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to the equipment not expressly approved by Widex may void the FCC’s au- thorization to operate the equipment.
Page 23 fCC id: brg-871T iC: 5676A-871T federal Communications Commission Statement This device may not interfere with TV reception or Federal Government radar. industry Canada Statement / déclaration d’industrie Canada Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.
Page 24 Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité...
Page 25: Regulatory Information
1999/5/EC Hereby, Widex A/S declares that this SCOLA CLASSMATE is in compliance with the essential re- quirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity according to 1999/5/EC can be found at:...
Page 26 Electrical and electronic equipment (EEE) contains materials, components and sub- stances that can be hazardous and present a risk to human health and the environment when waste electrical and electronic equip- ment (WEEE) is not handled correctly. Do not dispose of hearing aids, hearing aid accessories and batteries with ordinary household waste.
Page 27: Symbols
Symbols commonly used by Widex A/S in medical device labelling (labels/ifu/etc .) Symbol Title/description Manufacturer The product is produced by the manufacturer whose name and address are stated next to the symbol . If ap- propriate, the date of manufacture may also be stated .
Page 28 Symbol Title/description Keep dry The product must be protected from moisture and/or The product must be kept away from rain Lower limit of temperature The lowest temperature to which the product can be safely exposed . upper limit of temperature The highest temperature to which the product can be safely exposed .
Page 29 Symbol Title/description CE mark The product is in conformity with the requirements set out in European CE marking directives . Alert The product is identified by R&TTE Directive 1999/5/EC as an equipment Class 2 product with some restrictions on use in some CE member states . C-Tick mark The product complies with EMC and radio spectrum regulatory requirements for products supplied to the...
Page 32 WidEX A/S Nymoellevej 6, DK-3540 Lynge, Denmark www . w idex .com Manual no .: É[5qr0q2|g;fa;;] 9 514 0125 041 #03 issue: 2015-07 CIB281/0715...
